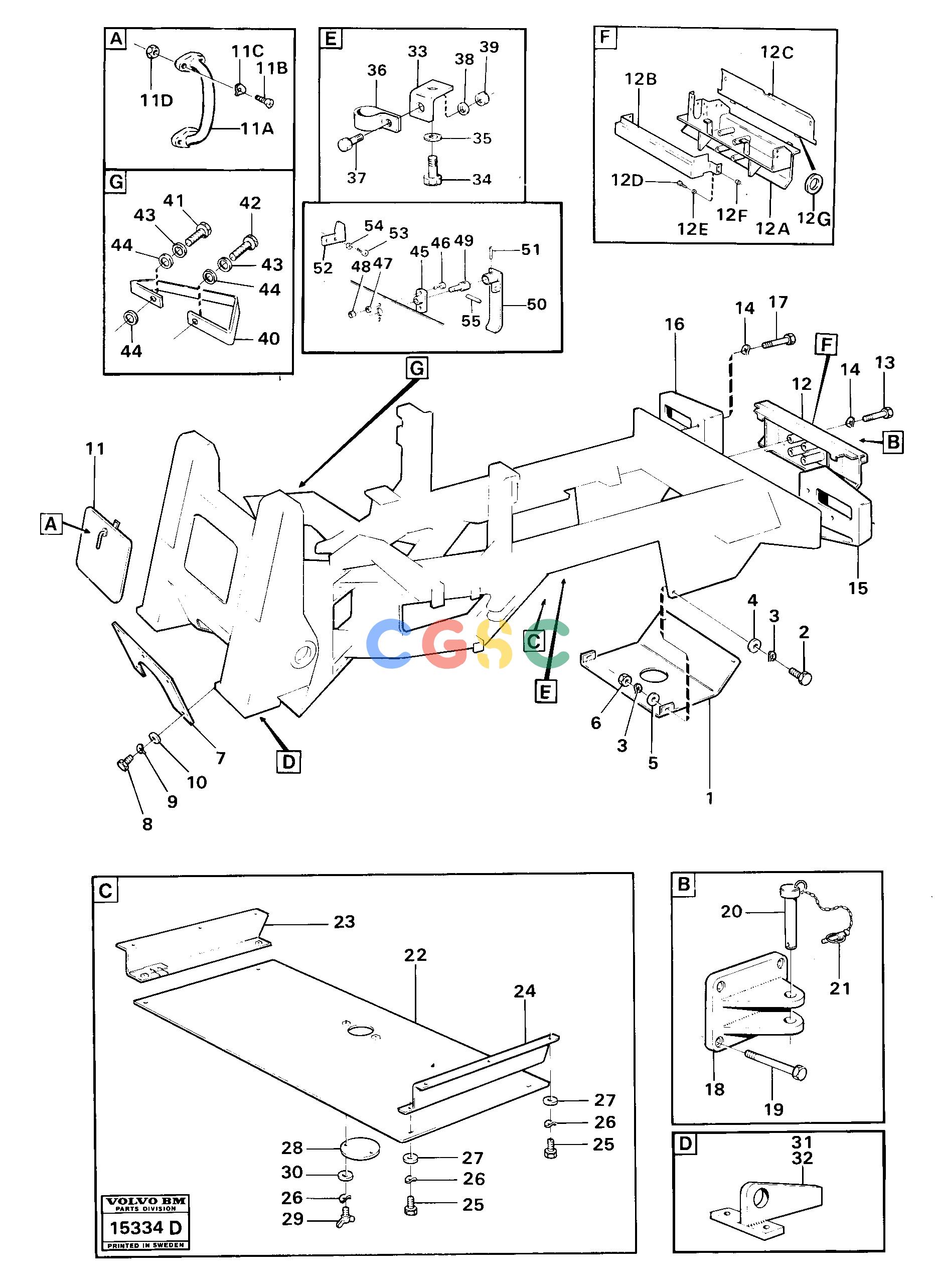

沃尔沃零件查询4300 Protector plates and loaded weights4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE13960145
|
[0004] |
Washer
|
|
| 32. |
|
[0001] |
Tow eyelet
|
H
|
| 33. |
|
[0001] |
Anchorage
|
PROD.NR 33105
|
| |
|
|
None
|
|
| 34. |
VOE13955294
|
[0001] |
Screw
|
PROD.NR 33105
|
| 35. |
VOE13941907
|
[0001] |
Washer
|
PROD.NR 33105
|
| 36. |
VOE952638
|
[0001] |
Clamp
|
PROD.NR 33105
|
| 37. |
VOE13955271
|
[0001] |
Screw
|
PROD.NR 33105
|
| 38. |
VOE13941906
|
[0001] |
Washer
|
PROD.NR 33105
|
| 39. |
VOE13955781
|
[0001] |
Nut
|
PROD.NR 33105
|
| 40. |
VOE4854504
|
[0002] |
Leaf spring
|
SER NO 3888-
|
| 5. |
VOE60110353
|
[0002] |
Washer
|
|
| 41. |
VOE970945
|
[0002] |
Hexagon screw
|
SER NO 3888-
|
| 42. |
VOE13970944
|
[0002] |
Hexagon screw
|
SER NO 3888-
|
| 43. |
VOE941908
|
[0004] |
Spring washer
|
SER NO 3888-
|
| 44. |
VOE13960143
|
[0010] |
Washer
|
SER NO 3888-
|
| 45. |
VOE4932180
|
[0001] |
Attachment
|
PROD NO 33106, 33107
|
| 46. |
VOE956314
|
[0002] |
Cross recessed sunk screw
|
PROD NO 33106, 33107
|
| 47. |
VOE13941906
|
[0002] |
Washer
|
PROD NO 33106, 33107
|
| 48. |
VOE13955781
|
[0002] |
Nut
|
PROD NO 33106, 33107
|
| 49. |
VOE4932522
|
[0001] |
Shaft
|
PROD NO 33106, 33107
|
| |
VOE1577211
|
[0002] |
Bushing
|
PROD NO 33106, 33107
|
| 6. |
VOE13971090
|
[0002] |
Lock nut
|
PROD NO 33100,33105
|
| 50. |
VOE4932178
|
[0001] |
Handle
|
PROD NO 33106, 33107
|
| 51. |
VOE13951965
|
[0001] |
Spring pin
|
PROD NO 33106, 33107
|
| 52. |
VOE4932523
|
[0001] |
Lock fitting
|
PROD NO 33106, 33107
|
| 53. |
VOE13955295
|
[0002] |
Screw
|
PROD NO 33106, 33107
|
| 54. |
VOE13960141
|
[0002] |
Washer
|
PROD NO 33106, 33107
|
| 55. |
VOE951994
|
[0001] |
Spring pin
|
PROD NO 33106, 33107
|
| |
VOE13971072
|
[0002] |
Hexagon nut
|
PROD NO 33106,33107
|
| 7. |
VOE4926974
|
[0001] |
Protecting plate
|
PROD NO 33100, 33105
|
| |
VOE4929743
|
[0001] |
Protecting plate
|
PROD NO 33106, 33107
|
| 1. |
VOE4740559
|
[0001] |
Protecting plate
|
PROD NO 33100,33105
|
| 8. |
VOE955297
|
[0005] |
Hexagon screw
|
|
| 9. |
VOE13941907
|
[0005] |
Washer
|
|
| 10. |
VOE13955894
|
[0005] |
Washer
|
|
| 11. |
VOE4926968
|
[0001] |
Hatch
|
|
| 11A. |
VOE795451
|
[0001] |
Handle
|
|
| 11B. |
VOE956164
|
[0004] |
Cross recessed sunk screw
|
|
| 11C. |
VOE13941904
|
[0004] |
Washer
|
|
| 11D. |
VOE955779
|
[0004] |
Hexagon nut
|
|
| 12. |
VOE4925055
|
[0001] |
Load weight
|
PROD NO 33100, 33105.
|
| 12A. |
|
[0001] |
Load weight
|
PROD NO 33106, 33107.
|
| |
VOE4929666
|
[0001] |
Protecting plate
|
PROD NO 33106,33107
|
| |
|
|
None
|
|
| 12B. |
|
[0001] |
Box
|
PROD NO 33106, 33107.
|
| |
|
|
None
|
|
| 12C. |
VOE4932525
|
[0001] |
Hatch
|
PROD NO 33106, 33107.
|
| 12D. |
VOE13955294
|
[4] |
Screw
|
PROD NO 33106, 33107.
|
| 12E. |
VOE13960141
|
[4] |
Washer
|
PROD NO 33106, 33107.
|
| 12F. |
VOE946035
|
[4] |
Lock nut
|
PROD NO 33106, 33107.
|
| 12G. |
VOE4936344
|
[2] |
Washer
|
SER NO 4747 -
|
| 13. |
VOE13955378
|
[4] |
Screw
|
|
| 14. |
VOE941912
|
[10] |
Spring washer
|
|
| 15. |
VOE4925058
|
[1] |
Counterweight
|
V
|
| 2. |
VOE13970972
|
[0004] |
Hexagon screw
|
|
| 16. |
VOE4925059
|
[0001] |
Counterweight
|
H
|
| 17. |
VOE955364
|
[0006] |
Hexagon screw
|
|
| 18. |
VOE4739905
|
[0001] |
Rear hitch
|
|
| 19. |
VOE955380
|
[0004] |
Hexagon screw
|
|
| 20. |
VOE4711956
|
[0001] |
Towing pin
|
|
| 21. |
VOE729895
|
[0001] |
Lock Spring
|
|
| 22. |
VOE4928635
|
[0001] |
Plate
|
|
| 23. |
VOE4932560
|
[0001] |
Plate
|
V
|
| 24. |
VOE4932558
|
[0001] |
Plate
|
H
|
| 25. |
VOE13955294
|
[0010] |
Screw
|
SER NO -3367
|
| 3. |
VOE940280
|
[0006] |
Spring washer
|
|
| |
VOE13955294
|
[0008] |
Screw
|
SER NO 3368 -
|
| 26. |
VOE13941907
|
[0012] |
Washer
|
SER NO -3367
|
| |
VOE13941907
|
[0010] |
Washer
|
SER NO 3368 -
|
| 27. |
VOE13955894
|
[0010] |
Washer
|
SER NO -1502
|
| |
VOE13960141
|
[0010] |
Washer
|
SER NO 1503 - 3367
|
| |
VOE13960141
|
[0008] |
Washer
|
SER NO 3368-
|
| 28. |
VOE4927559
|
[0001] |
Hatch
|
|
| 29. |
VOE13965044
|
[0002] |
Wing screw
|
|
| 30. |
VOE13955894
|
[0002] |
Washer
|
|
| 31. |
|
[0001] |
Tow eyelet
|
V
|
