沃尔沃零件查询4300 Steering system prod nr 33100, 331054300 NoneNoneNoneAutodata Volvo online

广数供应链运营团队, 14 02月, 2025,浏览:

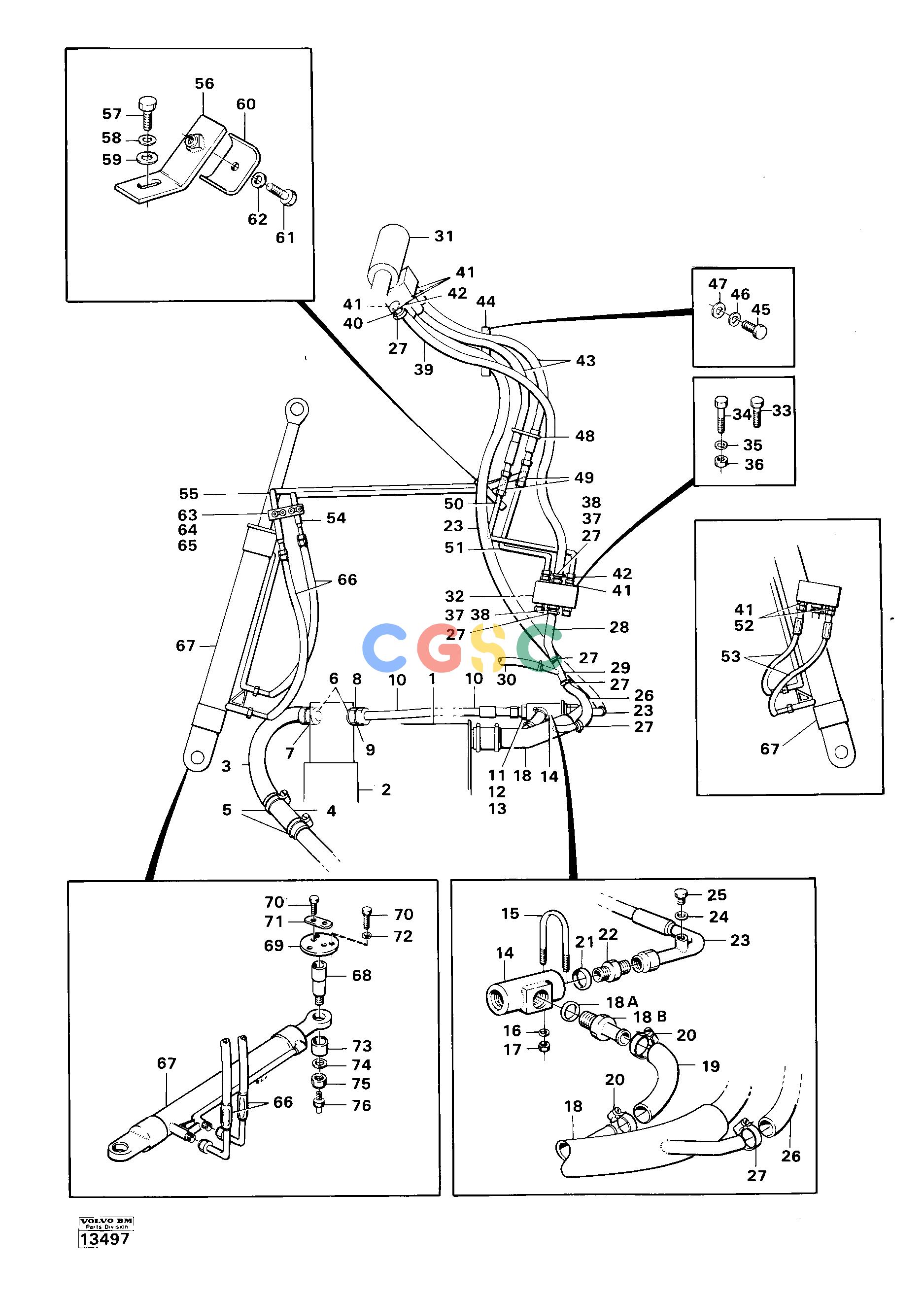

Pos. Part No Qty Parts name Comments
5.   VOE943475   [2]   Hose clamp
43.   VOE931771   [0002]   Hose assembly
    VOE990739   [0001]   O-ring
44.   VOE4763759   [0001]   Retainer
45.   VOE940199   [0002]   Hexagon screw
46.   VOE13941907   [0002]   Washer
47.   VOE13955894   [0002]   Washer
48.   VOE4881440   [0001]   Cable tie
49.   VOE957126   [0002]   T-nipple
50.   VOE4927580   [0001]   Tube
51.   VOE4927578   [0001]   Tube
52.   VOE957032   [0002]   Nipple
6.   VOE14013071   [2]   Sealing washer
53.   VOE931620   [0002]   Hose assembly
    VOE990738   [0002]   O-ring
54.   VOE4763753   [0001]   Tube
55.   VOE4763751   [0001]   Tube
56.   VOE4763745   [0001]   Anchorage
57.   VOE970945   [0001]   Hexagon screw
58.   VOE941908   [0001]   Spring washer
59.   VOE976945   [0001]   Washer
60.       [0001]   Clamp
61.   VOE60111880   [0001]   Hexagon screw
62.   VOE13941907   [0001]   Washer
7.   VOE957037   [1]   Nipple   SER NO -1142
63.   VOE4762999   [0002]   Clamp
64.   VOE13941906   [0004]   Washer
    VOE955892   [0004]   Plain washer   SER NO 1113-
65.   VOE13955781   [0004]   Nut
66.   VOE931616   [0002]   Hose assembly
    VOE990738   [1]   O-ring
67.   VOE4739055   [2]   Hydraulic cylinder
68.   VOE4926469   [4]   Pin
69.   VOE4740397   [4]   Washer
70.   VOE13955295   [20]   Screw
71.   VOE4740433   [4]   Lock washer
    VOE944041   [1]   Nipple   SER NO 1143-
72.   VOE13941907   [12]   Washer
73.   VOE4740399   [0004]   Bushing
74.   VOE955903   [0004]   Plain washer
75.   VOE963111   [0004]   Lock nut
76.   VOE914167   [0004]   Lubricating nipple
8.   VOE784531   [1]   Bushing
1.       [1]   Tank
9.   VOE957190   [1]   Gasket   SER NO -1142
            None
    VOE14013070   [1]   Sealing washer   SER NO 1143-
10.   VOE13931701   [1]   Hose assembly
    VOE4880494   [1]   O-ring
11.   VOE958228   [1]   O-ring
12.   VOE14013070   [1]   Sealing washer
13.   VOE957035   [1]   Nipple
14.   VOE4786308   [1]   Volume control valve
15.   VOE4760181   [1]   Clamp
16.   VOE13941907   [1]   Washer
17.   VOE955782   [1]   Hexagon nut
2.       [1]   Fuel filling pump   SEE GROUP 91
18.       [1]   Pipe
            None
18A.   VOE930014   [1]   Nipple
18B.   VOE958228   [1]   O-ring
19.   VOE941799   [1]   Hose
20.   VOE943475   [2]   Hose clamp
21.   VOE958228   [0001]   O-ring
22.   VOE926812   [0001]   Nipple
23.   VOE4763756   [0001]   Hose assembly
24.   VOE958225   [0001]   O-ring   SER NO -1125
25.   VOE941371   [0001]   Plug   SER NO -1125
3.   VOE4739591   [1]   Intake pipe
    VOE930032   [1]   Testing nipple   SER NO 1126-
26.   VOE14016472   [1]   Oil hose
27.   VOE13943474   [6]   Hose clamp
28.   VOE14016472   [1]   Oil hose
29.   VOE4927195   [1]   Tube
30.       [1]   Hose   SEE GROUP 91
31.       [1]   Steering column
32.   VOE4824012   [1]   Valve
33.   VOE941762   [2]   Hex. socket screw   L=55
34.   VOE959233   [1]   Allen Hd Screw   L=80
4.   VOE943826   [1]   Hose
35.   VOE13941907   [3]   Washer
36.   VOE955782   [3]   Hexagon nut
37.   VOE928959   [2]   Nipple
38.   VOE958228   [2]   O-ring
39.   VOE14016472   [0001]   Oil hose
40.   VOE930008   [0001]   Nipple
41.   VOE958227   [0008]   O-ring
42.   VOE957033   [0003]   Nipple
