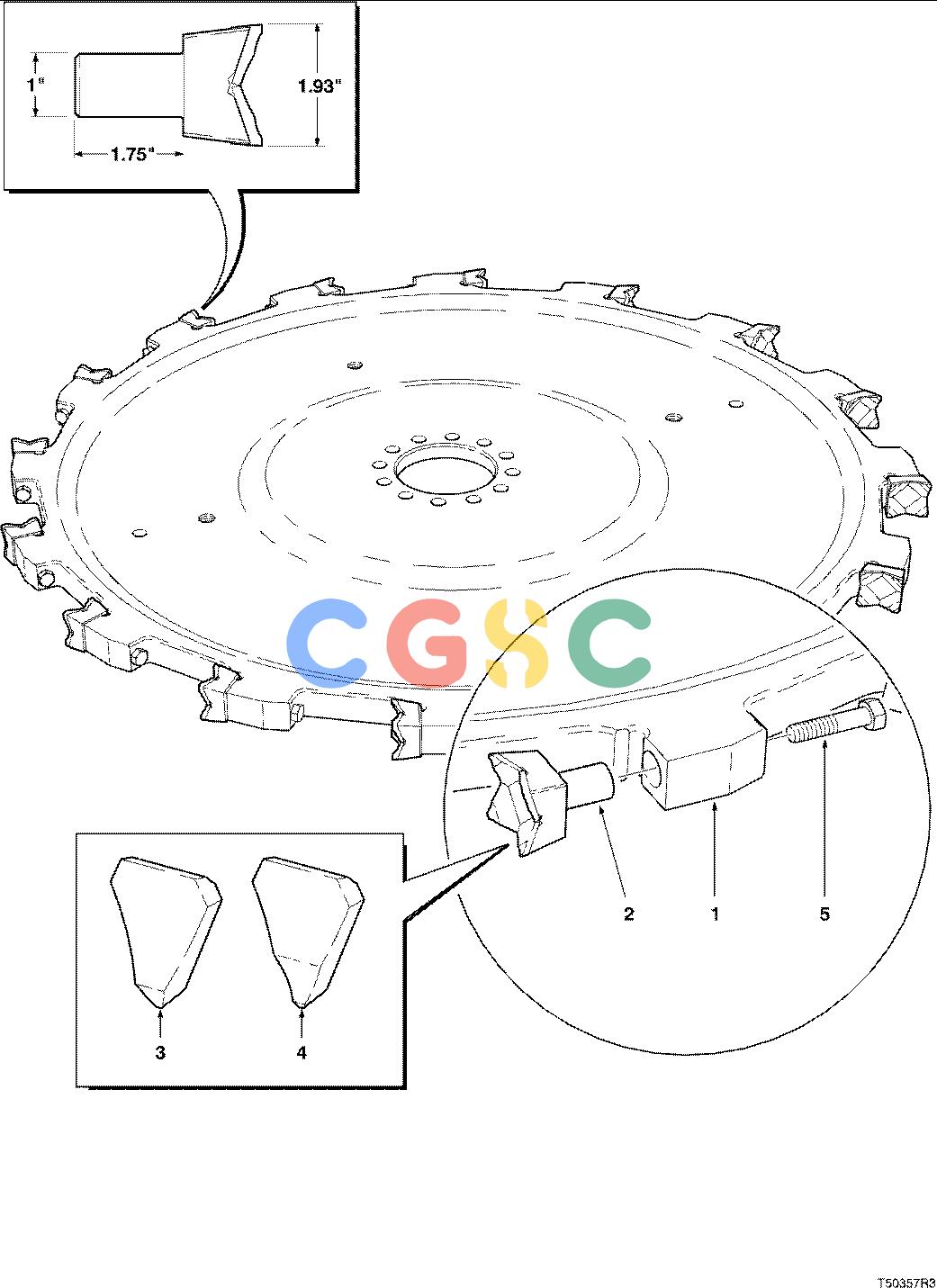

约翰迪尔零件查询22``STD - ATTACHMENTS DISC BLADE 22`` HEAD SERIES 4000NK CARBIDE ( 65001 - ) 4544-034/10 [4544-034/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
-------
|
[1] |
BLADE - W/SQUARE CORNERED TEETH
|
|
| |
F285542
|
[1] |
BLADE - W/SHARP CORNERED TEETH
|
|
| 1. |
701365700
|
[1] |
DISC -
|
|
| 2. |
F285527
|
[18] |
TOOTH - W/SQUARE CORNERED TIPS
|
|
| |
F285529
|
[18] |
TOOTH - W/SHARP CORNERED TIPS
|
|
| 3. |
-------
|
[4] |
TIP - CARBIDE - SQUARE CORNERED
|
|
| 4. |
-------
|
[4] |
TIP - CARBIDE - SHARP CORNERED
|
|
| 5. |
810079600
|
[18] |
BOLT*1/2-20UNFX2-1/4 -
|
|
| 6. |
F296339
|
[1] |
GAUGE -
|
|
| 7. |
F122743
|
[1] |
RING -
|
|
| 8. |
F296025
|
[1] |
TOOL -
|
|
| 9. |
F296341
|
[1] |
TAG -
|
|
