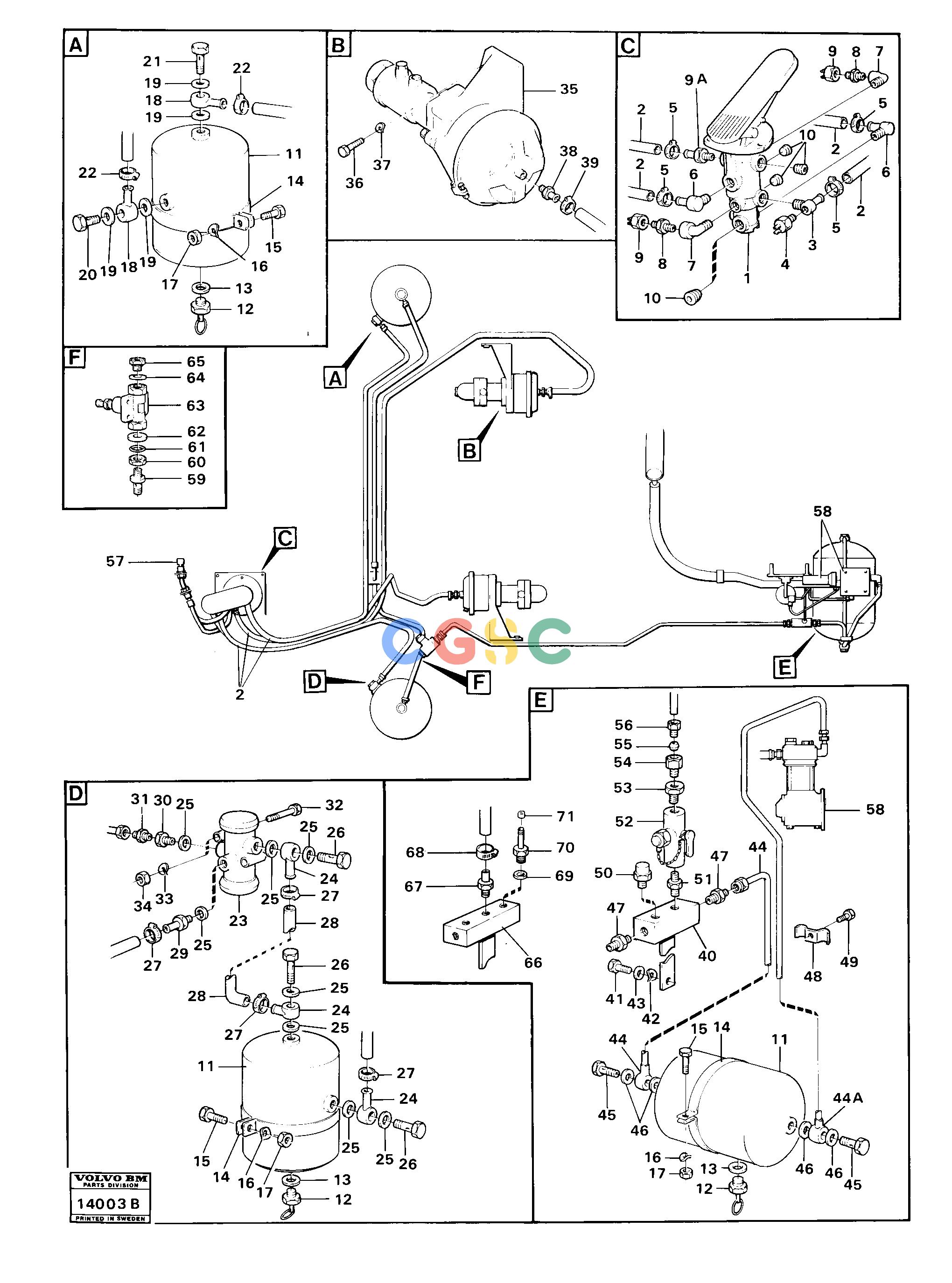

沃尔沃零件查询4300 Components with fitting parts4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13943474
|
[0004] |
Hose clamp
|
|
| 50. |
VOE1504584
|
[1] |
Valve
|
|
| 51. |
VOE943643
|
[1] |
Joint nipple
|
|
| 52. |
VOE7326980
|
[1] |
Valve
|
SER NO -3100
|
| 53. |
VOE784513
|
[1] |
Reduction
|
SER NO -3100
|
| 54. |
VOE326643
|
[1] |
Fitting
|
SER NO -3100
|
| 55. |
VOE954363
|
[1] |
Olive
|
|
| 56. |
VOE4786206
|
[1] |
Fitting
|
SER NO -3100
|
| 57. |
|
|
Instruments
|
|
| |
|
|
None
|
|
| 58. |
|
|
Compressor
|
|
| 59. |
VOE4929408
|
[1] |
Hollow screw
|
SER NO 2117-
|
| 6. |
VOE961603
|
[0002] |
Elbow nipple
|
|
| 60. |
VOE957020
|
[1] |
Hexagon nut
|
SER NO 2117-
|
| 61. |
VOE6238998
|
[0001] |
O-ring
|
SER NO 2117-
|
| 62. |
VOE6644399
|
[0001] |
Back-up ring
|
SER NO 2117-
|
| 63. |
VOE1134344
|
[0001] |
Overflow valve
|
SER NO 2117-
|
| 64. |
VOE957185
|
[0001] |
Gasket
|
SER NO 2117-
|
| 65. |
VOE4929410
|
[0001] |
Nipple
|
SER NO 2117-
|
| 66. |
VOE4932590
|
[1] |
Retainer
|
SER NO 3101-
|
| 67. |
VOE7180003
|
[2] |
Hose nipple
|
SER NO 3101-
|
| 68. |
VOE943469
|
[2] |
Hose clamp
|
SER NO 3101-
|
| 69. |
VOE13947281
|
[1] |
Gasket
|
SER NO 3101-
|
| 7. |
VOE180240
|
[0002] |
Nipple
|
|
| 70. |
VOE1505058
|
[1] |
Air supply nipple
|
SER NO 3101-
|
| 71. |
VOE6854661
|
[1] |
Cap
|
SER NO 3101-
|
| 8. |
VOE7016286
|
[0002] |
Nipple
|
|
| 9. |
VOE3092454
|
[0002] |
Contact
|
|
| 9A. |
VOE961653
|
[0001] |
Nipple
|
|
| 1. |
|
[0001] |
Brake valve
|
|
| 10. |
VOE952076
|
[0004] |
Plug
|
|
| 11. |
VOE11023848
|
[0003] |
Cprs Air Tank
|
|
| |
VOE11023848
|
[0003] |
Cprs Air Tank
|
|
| 12. |
VOE1581425
|
[0003] |
Draining valve
|
|
| 13. |
VOE13947627
|
[0003] |
Plane gasket
|
|
| 14. |
VOE748171
|
[0003] |
Tensioning band
|
|
| 15. |
VOE955299
|
[0003] |
Hexagon screw
|
|
| 16. |
VOE13941907
|
[0003] |
Washer
|
|
| 17. |
VOE955782
|
[0003] |
Hexagon nut
|
|
| 18. |
VOE926337
|
[0002] |
Banjo nipple
|
|
| 19. |
VOE957185
|
[0004] |
Gasket
|
|
| 2. |
|
[REQ] |
Hose
|
|
| 20. |
VOE191157
|
[0001] |
Hollow screw
|
|
| 21. |
VOE926308
|
[0001] |
Hollow screw
|
|
| 22. |
VOE13943474
|
[0002] |
Hose clamp
|
|
| 23. |
VOE4881396
|
[0001] |
Protecting valve
|
|
| 24. |
VOE926337
|
[0003] |
Banjo nipple
|
|
| 25. |
VOE957185
|
[0008] |
Gasket
|
|
| 26. |
VOE191157
|
[0003] |
Hollow screw
|
|
| 27. |
VOE13943474
|
[0004] |
Hose clamp
|
|
| 28. |
VOE928948
|
[0350] |
Hose
|
|
| 29. |
VOE13949446
|
[0001] |
Nipple
|
|
| 3. |
VOE7192531
|
[0001] |
Nipple
|
|
| 30. |
VOE784515
|
[0001] |
Reduction
|
|
| 31. |
VOE941750
|
[0001] |
Nipple
|
|
| 32. |
VOE955303
|
[0002] |
Hexagon screw
|
|
| 33. |
VOE13941907
|
[0002] |
Washer
|
|
| 34. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 35. |
|
[2] |
Brake Unit
|
|
| 36. |
VOE13970947
|
[4] |
Hexagon screw
|
|
| 37. |
VOE941908
|
[4] |
Spring washer
|
|
| 38. |
VOE7637561
|
[2] |
Hose nipple
|
|
| 39. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 4. |
VOE11039009
|
[0001] |
Pressure switch
|
PROD NO 33101,
|
| 40. |
VOE4749134
|
[1] |
Distribution pipe
|
SER NO -3100
|
| |
|
|
None
|
|
| 41. |
VOE13955295
|
[1] |
Screw
|
|
| 42. |
VOE13941907
|
[1] |
Washer
|
|
| 43. |
VOE13955894
|
[1] |
Washer
|
|
| 44. |
VOE4927490
|
[1] |
Tube
|
|
| 44A. |
VOE4927485
|
[1] |
Tube
|
|
| |
VOE4880536
|
[0001] |
Pressure sensor
|
PROD 33104
|
| 45. |
VOE191157
|
[2] |
Hollow screw
|
|
| 46. |
VOE957185
|
[4] |
Gasket
|
|
| 47. |
VOE941750
|
[2] |
Nipple
|
|
| 48. |
VOE7402404
|
[1] |
Clamp
|
SER NO -3100
|
| 49. |
VOE13955295
|
[1] |
Screw
|
|
