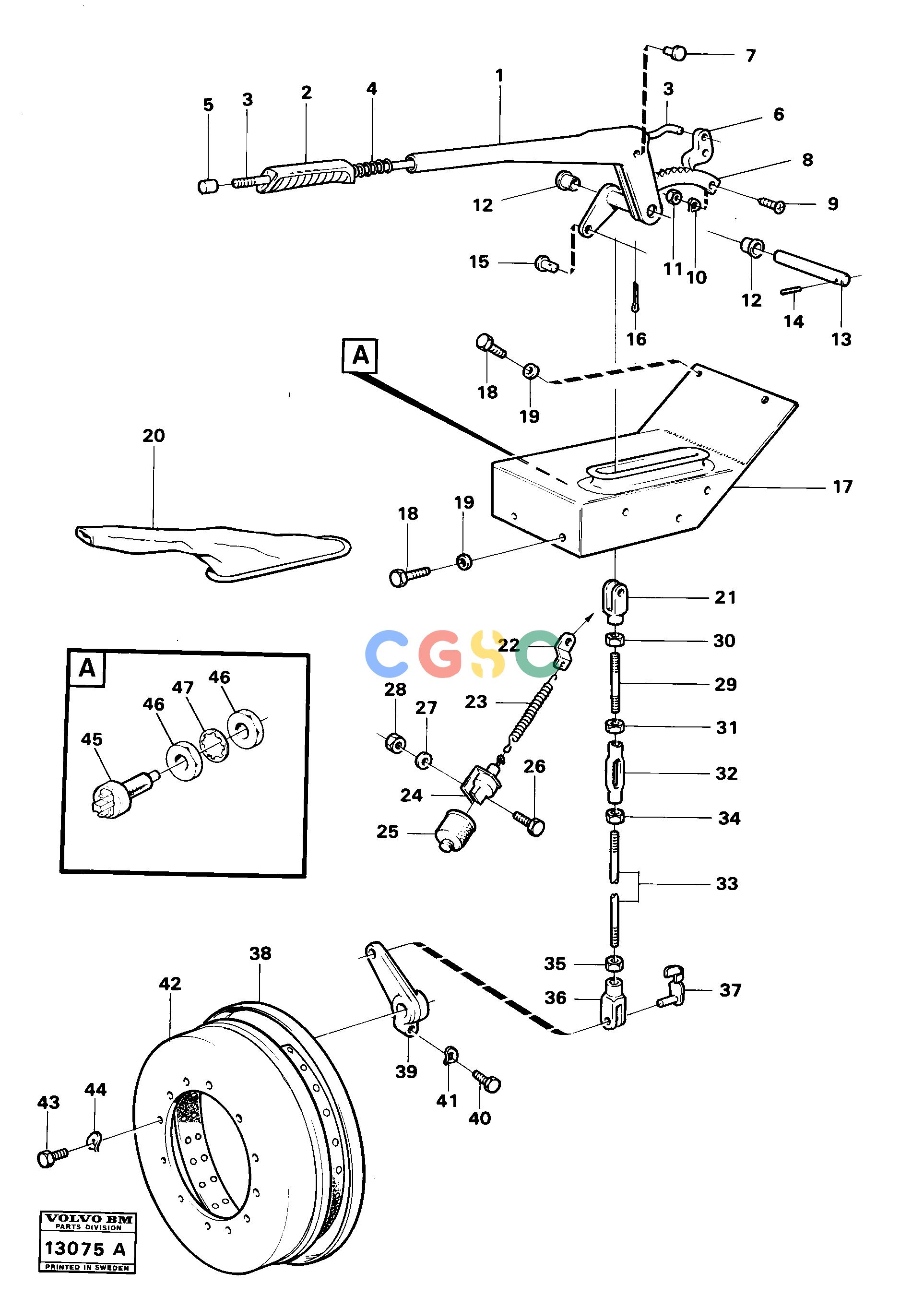

沃尔沃零件查询4300 Hand brake4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE654980
|
[0001] |
Button
|
|
| 6. |
VOE4830965
|
[0001] |
Pawl
|
|
| 7. |
VOE7190848
|
[0001] |
Rivet
|
|
| 8. |
VOE4830967
|
[0001] |
Quadrant
|
|
| 9. |
VOE956231
|
[0002] |
Cross recessed sunk screw
|
|
| 1. |
VOE4760790
|
[0001] |
Handbrake lever
|
|
| 10. |
VOE13941907
|
[0002] |
Washer
|
|
| 11. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 12. |
VOE1588548
|
[0002] |
Bushing
|
|
| 13. |
VOE4746682
|
[0001] |
Shaft
|
|
| 14. |
VOE951945
|
[0001] |
Spring pin
|
|
| 15. |
VOE913124
|
[0001] |
Clevis pin
|
|
| 16. |
VOE907822
|
[0001] |
Split pin
|
|
| 17. |
|
[0001] |
Bracket
|
|
| 18. |
VOE13955295
|
[0003] |
Screw
|
|
| 19. |
VOE976945
|
[0003] |
Washer
|
|
| 2. |
VOE7675916
|
[0001] |
Handle
|
|
| 20. |
VOE4947135
|
[0001] |
Boot
|
|
| 21. |
VOE13955192
|
[0001] |
Fork
|
|
| 22. |
VOE4739927
|
[0001] |
Spring retainer
|
|
| 23. |
VOE767269
|
[0001] |
Spring
|
|
| 24. |
VOE7233623
|
[0001] |
Switch
|
|
| 25. |
VOE243002
|
[0001] |
Bellows
|
|
| 26. |
VOE13955271
|
[0001] |
Screw
|
|
| 27. |
VOE955892
|
[0001] |
Plain washer
|
|
| 28. |
VOE13955781
|
[0001] |
Nut
|
|
| 29. |
VOE4739928
|
[0001] |
Pull rod
|
|
| 3. |
VOE7653465
|
[0001] |
Push Rod
|
|
| 30. |
VOE955800
|
[0001] |
Hexagon nut
|
|
| 31. |
VOE955801
|
[0001] |
Hexagon nut
|
|
| 32. |
VOE7005568
|
[0001] |
Socket
|
|
| 33. |
VOE4928282
|
[0001] |
Pull rod
|
|
| 34. |
VOE7150108
|
[0001] |
Nut
|
|
| 35. |
VOE955801
|
[0001] |
Hexagon nut
|
|
| 36. |
VOE955193
|
[0001] |
Yoke
|
|
| 37. |
VOE13961789
|
[0001] |
Yoke Bolt
|
|
| 38. |
|
[0001] |
Brake
|
|
| |
|
|
None
|
|
| 4. |
VOE659603
|
[0001] |
Spring
|
|
| 39. |
VOE4787611
|
[0001] |
Lever
|
|
| 40. |
VOE13970948
|
[0001] |
Hexagon screw
|
|
| 41. |
VOE941908
|
[0001] |
Spring washer
|
|
| 42. |
VOE4786640
|
[1] |
Brake drum
|
|
| 43. |
VOE13970969
|
[12] |
Hexagon screw
|
|
| 44. |
VOE940280
|
[12] |
Spring washer
|
|
| 45. |
VOE3544691
|
[1] |
Brake light switch
|
|
| 46. |
VOE13942914
|
[2] |
Nut
|
|
| 47. |
VOE13940143
|
[1] |
Lock washer
|
|
