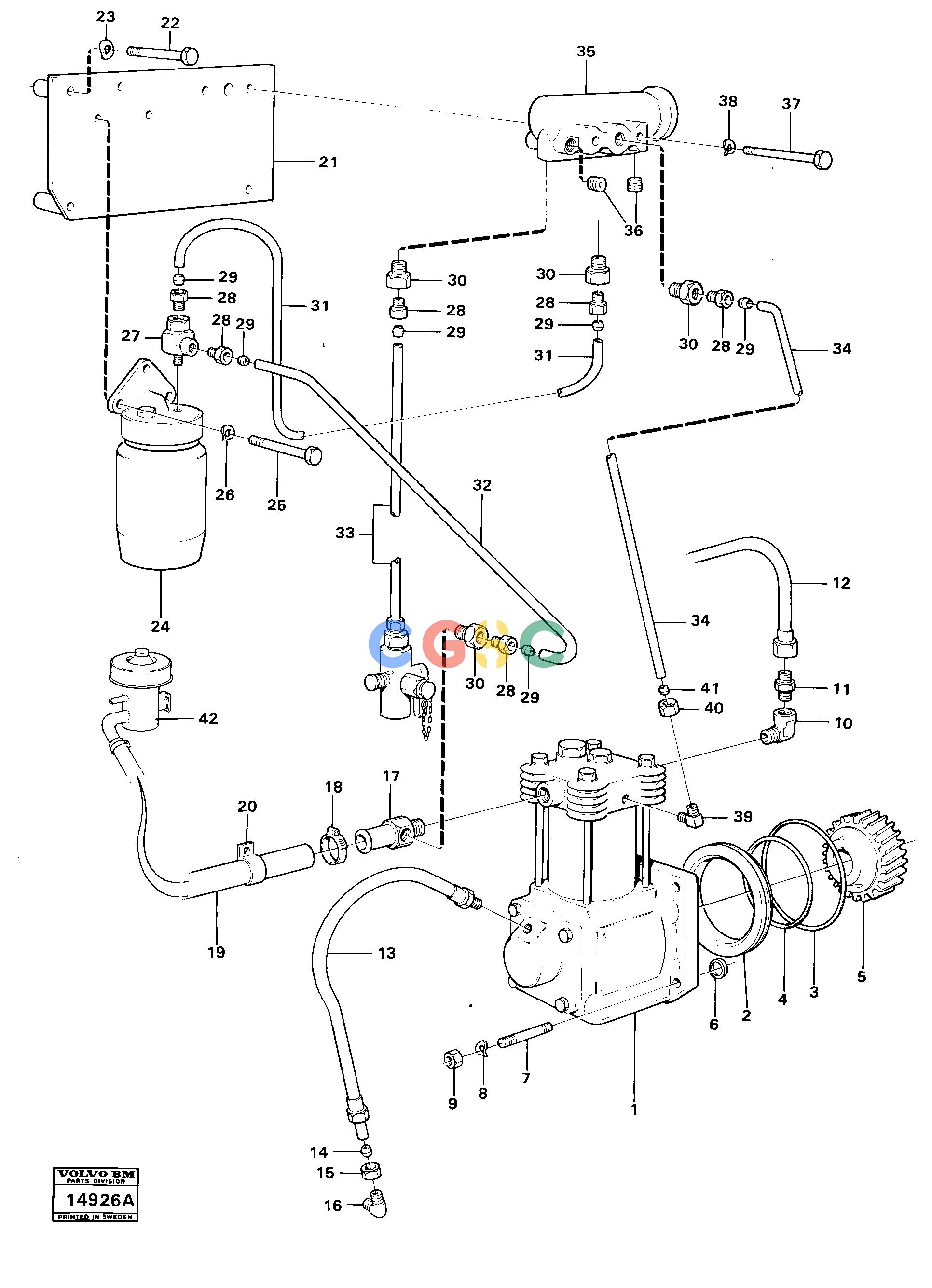

沃尔沃零件查询4300 Air-compressor with fitting parts4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11003423
|
[1] |
Compressor
|
|
| 2. |
VOE787760
|
[1] |
Guide lug
|
|
| 3. |
VOE925259
|
[1] |
O-ring
|
|
| 4. |
VOE925257
|
[1] |
O-ring
|
|
| 5. |
VOE787770
|
[1] |
Gear
|
|
| 6. |
VOE787973
|
[1] |
Sealing ring
|
|
| 7. |
VOE953263
|
[3] |
Stud
|
3/8 UNC
|
| |
VOE953243
|
[0001] |
Stud
|
5/16 UNC
|
| 8. |
VOE13942336
|
[0003] |
Spring washer
|
|
| |
VOE13941907
|
[0001] |
Washer
|
|
| 9. |
VOE13955827
|
[0003] |
Nut
|
|
| |
VOE955826
|
[0001] |
Hexagon nut
|
|
| 10. |
VOE787959
|
[0001] |
Elbow nipple
|
|
| 11. |
VOE941750
|
[0001] |
Nipple
|
|
| 12. |
|
[0001] |
Pipe
|
|
| 13. |
VOE786804
|
[0001] |
Low pressure hose
|
|
| 14. |
VOE954364
|
[0001] |
Ferrule
|
|
| 15. |
VOE954356
|
[0001] |
Fitting nut
|
|
| 16. |
VOE954385
|
[0001] |
Elbow nipple
|
|
| 17. |
VOE787932
|
[0001] |
Nipple
|
|
| 18. |
VOE13943474
|
[0002] |
Hose clamp
|
|
| 19. |
VOE190993
|
[REQ] |
Hose
|
|
| |
|
|
None
|
L=540 SER NO - 4513
|
| |
VOE192358
|
[REQ] |
Rubber hose
|
L=575 SER NO 4514 -
|
| 20. |
VOE7121557
|
[0001] |
Clamp
|
|
| 21. |
VOE4926734
|
[0001] |
Engine anchorage
|
|
| 22. |
VOE955532
|
[0003] |
Hexagon screw
|
|
| 23. |
VOE13941907
|
[0003] |
Washer
|
|
| 24. |
VOE335404
|
[0001] |
Reservoir
|
|
| 25. |
VOE13955271
|
[0003] |
Screw
|
|
| 26. |
VOE13941906
|
[0003] |
Washer
|
|
| 27. |
VOE4785836
|
[0001] |
Non-return valve
|
|
| 28. |
VOE4786206
|
[0006] |
Fitting
|
|
| 29. |
VOE954363
|
[0006] |
Olive
|
|
| 30. |
VOE326643
|
[0004] |
Fitting
|
|
| 31. |
VOE4926767
|
[0001] |
Tube
|
|
| 32. |
VOE4926768
|
[0001] |
Tube
|
|
| 33. |
VOE4926769
|
[0001] |
Tube
|
TILLV.NR-3103
|
| |
VOE6225917
|
[REQ] |
Plastic pipe
|
SER NO 3104-3607
|
| |
VOE961188
|
[REQ] |
Hose
|
TILLV. NR 3608-
|
| 34. |
VOE8101043
|
[0001] |
Bundy pipe
|
|
| 35. |
VOE1503492
|
[0001] |
Regulator
|
|
| 36. |
VOE7016325
|
[0004] |
Plug
|
SER NO -1352
|
| |
VOE7016325
|
[0003] |
Plug
|
SER NO 1353-
|
| 37. |
VOE955282
|
[0002] |
Hexagon screw
|
|
| 38. |
VOE13941906
|
[0002] |
Washer
|
|
| 39. |
VOE954384
|
[0001] |
Elbow nipple
|
|
| 40. |
VOE954363
|
[0001] |
Olive
|
|
| 41. |
VOE954348
|
[0001] |
Nut
|
|
| 42. |
|
[0001] |
Filter
|
|
