沃尔沃零件查询4300 Driveshafts with assembly parts4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025,浏览:次

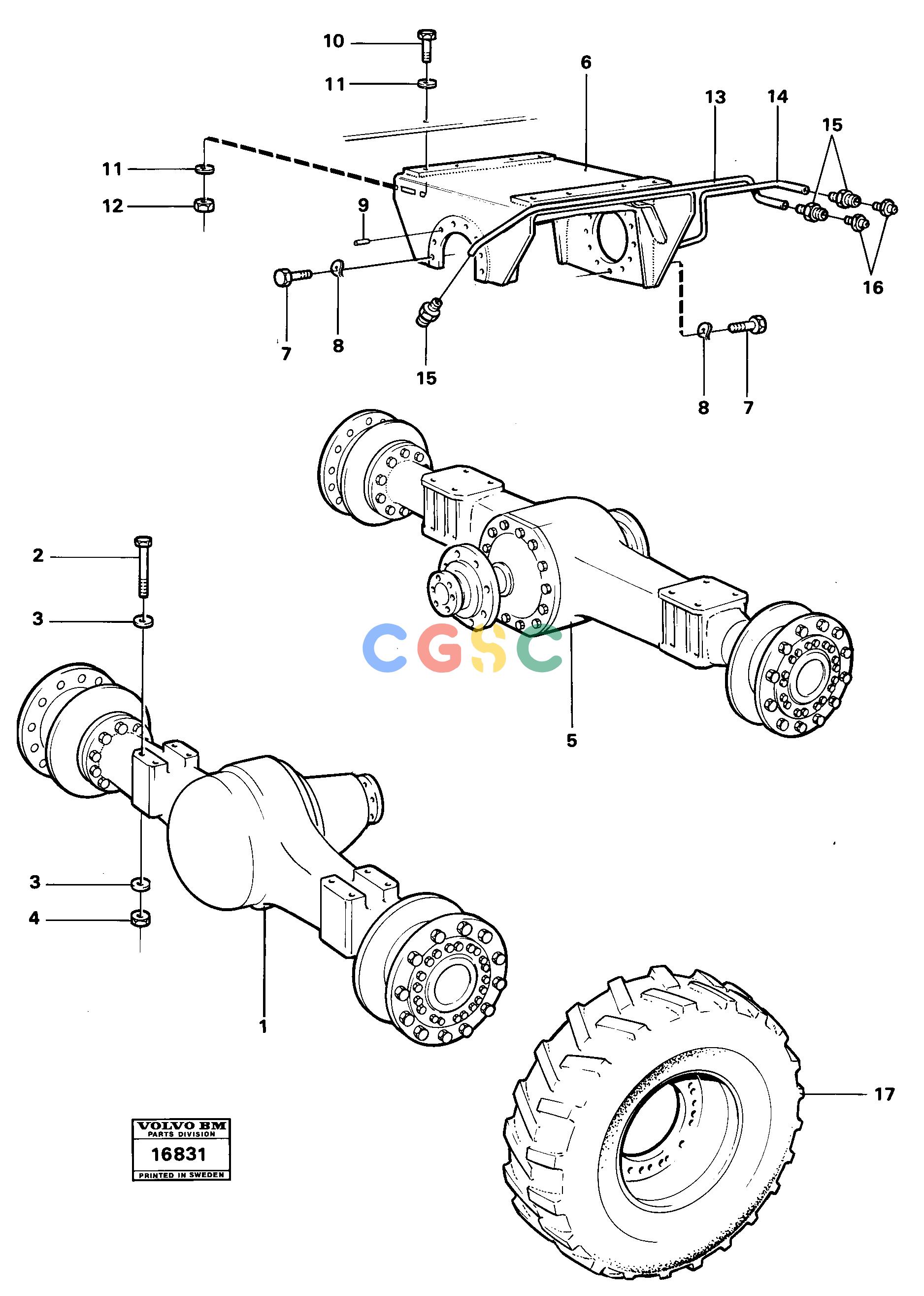

Pos. |
Part No |
Qty |
Parts name |
Comments |
2. |
VOE4854097
|
[8] |
Screw
|
PROD NO 33100,33105
|
|
VOE4854910
|
[8] |
Screw
|
PROD NO 33106, 33107
|
3. |
VOE13930885
|
[16] |
Washer
|
|
4. |
VOE949732
|
[8] |
Hexagon nut
|
|
1. |
VOE23507
|
[1] |
Front shaft
|
|
5. |
VOE23506
|
[1] |
Planetary axle
|
|
|
|
|
None
|
|
|
VOE23522
|
[1] |
Planet Shaft
|
|
|
|
|
None
|
|
6. |
VOE4739410
|
[1] |
Cover
|
SER NO -1172
|
|
VOE4850281
|
[1] |
Sweep
|
SER NO 1173-
|
|
VOE4854085
|
[0001] |
R Axle Mounting
|
PROD NO 33106, 33107.
|
7. |
VOE13955366
|
[0020] |
Screw
|
|
8. |
VOE941912
|
[0020] |
Spring washer
|
|
9. |
VOE950681
|
[1] |
Pin
|
SER NO -1412
|
|
|
|
None
|
|
10. |
VOE963342
|
[8] |
Hexagon screw
|
|
11. |
VOE955903
|
[16] |
Plain washer
|
|
12. |
VOE13961996
|
[8] |
Nut
|
|
13. |
VOE4932231
|
[1] |
Lubricant line
|
|
14. |
VOE4932230
|
[1] |
Lubricant line
|
|
15. |
VOE946089
|
[4] |
Nipple
|
|
16. |
VOE914167
|
[2] |
Lubricating nipple
|
|
17. |
|
[4] |
Wheels
|
|
|
VOE23514
|
[1] |
Front shaft
|
|
|
|
|
None
|
|
