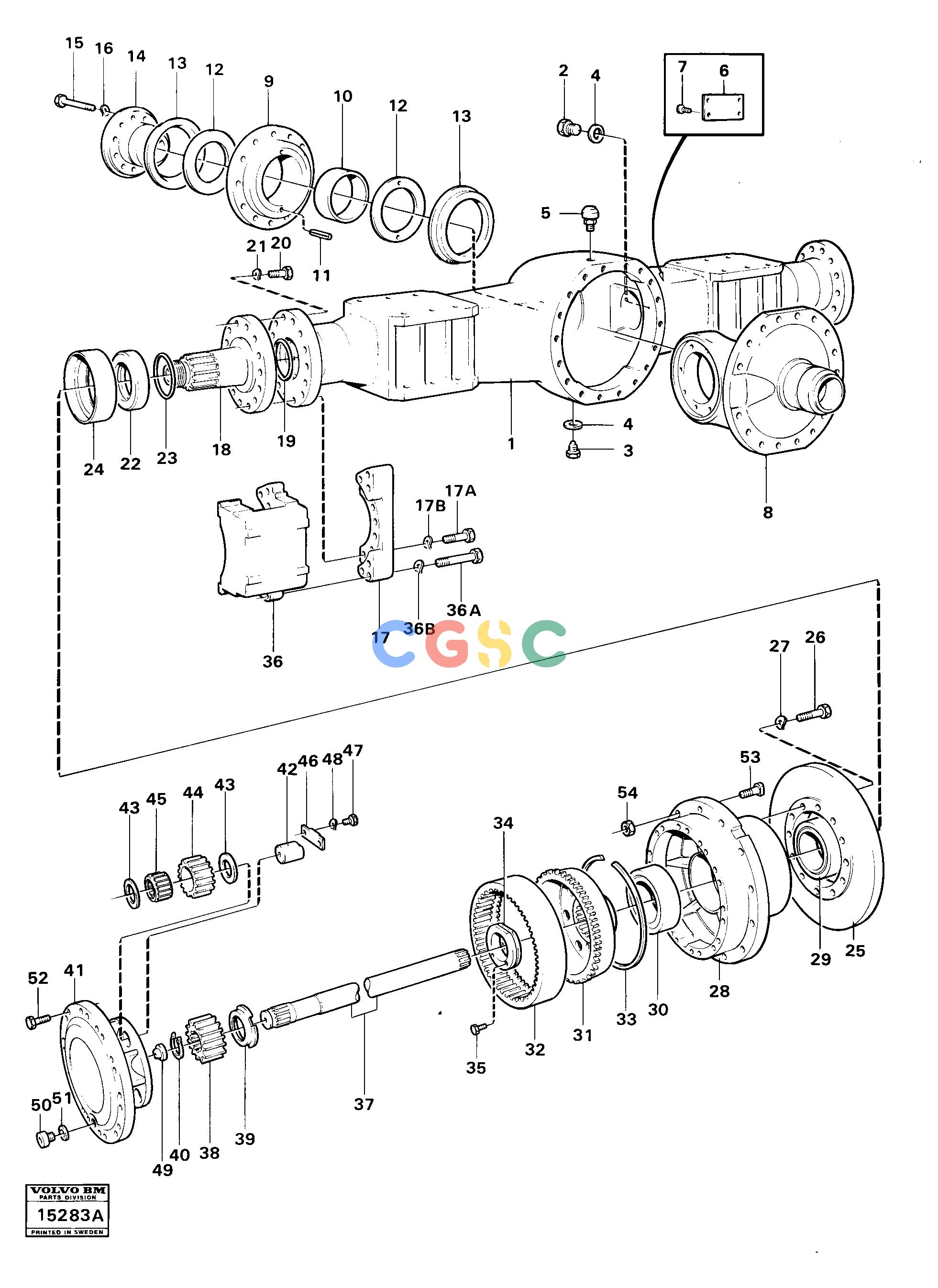

沃尔沃零件查询4300 Drive axle, rear prod nr 235224300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE384555
|
[0001] |
Air vent valve
|
|
| 44. |
VOE4717039
|
[6] |
Planet gear
|
|
| 45. |
VOE4717063
|
[6] |
Needle bearing
|
|
| 46. |
VOE4717555
|
[6] |
Striker plate
|
|
| 47. |
VOE13955295
|
[12] |
Screw
|
|
| 48. |
VOE13941907
|
[12] |
Washer
|
|
| 49. |
VOE4717045
|
[2] |
Wearing Pin
|
|
| 50. |
VOE11034156
|
[4] |
Plug
|
|
| 51. |
VOE13947628
|
[0004] |
Plane gasket
|
AX-1876
|
| |
VOE958228
|
[0004] |
O-ring
|
AX 1877-
|
| 52. |
VOE13977564
|
[0040] |
Hexagon screw
|
|
| 53. |
VOE15107871
|
[0024] |
Wheel stud
|
|
| 6. |
|
[0001] |
Sign
|
|
| 54. |
VOE4717139
|
[0024] |
Nut
|
|
| 7. |
VOE950891
|
[0004] |
Drive screw
|
|
| 8. |
|
[0001] |
Final gear
|
|
| 9. |
VOE4717958
|
[0001] |
Bearing anchorage
|
|
| 1. |
VOE4717712
|
[0001] |
Casing
|
|
| 10. |
VOE738004
|
[0001] |
Bearing race
|
|
| 11. |
VOE4717743
|
[0002] |
Spring pin
|
|
| 12. |
VOE738003
|
[0004] |
Thrust washer
|
|
| 13. |
VOE11034165
|
[0002] |
Sealing ring
|
|
| 14. |
VOE4717292
|
[0001] |
Bearing sleeve
|
|
| 15. |
VOE955373
|
[0010] |
Hexagon screw
|
AX - 3527
|
| |
VOE963320
|
[0010] |
Hexagon screw
|
AX 3528 -
|
| 16. |
VOE941912
|
[0010] |
Spring washer
|
|
| 17. |
VOE4717713
|
[0002] |
Anchorage
|
|
| 17A. |
VOE14370999
|
[0014] |
Allen Hd Screw
|
|
| 17B. |
VOE941914
|
[0014] |
Spring washer
|
|
| 2. |
VOE11034156
|
[0001] |
Plug
|
|
| 18. |
VOE4717709
|
[0002] |
King Pin
|
|
| 19. |
VOE13960239
|
[0002] |
O-ring
|
|
| 20. |
VOE949566
|
[0014] |
Hex. socket screw
|
|
| 21. |
VOE941914
|
[0014] |
Spring washer
|
|
| 22. |
VOE11034192
|
[0002] |
Spacer ring
|
|
| 23. |
VOE13960194
|
[0002] |
O-ring
|
|
| 24. |
VOE118728
|
[0002] |
Sealing ring
|
|
| 25. |
VOE4717690
|
[0002] |
Brake disc
|
|
| 26. |
VOE13963312
|
[0024] |
Screw
|
AX -1813
|
| |
VOE13947373
|
[0024] |
Screw
|
AX 1814-
|
| 27. |
VOE941912
|
[0024] |
Spring washer
|
|
| 3. |
VOE11102187
|
[0001] |
Magnetic plug
|
|
| 28. |
VOE4717332
|
[0002] |
Hub
|
|
| 29. |
VOE183701
|
[0002] |
Roller bearing
|
|
| |
VOE7181607
|
[0002] |
Roller bearing
|
|
| 30. |
VOE183610
|
[0002] |
Roller bearing
|
|
| |
VOE183610
|
[0002] |
Roller bearing
|
|
| 31. |
VOE4870492
|
[0002] |
Gear ring holder
|
|
| 32. |
VOE4717040
|
[0002] |
Gear ring
|
|
| 33. |
VOE4717022
|
[0002] |
Snap ring
|
|
| 34. |
VOE4717793
|
[0002] |
Nut
|
|
| 35. |
VOE948037
|
[0004] |
Screw
|
|
| 4. |
VOE13947628
|
[0002] |
Plane gasket
|
|
| 36. |
VOE4717715
|
[0002] |
Brake
|
ERS AV 4872135
|
| |
VOE4872135
|
[0002] |
Brake
|
|
| 36A. |
VOE963335
|
[0012] |
Hexagon screw
|
|
| 36B. |
VOE941914
|
[0012] |
Spring washer
|
|
| 37. |
VOE4717319
|
[2] |
Axle shaft
|
|
| 38. |
VOE11102304
|
[2] |
Sun gear
|
|
| 39. |
VOE4717107
|
[2] |
Wear washer
|
|
| 40. |
VOE4717033
|
[2] |
Lock ring
|
|
| 41. |
VOE4717046
|
[2] |
Planet carrier
|
|
| 42. |
VOE4717041
|
[6] |
Shaft
|
|
| 43. |
VOE4717027
|
[12] |
Wear washer
|
|
