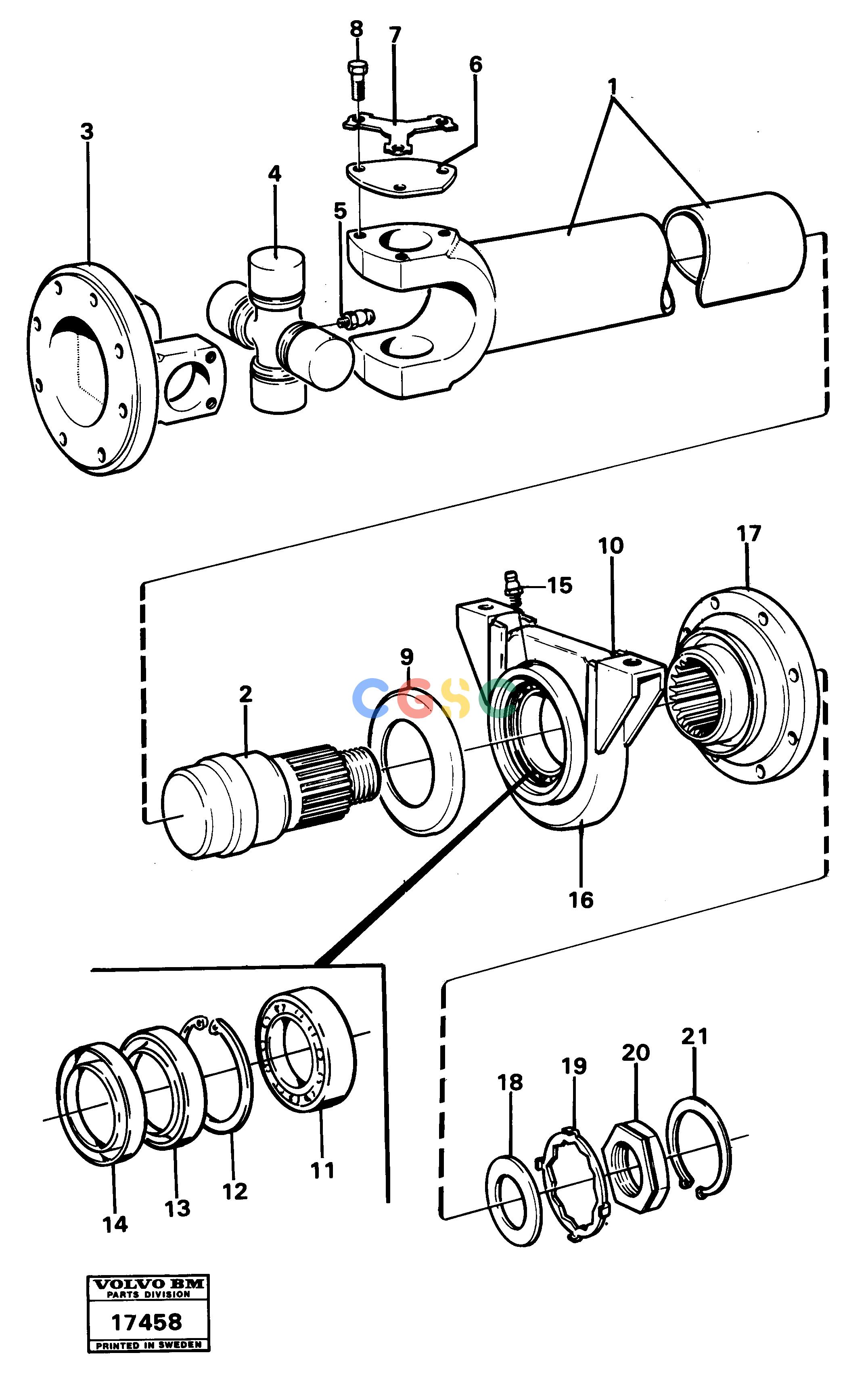

沃尔沃零件查询4300 Propeller shaft4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE232458
|
[1] |
Spider
|
|
| 5. |
VOE926866
|
[1] |
Lubricating nipple
|
|
| 6. |
VOE7231266
|
[4] |
Washer
|
|
| 7. |
|
[4] |
Lock washer
|
|
| 8. |
VOE13949733
|
[12] |
Hexagon screw
|
|
| |
VOE4929799
|
[0001] |
Countershaft
|
|
| 9. |
VOE263012
|
[1] |
Dust cover
|
|
| 10. |
VOE6212888
|
[1] |
Support bearing
|
|
| 11. |
VOE263004
|
[1] |
Ball bearing
|
|
| 12. |
VOE914548
|
[2] |
Retaining ring
|
|
| 13. |
VOE959042
|
[2] |
Sealing ring
|
|
| 15. |
VOE13951740
|
[2] |
Nipple
|
|
| 14. |
VOE263005
|
[2] |
Protecting ring
|
|
| 16. |
VOE263006
|
[1] |
Clamp
|
|
| 17. |
VOE382992
|
[1] |
Companion flange
|
|
| 18. |
VOE13948269
|
[0001] |
Washer
|
|
| 19. |
VOE382779
|
[0001] |
Lock washer
|
ALT
|
| 1. |
|
[0001] |
Shaft
|
|
| |
VOE383992
|
[0001] |
Lock washer
|
ALT
|
| 20. |
VOE13948320
|
[0001] |
Nut
|
|
| 21. |
VOE914480
|
[0001] |
Snap ring
|
|
| 2. |
|
[0001] |
Pin
|
|
| 3. |
VOE6212407
|
[0001] |
Companion flange
|
|
