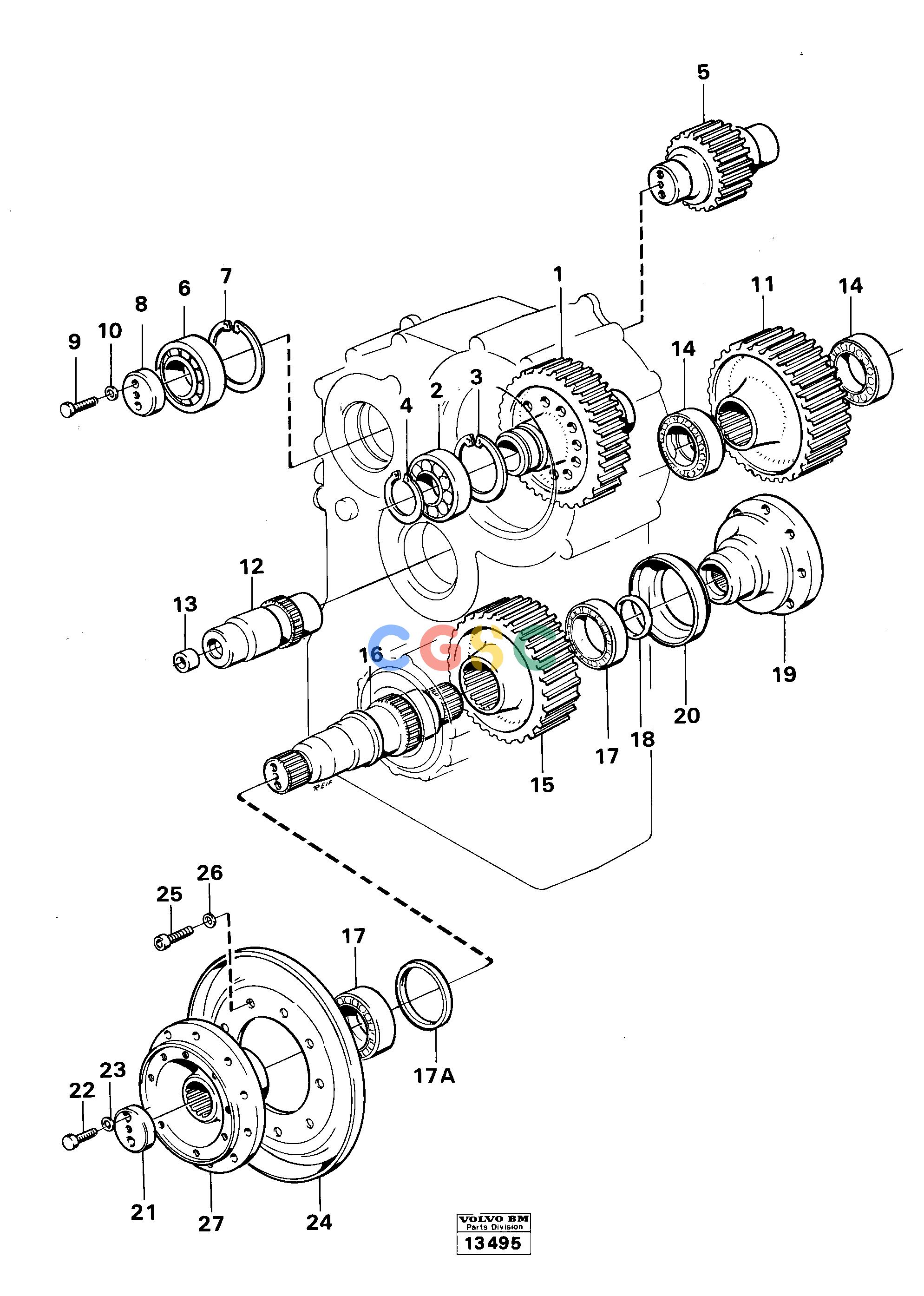

沃尔沃零件查询4300 Dropbox gears and shafts4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4871478
|
[1] |
Gear
|
|
| 6. |
VOE183811
|
[1] |
Roller bearing
|
|
| 7. |
VOE914548
|
[1] |
Retaining ring
|
|
| 8. |
VOE906912
|
[1] |
Washer
|
|
| 9. |
VOE13970973
|
[2] |
Hexagon screw
|
|
| 1. |
VOE4716962
|
[1] |
Gear
|
|
| 10. |
VOE940280
|
[2] |
Spring washer
|
|
| 11. |
VOE4716963
|
[1] |
Gear
|
|
| 12. |
VOE4719967
|
[1] |
Shaft
|
|
| 13. |
VOE4719964
|
[1] |
Companion flange
|
|
| 14. |
VOE183817
|
[2] |
Roller bearing
|
|
| |
VOE183817
|
[2] |
Roller bearing
|
|
| 15. |
VOE4718658
|
[1] |
Gear
|
PROD NO 30818
|
| 16. |
VOE4871051
|
[1] |
Shaft
|
|
| 17. |
VOE183820
|
[2] |
Roller bearing
|
|
| |
VOE183820
|
[2] |
Roller bearing
|
|
| 17A. |
VOE946574
|
[1] |
Sealing ring
|
|
| 18. |
VOE925070
|
[1] |
O-ring
|
|
| 19. |
VOE4718656
|
[1] |
Companion flange
|
|
| 2. |
VOE7183567
|
[1] |
Ball bearing
|
|
| 20. |
VOE767795
|
[1] |
Ring
|
|
| 21. |
VOE906912
|
[2] |
Washer
|
|
| 22. |
VOE13970971
|
[4] |
Hexagon screw
|
|
| 23. |
VOE940280
|
[0004] |
Spring washer
|
|
| 24. |
|
[0001] |
Parking brake
|
|
| 25. |
VOE959239
|
[0009] |
Hex. socket screw
|
|
| 26. |
VOE941908
|
[0009] |
Spring washer
|
|
| 27. |
VOE4719305
|
[0001] |
Companion flange
|
|
| 3. |
VOE951089
|
[1] |
Retaining ring
|
|
| 4. |
VOE914476
|
[1] |
Snap ring
|
|
