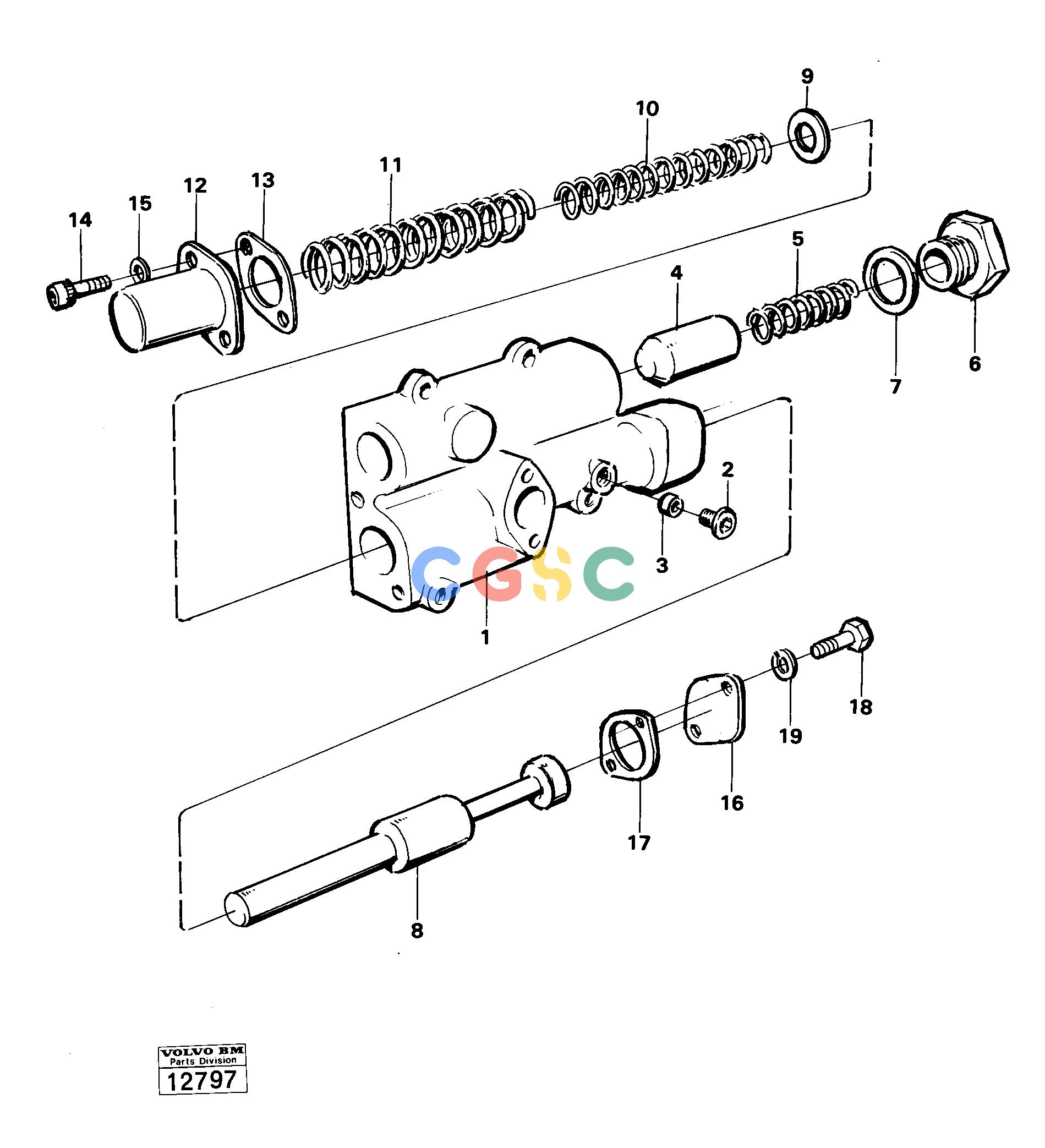

沃尔沃零件查询4300 Valve section43004718064-4720827NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025,浏览:次

Pos. |
Part No |
Qty |
Parts name |
Comments |
3. |
VOE13947621
|
[1] |
Plane gasket
|
|
4. |
VOE4718071
|
[1] |
Piston
|
|
5. |
VOE4718066
|
[1] |
Spring
|
|
6. |
VOE914394
|
[1] |
Plug
|
|
7. |
VOE13947629
|
[1] |
Plane gasket
|
|
|
VOE4718064
|
[0001] |
Valve
|
HT - 3052 ERS AV 4720827
|
8. |
VOE4718072
|
[1] |
Slide
|
|
9. |
VOE955899
|
[1] |
Plain washer
|
|
|
VOE4720557
|
|
Washer
|
|
10. |
VOE4718068
|
[1] |
Spring
|
|
11. |
VOE4718067
|
[1] |
Spring
|
|
12. |
VOE4718060
|
[1] |
Cover
|
|
13. |
VOE11036043
|
[1] |
Gasket
|
|
14. |
VOE942001
|
[2] |
Hex. socket screw
|
|
15. |
VOE13941906
|
[0002] |
Washer
|
|
16. |
VOE4718062
|
[0001] |
Cover
|
|
|
VOE4720827
|
|
Valve
|
HT 3053 -
|
17. |
VOE11036049
|
[0001] |
Gasket
|
|
18. |
VOE955270
|
[0002] |
Hexagon screw
|
|
19. |
VOE13941906
|
[0002] |
Washer
|
|
1. |
|
[0001] |
Housing
|
|
2. |
VOE930032
|
[1] |
Testing nipple
|
|
