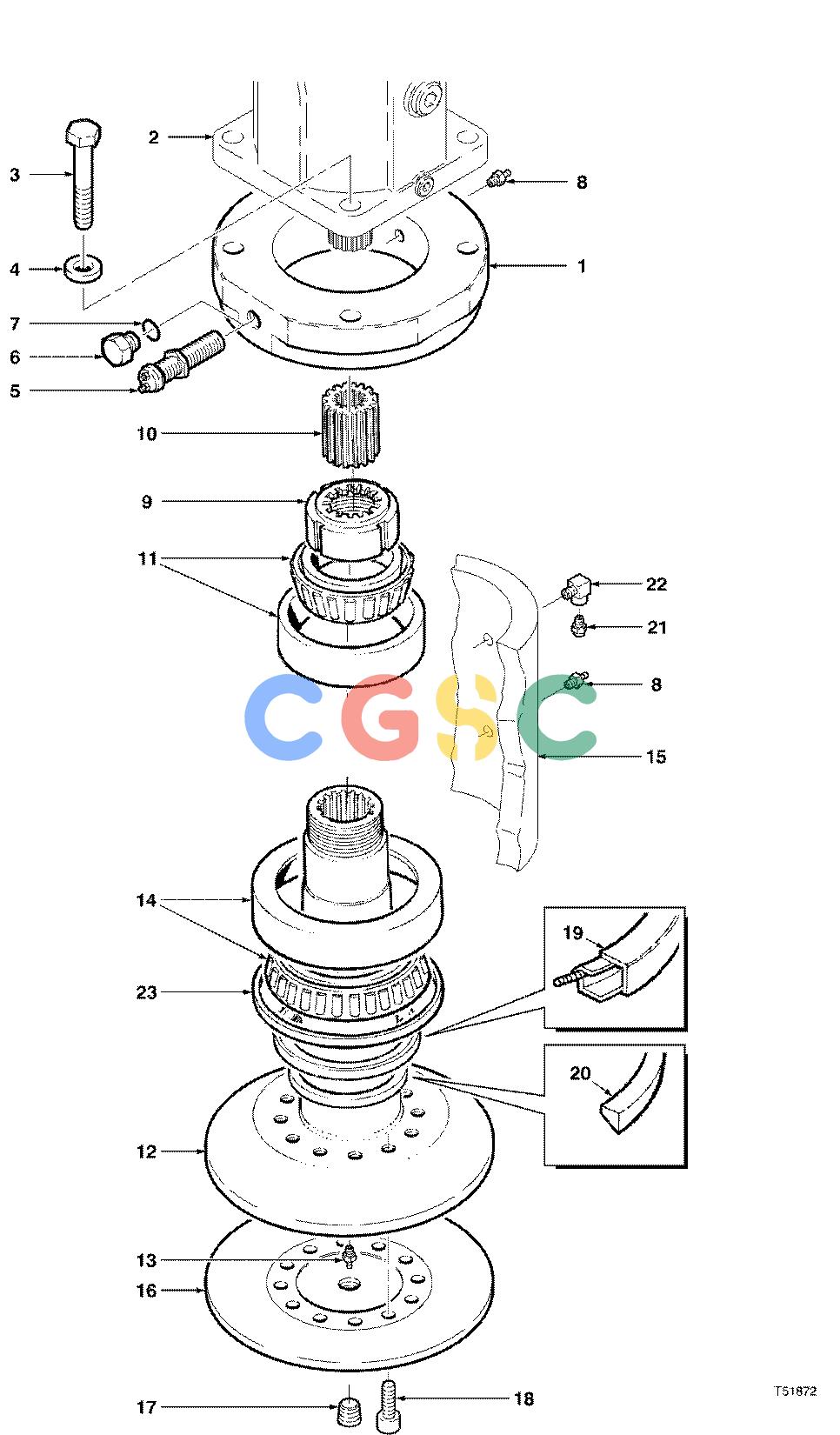

约翰迪尔零件查询18``DTT - ATTACHMENTS DISC SAW DRIVE 18`` HEAD ( 68110 - ) 4541-015/10 [4541-015/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700755100
|
[1] |
ADAPTER -
|
|
| 2. |
-------
|
[1] |
MOTOR - DISC SAW
|
|
| 3. |
810875200
|
[4] |
BOLT*3/4-10UNCX4-1/2 -
|
|
| 4. |
810002100
|
[4] |
WASHER*3/4 -
|
|
| 5. |
811961500
|
[1] |
SENSOR -
|
|
| 6. |
810112600
|
[1] |
PLUG -
|
|
| 7. |
840287000
|
[1] |
O-RING -
|
|
| 8. |
810000100
|
[2] |
GREASE FITTING.N610 -
|
|
| 9. |
700058000
|
[1] |
LOCKNUT -
|
|
| 10. |
700057900
|
[1] |
ADAPTOR -
|
|
| 11. |
700582600
|
[1] |
BEARING -
|
|
| 12. |
700058800
|
[1] |
SHAFT -
|
|
| 13. |
811242500
|
[1] |
FITTING -
|
|
| 14. |
700582800
|
[1] |
BEARING -
|
|
| 15. |
-------
|
[REF] |
FELLING HEAD SAW HOUSING
|
|
| 16. |
700058100
|
[1] |
PLATE -
|
|
| 17. |
810638100
|
[1] |
PLUG -
|
|
| 18. |
811349700
|
[12] |
BOLT*3/4-16X2.750 -
|
|
| 19. |
811447500
|
[1] |
SEAL -
|
|
| 20. |
700057800
|
[1] |
SPACER -
|
|
| 21. |
810783000
|
[1] |
BREATHER -
|
|
| 22. |
810781800
|
[1] |
ELBOW-90 DEG. -
|
|
| 23. |
700058700
|
[1] |
SPACER -
|
|
