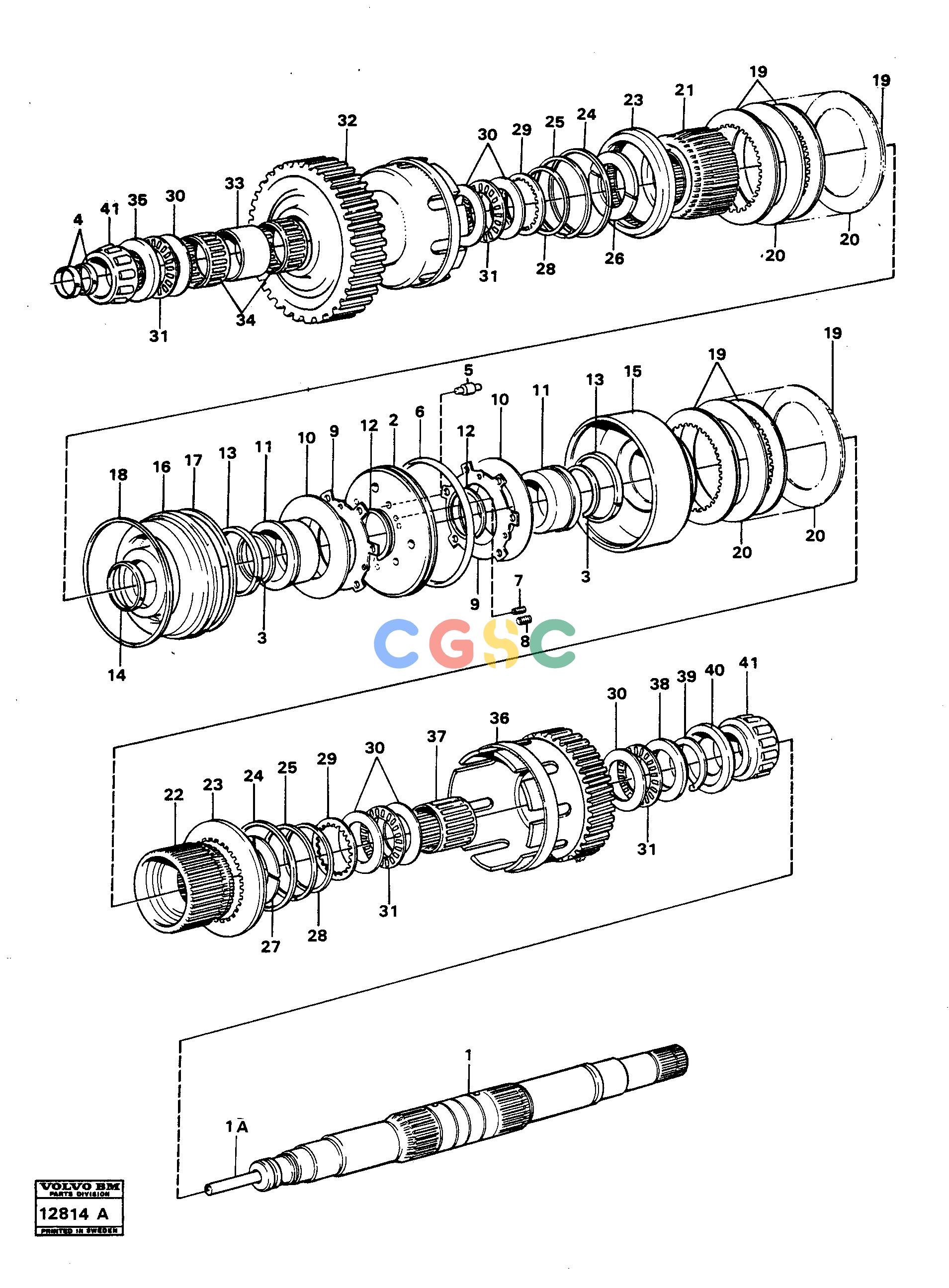

沃尔沃零件查询4300 Clutches 1:st and 2:nd speeds4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE4786535
|
[0002] |
Lock ring
|
|
| 4. |
VOE4871049
|
[0002] |
Piston ring
|
|
| 5. |
VOE4881102
|
[0003] |
Tappet
|
|
| 6. |
VOE4871935
|
[0001] |
O-ring
|
|
| 7. |
VOE4786539
|
[0006] |
Compression spring
|
|
| |
VOE4871299
|
[0001] |
Hydraulic clutch
|
|
| 8. |
VOE4786538
|
[0006] |
Compression spring
|
|
| 9. |
VOE4786515
|
[0002] |
Reinforcing disc
|
|
| 10. |
VOE795664
|
[0002] |
Disc
|
|
| 11. |
VOE4786519
|
[0002] |
Piston
|
|
| 12. |
VOE4786535
|
[0002] |
Lock ring
|
|
| 13. |
VOE4786528
|
[0002] |
Piston ring
|
|
| 14. |
VOE4786527
|
[0004] |
Piston ring
|
|
| 15. |
VOE4786521
|
[0001] |
Clutch body
|
|
| 16. |
VOE11704884
|
[0001] |
Piston
|
|
| 17. |
VOE795310
|
[0001] |
Sealing ring
|
|
| 1. |
VOE4719334
|
[0001] |
Clutch shaft
|
|
| 18. |
VOE795311
|
[0001] |
Lock ring
|
|
| 19. |
VOE4871796
|
[0021] |
Friction disc
|
HT - 3177
|
| |
VOE4871796
|
[0021] |
Friction disc
|
HT 3178 -
|
| 20. |
VOE795322
|
[0019] |
Disc
|
|
| 21. |
VOE4786532
|
[0001] |
Clutch hub
|
|
| 22. |
VOE4786513
|
[0001] |
Clutch hub
|
|
| 23. |
VOE4786554
|
[0002] |
Pressure plate
|
|
| 24. |
VOE4786536
|
[0002] |
Lock ring
|
|
| 25. |
VOE4786526
|
[0002] |
Lock ring
|
|
| 26. |
VOE4786531
|
[0002] |
Retainer
|
|
| 27. |
VOE4786534
|
[0002] |
Retainer
|
|
| 1A. |
VOE4718002
|
[0001] |
Tube
|
|
| 28. |
VOE795318
|
[0002] |
Lock ring
|
|
| 29. |
VOE4786537
|
[0002] |
Washer
|
|
| 30. |
VOE4785781
|
[0006] |
Washer
|
|
| 31. |
VOE4785772
|
[0004] |
Needle bearing
|
|
| 32. |
VOE4718565
|
[0001] |
Gear
|
|
| |
VOE11036068
|
[0001] |
Gear
|
|
| 33. |
VOE4718468
|
[0001] |
Spacer sleeve
|
|
| 34. |
VOE11145380
|
[0001] |
Needle holder
|
|
| 35. |
VOE4718008
|
[1] |
Washer
|
|
| 36. |
VOE11036056
|
[1] |
Gear
|
|
| 2. |
VOE4786522
|
[0001] |
Partition wall
|
|
| 37. |
VOE11144006
|
[1] |
Needle bearing
|
|
| 38. |
VOE15175558
|
[1] |
Thrust washer
|
|
| 39. |
VOE13947902
|
[1] |
Lock ring
|
|
| 40. |
VOE4718931
|
[1] |
Retainer
|
|
| 41. |
VOE183824
|
[0002] |
Roller bearing
|
|
| |
VOE6630546
|
[0001] |
Clutch kit
|
|
