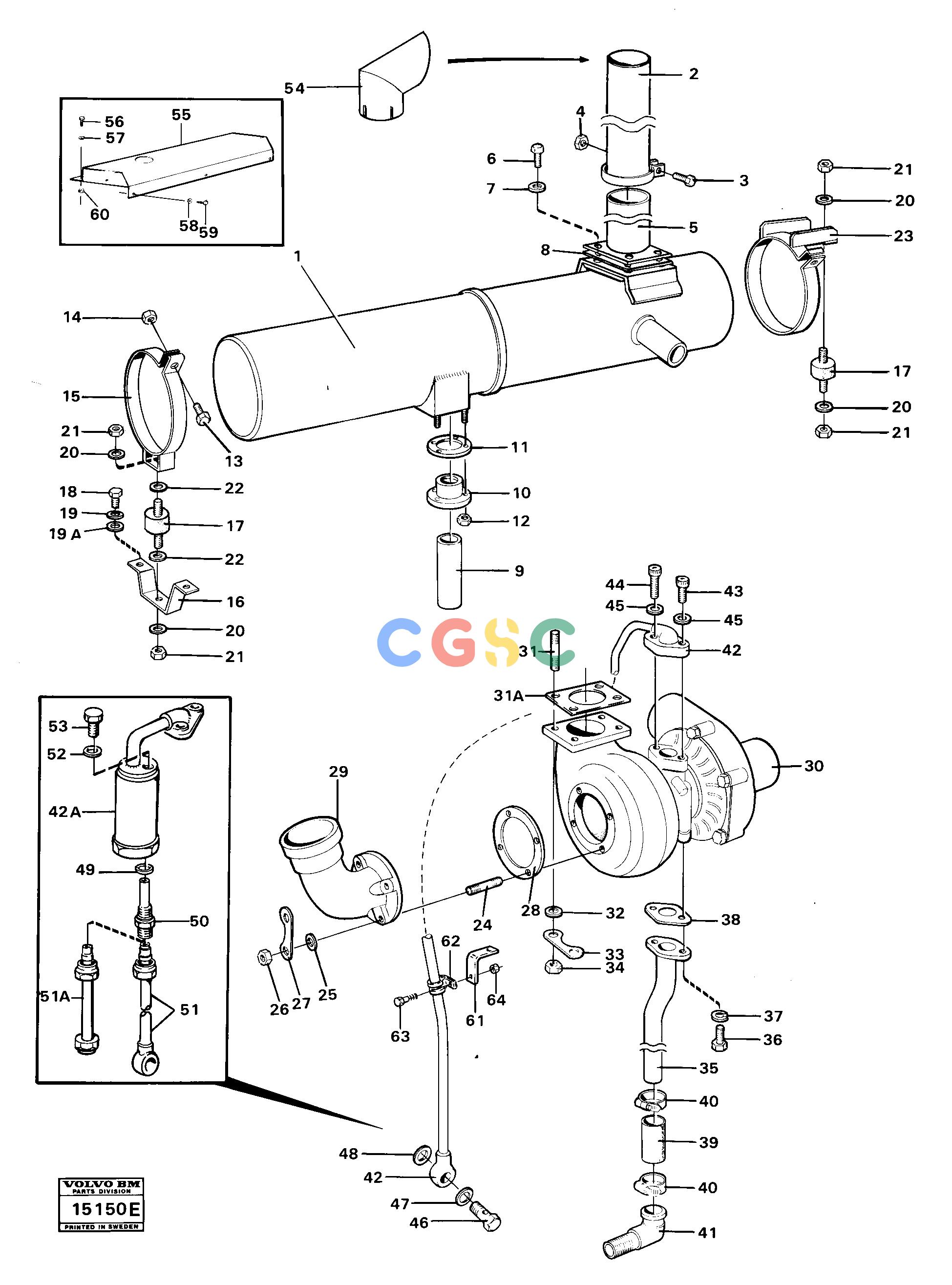

沃尔沃零件查询4300 Exhaust system4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4804329
|
[1] |
Silencer
|
PROD NO 33100,33105
|
| 61. |
VOE4926105
|
[0001] |
Spring anchorage
|
MO 59883 -
|
| 62. |
VOE13946834
|
[0002] |
Clamp
|
MO 59883 -
|
| 63. |
VOE940113
|
[0002] |
Hexagon screw
|
MO 59883 -
|
| 64. |
VOE955826
|
[0002] |
Hexagon nut
|
MO 59883 -
|
| |
VOE4804329
|
[1] |
Silencer
|
PROD NO 33106, 33107
|
| 2. |
VOE787965
|
[1] |
End pipe
|
PROD NO 33100,33105
|
| 3. |
VOE13970948
|
[1] |
Hexagon screw
|
|
| 4. |
VOE971071
|
[1] |
Hexagon nut
|
|
| 5. |
VOE4804219
|
[1] |
Exhaust pipe
|
|
| 6. |
VOE13970947
|
[4] |
Hexagon screw
|
|
| 7. |
VOE941908
|
[4] |
Spring washer
|
|
| 8. |
VOE4773684
|
[1] |
Gasket
|
|
| 9. |
VOE4804223
|
[1] |
Expansion joint
|
PROD NO 33100, 33105
|
| |
VOE4804529
|
[1] |
Expansion joint
|
PROD NO 33106, 33107
|
| 10. |
VOE4774455
|
[1] |
Flange
|
|
| 11. |
VOE11033124
|
[1] |
Gasket
|
|
| 12. |
VOE955782
|
[0004] |
Hexagon nut
|
|
| 13. |
VOE13970951
|
[0002] |
Hexagon screw
|
|
| 14. |
VOE971071
|
[0002] |
Hexagon nut
|
|
| 15. |
VOE4925131
|
[0001] |
Tensioning band
|
|
| 16. |
VOE4925137
|
[0001] |
Anchorage
|
|
| 17. |
VOE11110276
|
[0003] |
Rubber cushion
|
|
| 18. |
VOE13955294
|
[0004] |
Screw
|
|
| 19. |
VOE13941907
|
[0004] |
Washer
|
|
| 19A. |
VOE13955894
|
[0004] |
Washer
|
SER NO 1093-
|
| 20. |
VOE940280
|
[0006] |
Spring washer
|
|
| 21. |
VOE13971072
|
[0006] |
Hexagon nut
|
|
| 22. |
VOE955898
|
[0002] |
Washer
|
|
| 23. |
VOE4925134
|
[0001] |
Tensioning band
|
|
| 24. |
VOE953239
|
[0004] |
Stud
|
UNC 5/16
|
| |
VOE924064
|
[0004] |
Stud
|
M 8
|
| 25. |
VOE13940097
|
[0004] |
Washer
|
MO -37988
|
| |
VOE13955894
|
[0004] |
Washer
|
MO 37989-
|
| 26. |
VOE13940122
|
[0004] |
Nut
|
|
| |
VOE946330
|
[0004] |
Hexagon nut
|
PROD NO 33100,33105
|
| 27. |
VOE943705
|
[0002] |
Tab washer
|
MO -37988
|
| |
VOE13941907
|
[0004] |
Washer
|
MO 37989-
|
| 28. |
VOE787974
|
[0001] |
Gasket
|
|
| 29. |
VOE787623
|
[0001] |
Tube
|
|
| 30. |
VOE4787199
|
[0001] |
Turbocharger
|
PROD NR16100,16106
|
| |
|
|
None
|
|
| |
VOE4880591
|
[0001] |
Turbocharger
|
PROD NR16300,16305
|
| |
|
|
None
|
|
| |
|
|
None
|
ERS AV 4881090
|
| |
VOE4880591
|
[0001] |
Turbocharger
|
PROD NO 16307
|
| |
|
|
None
|
MO - 60141
|
| |
|
|
None
|
|
| |
|
|
None
|
ERS AV 4881090
|
| |
VOE4881650
|
[1] |
Turbocharger
|
PROD NO 16307, MO 60142-
|
| |
|
|
None
|
|
| 31A. |
VOE420618
|
[1] |
Gasket
|
|
| 31. |
VOE479971
|
[4] |
Stud
|
MO -39129
|
| |
VOE953259
|
[0004] |
Stud
|
MO 39130-
|
| 32. |
VOE976945
|
[0004] |
Washer
|
MO -39129
|
| |
VOE13940097
|
[0004] |
Washer
|
MO 39130-
|
| 33. |
VOE942167
|
[0002] |
Tab washer
|
|
| 34. |
VOE13971074
|
[0004] |
Hexagon nut
|
MO -39129
|
| |
VOE191894
|
[0004] |
Nut
|
MO 39130-
|
| 35. |
VOE787456
|
[0001] |
Oil draining pipe
|
MO - 60246
|
| |
VOE4804694
|
[0001] |
Oil draining pipe
|
MO 60247 -
|
| 36. |
VOE13940115
|
[0002] |
Screw
|
PROD NO 16100, 16106.
|
| |
VOE955297
|
[0002] |
Hexagon screw
|
PROD NO 16300, 16305
|
| 37. |
VOE13942336
|
[0002] |
Spring washer
|
PROD NO 16100, 16106
|
| |
VOE13941907
|
[0002] |
Washer
|
PROD NO 16300, 16305
|
| 38. |
|
[0001] |
Gasket
|
|
| 39. |
VOE466328
|
[0001] |
Hose
|
|
| 40. |
VOE13943474
|
[0002] |
Hose clamp
|
|
| 41. |
VOE479959
|
[0001] |
Nipple
|
|
| 42. |
VOE787601
|
[0001] |
Oil feed pipe
|
MO-48197
|
| 42A. |
VOE4804445
|
[0001] |
Oil reservoir
|
MO 48198-
|
| 43. |
VOE926323
|
[0001] |
Screw
|
PROD NO 16100, 16106
|
| |
VOE959222
|
[0001] |
Hex. socket screw
|
PROD NO 16300, 16305
|
| 44. |
VOE956571
|
[0001] |
Hex. socket screw
|
PROD NO 16100, 16106
|
| |
VOE959223
|
[0001] |
Hex. socket screw
|
PROD NO 16300, 16305
|
| 45. |
VOE13941907
|
[0002] |
Washer
|
|
| 46. |
VOE942007
|
[0001] |
Hollow screw
|
MO - 59882
|
| 47. |
VOE13947621
|
[0001] |
Plane gasket
|
|
| 48. |
VOE13947624
|
[0001] |
Plane gasket
|
MO - 59882
|
| 49. |
VOE13947622
|
[0001] |
Plane gasket
|
MO 48198-
|
| 50. |
VOE4804448
|
[0001] |
Nipple
|
MO 48198-
|
| 51. |
VOE4804482
|
[0001] |
Tube
|
MO 48198 - 59882
|
| 51A. |
VOE4804696
|
[0001] |
Oil feed pipe
|
MO 59883 -
|
| 52. |
VOE13947281
|
[0001] |
Gasket
|
MO 48198-
|
| 53. |
VOE960628
|
[0001] |
Plug
|
MO 48198-
|
| 54. |
VOE4804634
|
[0001] |
Rain cap
|
|
| |
VOE943483
|
[0001] |
Hose clamp
|
|
| 55. |
VOE4947002
|
[0001] |
Protecting plate
|
|
| 56. |
VOE970945
|
[0002] |
Hexagon screw
|
|
| 57. |
VOE976945
|
[0002] |
Washer
|
|
| 58. |
VOE976945
|
[0003] |
Washer
|
|
| 59. |
VOE970945
|
[0003] |
Hexagon screw
|
|
| 60. |
VOE13971083
|
[0002] |
Lock nut
|
|
| |
VOE4856295
|
[0003] |
Anchorage
|
|
![]()
