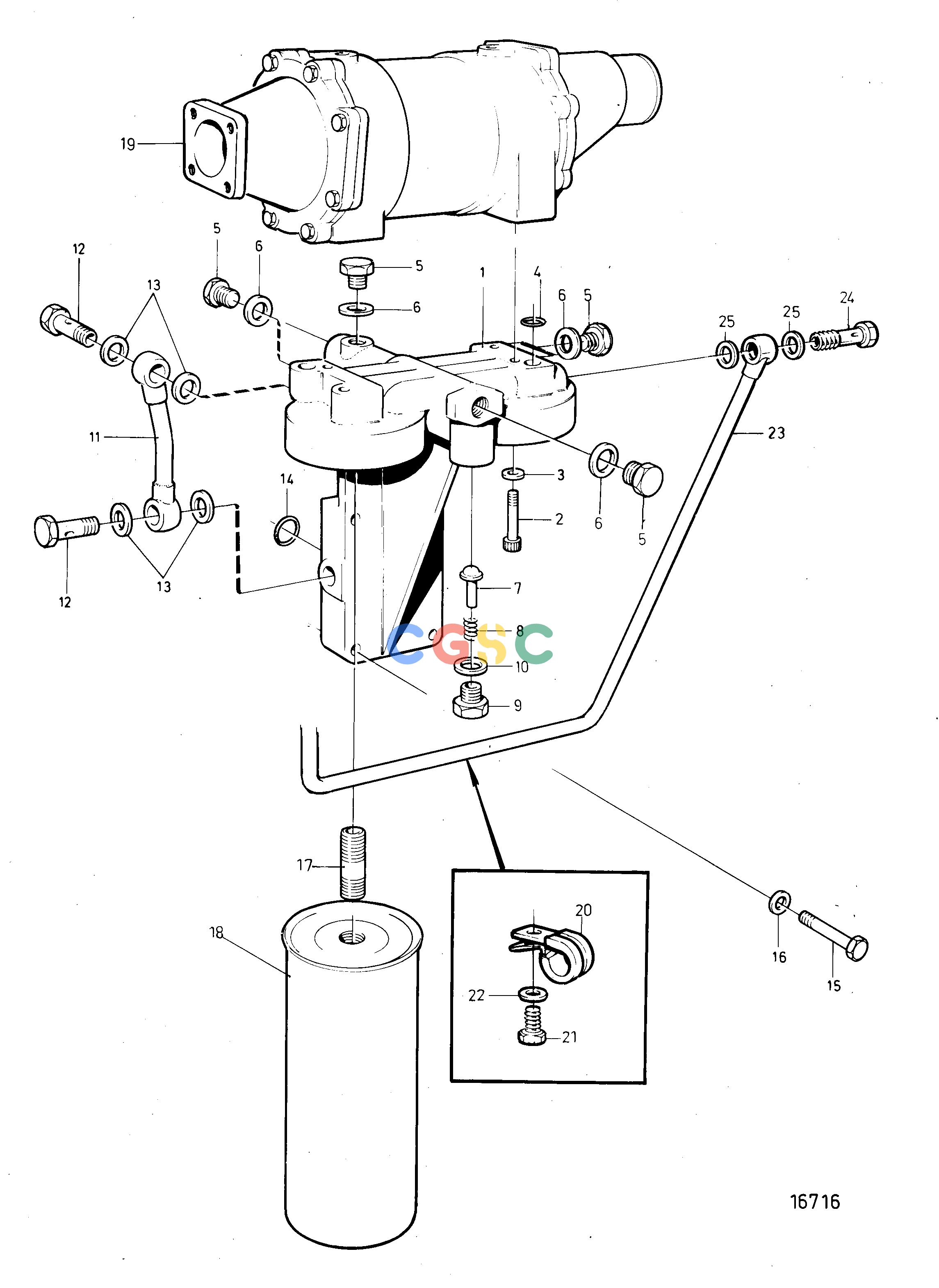

沃尔沃零件查询4300 Slurry separator with fitting parts Mo-598824300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE952628
|
[0001] |
Clamp
|
|
| 6. |
VOE13955781
|
[0001] |
Nut
|
|
| 7. |
VOE4804504
|
[0001] |
Hose
|
|
| 8. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 9. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 1. |
VOE4880463
|
[0001] |
Water separator
|
|
| 10. |
VOE4780356
|
[0001] |
Nipple
|
|
| 11. |
VOE954365
|
[0001] |
Olive
|
|
| 12. |
|
[0001] |
Bracket
|
|
| 13. |
VOE13955894
|
[0002] |
Washer
|
|
| 14. |
VOE13941907
|
[0002] |
Washer
|
|
| 15. |
VOE13955295
|
[0002] |
Screw
|
|
| 16. |
VOE940142
|
[0002] |
Hexagon screw
|
|
| 17. |
VOE13955894
|
[0004] |
Washer
|
|
| 18. |
VOE13941907
|
[0002] |
Washer
|
|
| 19. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 2. |
VOE4774631
|
[0001] |
Fuel hose
|
|
| 3. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 4. |
VOE60113509
|
[0001] |
Hollow screw
|
|
