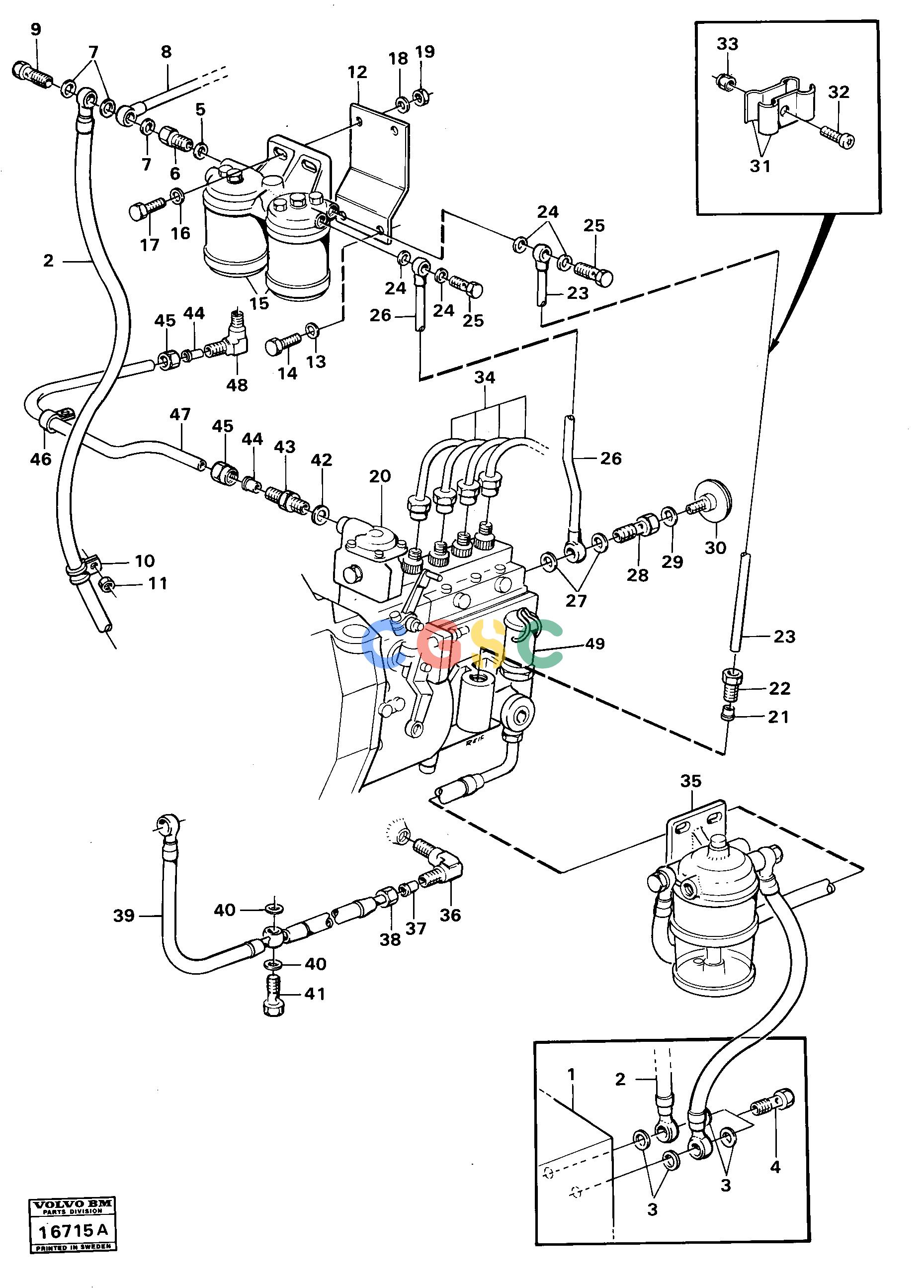

沃尔沃零件查询4300 Fuel system mo 48198-598824300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13947621
|
[0001] |
Plane gasket
|
|
| 6. |
VOE4880629
|
[0001] |
Overflow valve
|
|
| 7. |
VOE13947621
|
[0003] |
Plane gasket
|
|
| 8. |
VOE4804336
|
[0001] |
Fuel pipe
|
|
| 9. |
VOE180211
|
[0001] |
Hollow screw
|
|
| 1. |
|
[0001] |
Fuel tank
|
|
| 10. |
VOE952627
|
[0002] |
Clamp
|
|
| 11. |
VOE955981
|
[0002] |
O-ring
|
|
| 12. |
VOE4804495
|
[0001] |
Bracket
|
|
| 13. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 14. |
VOE955534
|
[0002] |
Hexagon screw
|
|
| 15. |
VOE4880617
|
[0001] |
Fuel filter
|
|
| 16. |
VOE13940097
|
[0002] |
Washer
|
|
| 17. |
VOE13940162
|
[0002] |
Screw
|
|
| 18. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 19. |
VOE13955827
|
[0002] |
Nut
|
|
| 2. |
VOE4774659
|
[0001] |
Fuel hose
|
|
| 20. |
VOE4880612
|
[0001] |
Injection pump
|
|
| 21. |
VOE954365
|
[0001] |
Olive
|
|
| 22. |
VOE4780356
|
[0001] |
Nipple
|
|
| 23. |
VOE4804493
|
[0001] |
Tube
|
|
| 24. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 25. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 26. |
VOE4804494
|
[0001] |
Tube
|
|
| 27. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 28. |
VOE787925
|
[1] |
Hollow screw
|
|
| 29. |
VOE947620
|
[1] |
Gasket
|
|
| 3. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 30. |
VOE242114
|
[1] |
Pressure equalizer
|
|
| 31. |
VOE404279
|
[2] |
Clamp
|
|
| 32. |
VOE956094
|
[1] |
Cross recessed screw
|
|
| 33. |
VOE13955781
|
[1] |
Nut
|
|
| 34. |
|
[4] |
Fuel pipe
|
|
| 35. |
|
[1] |
Slurry separator
|
|
| 36. |
VOE954384
|
[1] |
Elbow nipple
|
|
| 37. |
VOE954363
|
[1] |
Olive
|
|
| 38. |
VOE954348
|
[1] |
Nut
|
|
| 39. |
VOE780559
|
[1] |
Oil hose
|
|
| 4. |
VOE60113509
|
[0001] |
Hollow screw
|
|
| 40. |
VOE957171
|
[4] |
Gasket
|
|
| 41. |
VOE7074033
|
[2] |
Hollow screw
|
|
| 42. |
VOE13947281
|
[0001] |
Gasket
|
|
| 43. |
VOE4804179
|
[0001] |
Nipple
|
|
| 44. |
VOE954365
|
[0002] |
Olive
|
|
| 45. |
VOE954357
|
[0002] |
Nut
|
|
| 46. |
VOE942400
|
[0001] |
Clamp
|
|
| 47. |
VOE787969
|
[0001] |
Tube
|
|
| 48. |
VOE954386
|
[0001] |
Elbow nipple
|
|
| 49. |
VOE4880294
|
[0001] |
Feed pump
|
|
