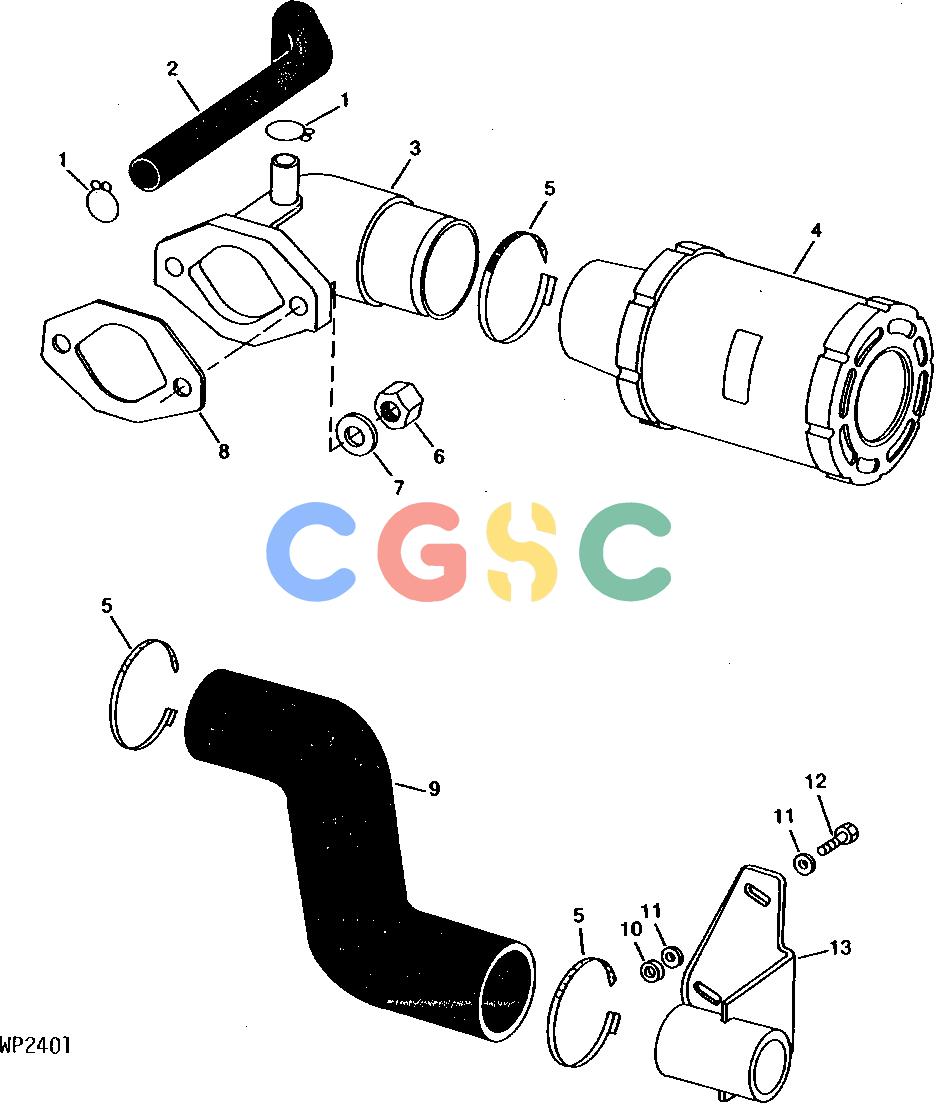

约翰迪尔零件查询622 - AMT AIR INTAKE AND FILTER ADMISSION D'AIR ET FILTRE LUFTANSAUGUNG UND LUFTFILTER PRESA E FILTRO DELL'ARIEPC John Deere online
广数供应链运营团队, 14 02月, 2025,浏览:次
Pos. |
Part No |
Qty |
Parts name |
Comments |
1. |
R56101
|
[2] |
CLIP
|
|
2. |
W40486
|
[1] |
Tube
|
|
3. |
M95685
|
[1] |
PIPE ELBOW
|
|
4. |
AW26796
|
[1] |
AIR CLEANER
|
|
5. |
TY22467
|
[AR] |
Clamp
|
|
6. |
14M7272
|
[2] |
NUT
|
|
7. |
24M7088
|
[2] |
Washer
|
|
8. |
M97278
|
[1] |
Gasket
|
|
9. |
W41177
|
[1] |
Suction Hose
|
|
10. |
14M7165
|
[2] |
LOCK NUT
|
|
11. |
24H1287
|
[4] |
Washer
|
|
12. |
19M7077
|
[2] |
CAP SCREW
|
|
13. |
AW27000
|
[1] |
Support
|
|
