约翰迪尔零件查询622 - AMT CARBURETOR, SERVICE REPLACEMENT (KEIHIN) CARBURATEUR (KEIHIN) VERGASER (KEIHIN) CARBURATORE (KEIHIN)EPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览：次

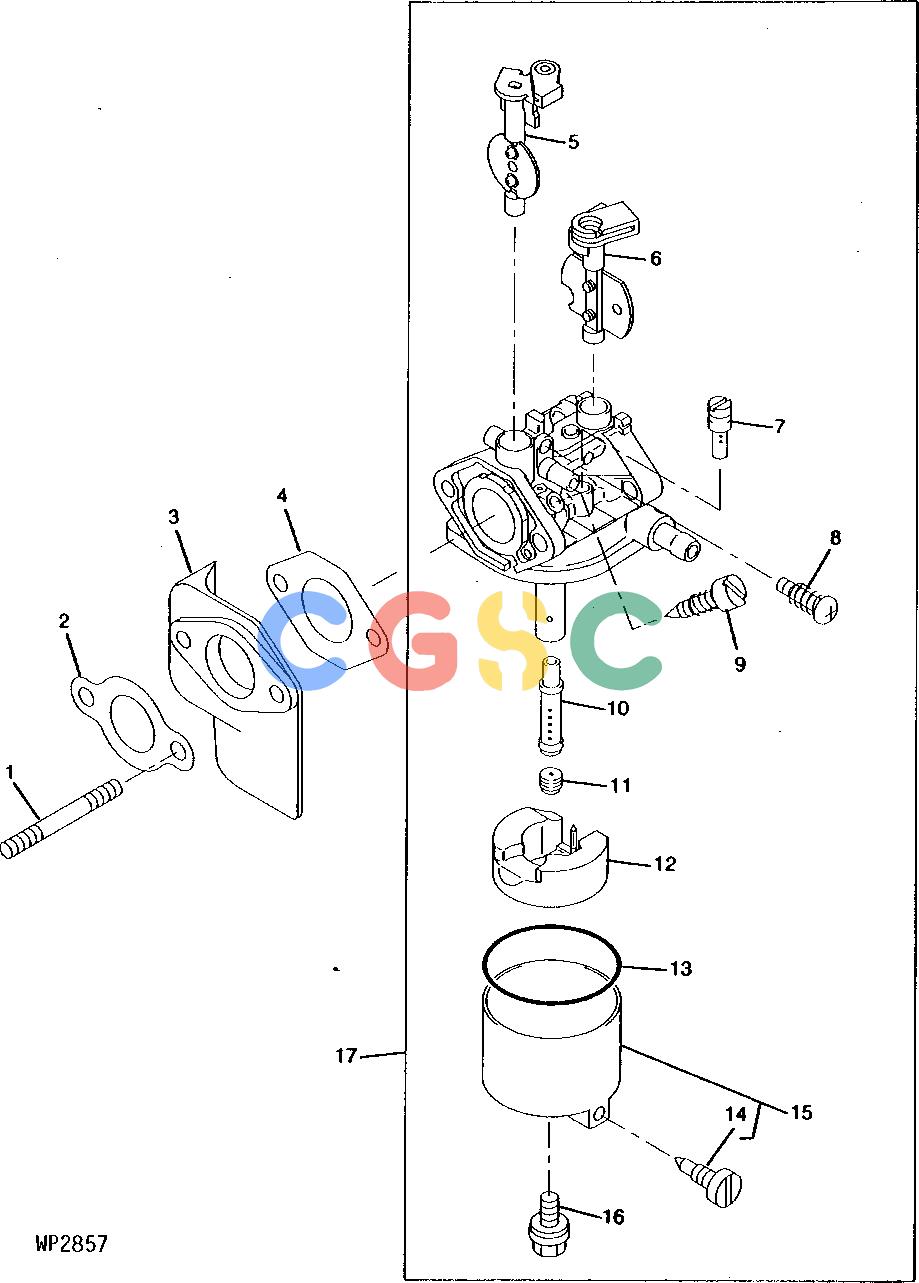

Pos.	Part No	Qty	Parts name	Comments
1.	M79452	[2]	Stud
2.	M97282	[1]	Gasket
3.	M119183	[1]	Insulator
4.	M97280	[1]	Gasket
5.	AM119028	[1]	Valve	(THROTTLE)
6.	AM119949	[1]	Valve	(CHOKE)
7.	........	[1]	Jet	(A) (PILOT) (NO. 40) (ORDER AM119947)
8.	AM119031	[1]	Screw
9.	AM119032	[1]	Screw
10.	M121037	[1]	Nozzle
11.	........	[1]	Jet	(A) (NO. 92) STD, (ORDER AM119947)
11.	........	[1]	Jet	(A) (NO. 90) 1076 - 2286 M (3500 - 7500') (ORDER AM119947)
11.	........	[1]	Jet	(A) (NO. 88) 2286 M + (7500' +) (ORDER AM119947)
12.	AM121045	[1]	Float	(INCLUDES NEEDLE VALVE)
13.	M119180	[1]	Gasket
14.	AM119030	[1]	Screw
15.	AM119027	[1]	Chamber
16.	M119187	[1]	Bolt
17.	AM119946	[1]	Carburetor
...	AM119947	[1]	KIT	JET (INCLUDES PARTS MARKED (A))
