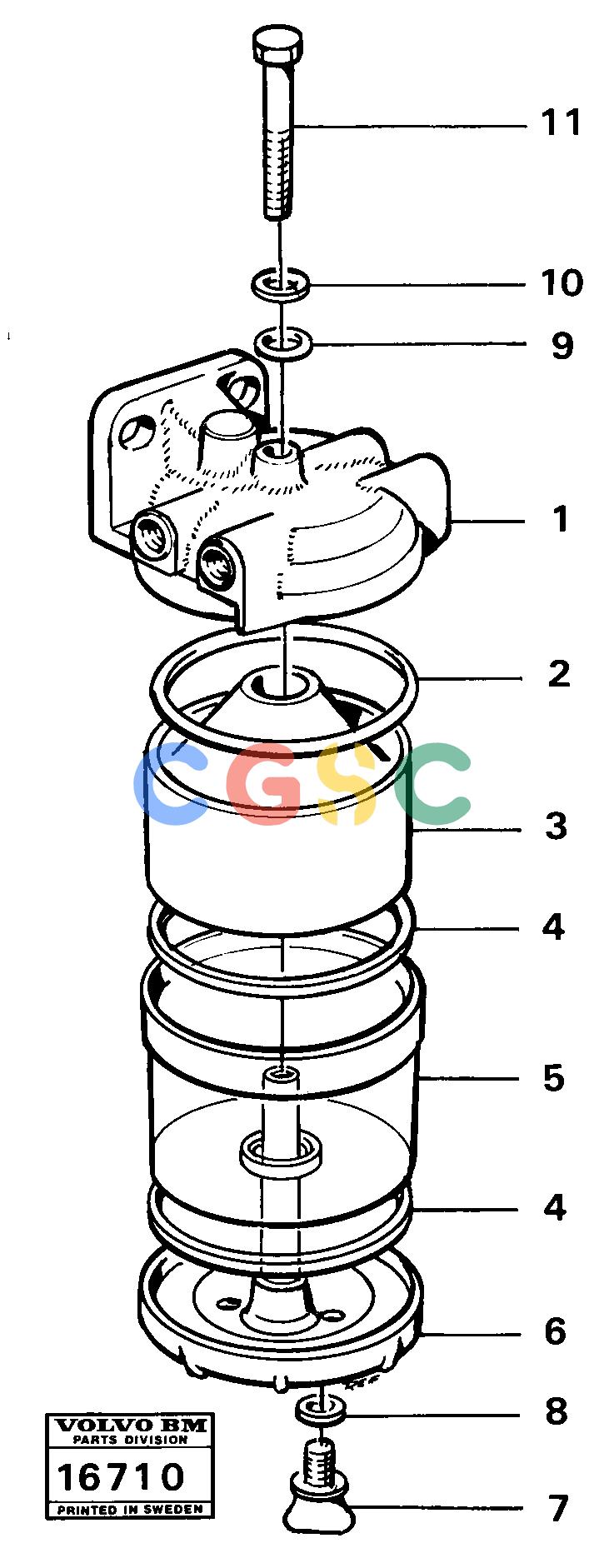

Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
4. | VOE1695000 | [0002] | Gasket | |
5. | VOE818407 | [0001] | Reservoir | |
6. | VOE6213506 | [0001] | Base plate | |
7. | VOE242595 | [0001] | Plug | |
8. | VOE6643249 | [0001] | Gasket | |
VOE4880463 | [0001] | Water separator | ||
9. | VOE236570 | [0001] | O-ring | |
10. | VOE6648589 | [0001] | Washer | |
11. | VOE7192545 | [0001] | Screw | |
1. | [0001] | Cover | ||
2. | VOE1695001 | [0001] | Gasket | |
3. | VOE829666 | [0001] | Separator |
