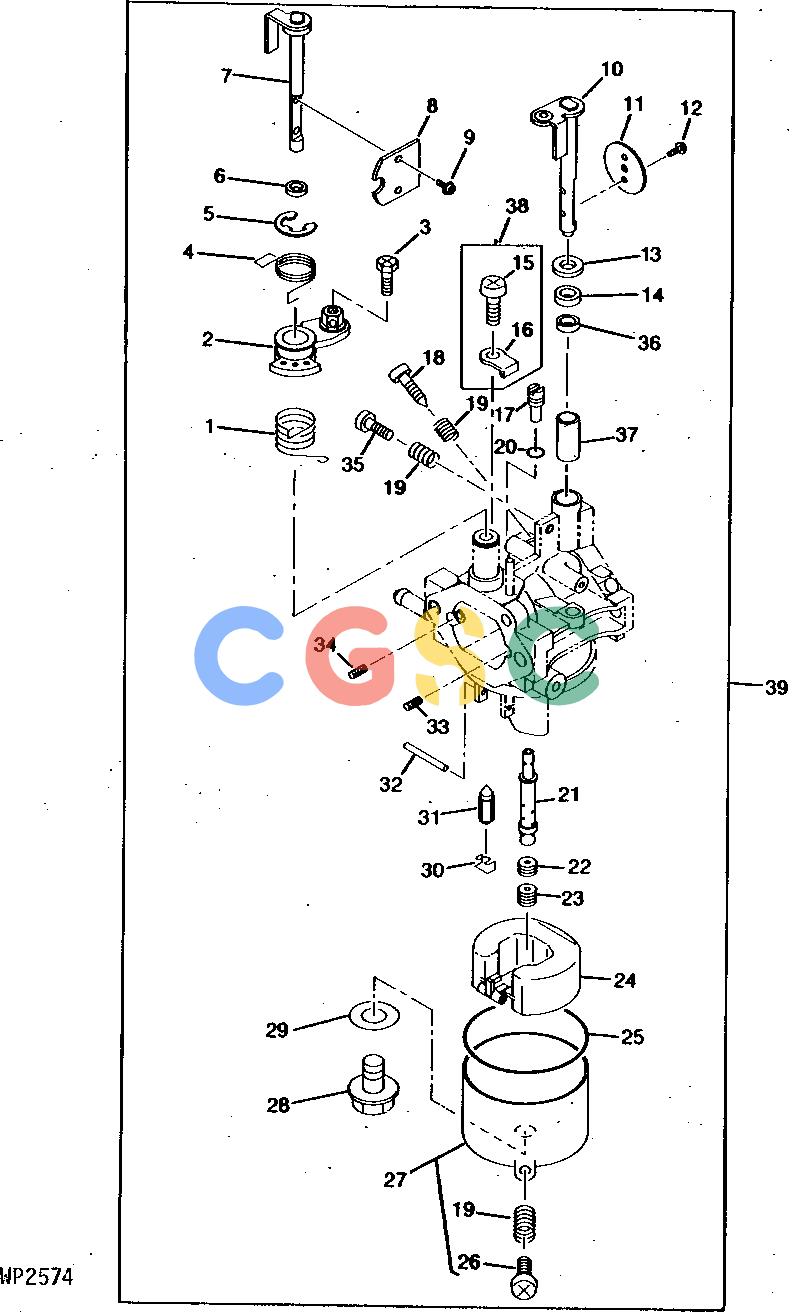

约翰迪尔零件查询622 - AMT CARBURETOR (MIKUNI) "MIC" CARBURATEUR (MIKUNI) VERGASER (MIKUNI) CARBURATORE (MIKUNI) CARBURADOR (MIEPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览：次

Pos. Part No Qty Parts name Comments
1. W40480 [1]   Spring
2. W40469 [1]   Lever      (A)
3. W40475 [1]   Stud
4. W40481 [1]   Spring
5. W40555 [1]   Snap Ring
6. W40479 [1]   SEAL      (A)
7. W40471 [1]   Shaft
8. W40473 [1]   Valve
9. M88536 [2]   Screw
10. W40472 [1]   Shaft      (USE WITH W40598)
10. M96358 [1]   Shaft
11. M74286 [1]   Valve
11. M96356 [1]   Valve
12. M88557 [2]   Screw
13. M88551 [1]   SEAL      (A)
14. W40478 [1]   Ring      (A)
15. M76328 [1]   Pin      (SUB AM109191)
16. M76327 [1]   Cover      (SUB AM109191)
17. M76517 [1]   Jet      (NO. 45) PILOT
18. M74288 [1]   Screw
19. M88544 [3]   Compression Spring
20. M76326 [1]   Ring      (A)
21. W40474 [1]   Nozzle
22. W40556 [1]   Nozzle Holder
23. W40476 [1]   Jet      (B) (NO. 97.5) -1076 M (-3500')
23. W40610 [1]   Jet      (B) (NO. 95) -1076 M (-3500')
23. W40610 [1]   Jet      (B) (NO. 95) 1076 - 2286 M (3500' - 7500')
23. W40611 [1]   Jet      (B) (NO. 92.5) 1076 - 2286 M (3500' -7500')
23. W40611 [1]   Jet      (B) (NO. 92.5) +2286 M (+7500')
23. M96533 [1]   Jet      (B) (NO. 90) +2286 M (+7500')
23. M96388 [1]   Jet      (C) (NO. 82.5) -1076 M (-3500')
23. M96390 [1]   Jet      (C) (D) (NO. 85) -1076 M (-3500')
23. M96391 [1]   Jet      (C) (E) (NO. 80)
24. M76505 [1]   Float
25. M88547 [1]   Gasket      (A)
26. M88543 [1]   Screw
27. AM104518 [1]   Chamber
27. AM108532 [1]   Chamber
28. W40482 [1]   Bolt
28. M96355 [1]   Bolt
29. M88554 [1]   Washer      (A)
30. PT12064 [1]   CLIP
31. AM104366 [1]   Valve      (A)
32. M88548 [1]   Pin      (A)
33. W40470 [1]   Jet      (B) (N0. 1.3) MAIN AIR
33. PT12007 [1]   Jet      (B) (NO. 1.4) MAIN AIR
33. M76199 [1]   Pin      (C) (NO. 1.0) MAIN AIR
34. M70292 [1]   Jet      (NO. 1.1) PILOT AIR
35. 21M7230 [1]   Screw      M4 X 14
36. W40598 [1]   Bushing
37. W40597 [1]   Bushing
38. AM109191 [1]   CARBURETOR KIT      (PLATE AND SCREW)
39. AM108531 [1]   Carburetor      (FOR NA, SUB AM119946) (SUB FOR AW26843)
