约翰迪尔零件查询600 - AMT AXLE UPDATE KITEPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览：次

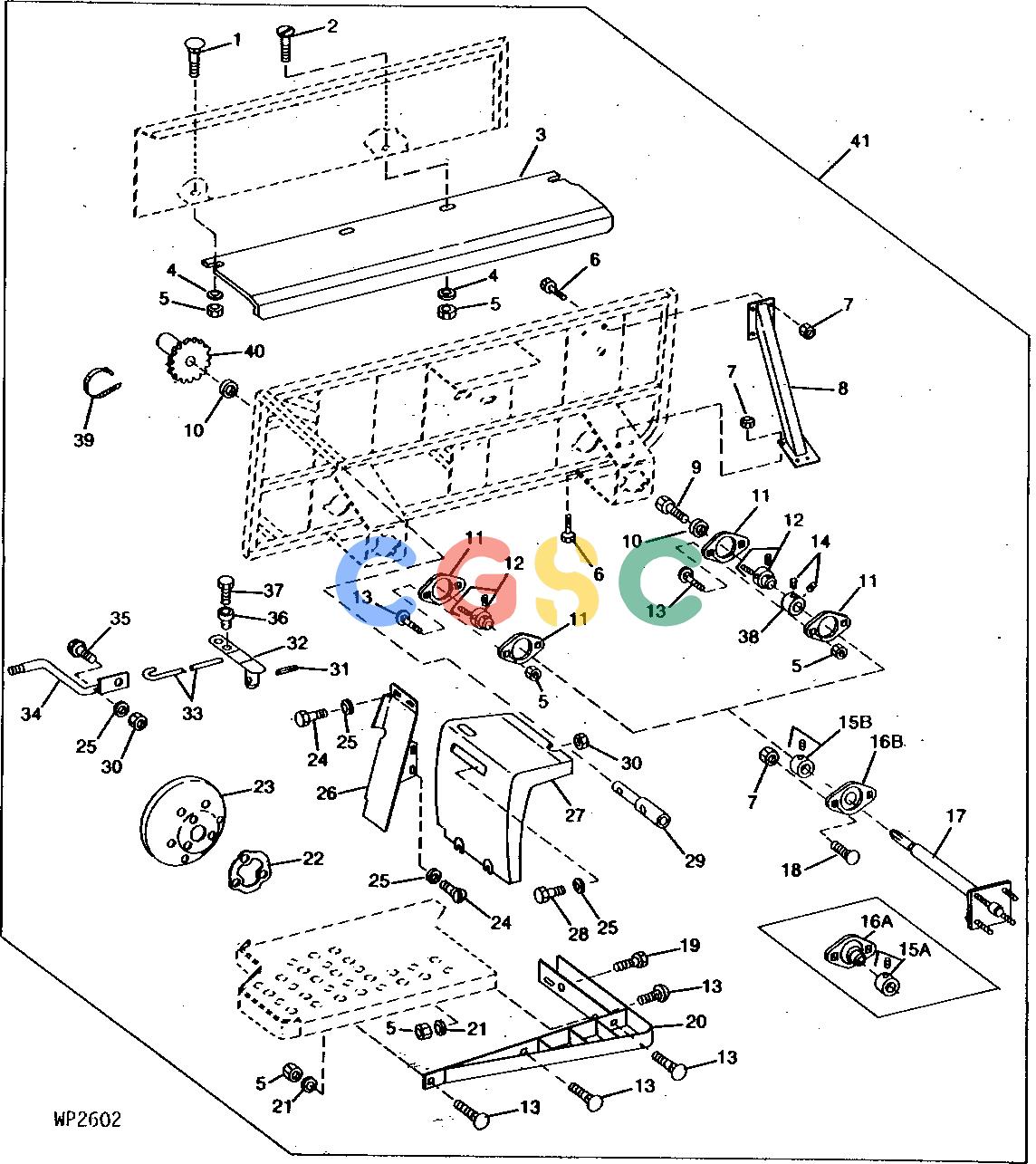

Pos. Part No Qty Parts name Comments
1. 03M7183 [2]   Bolt      M8 X 16
2. 21M7081 [6]   Screw      M8 X 15
3. M96642 [1]   Extension      NLA; RH
3. M96643 [1]   Extension      NLA; LH
4. 24M7207 [8]   Washer      8.400 X 24 X 2 MM
5. 14M7166 [26]   Lock Nut      M8
6. 19M7167 [20]   Cap Screw      M10 X 25
7. 14M7167 [28]   Lock Nut      M10
8. AM108564 [4]   Support
9. R91461 [2]   Cap Screw
10. R91571 [4]   Spacer
11. M66125 [8]   Pressed Flanged Housing
12. JD10419 [4]   Ball Bearing      (SUB AM108591)
13. 03M7184 [18]   Bolt      M8 X 20
14. 22H979 [4]   Set Screw      3/8" X 3/8"
15A. JD8544 [4]   Eccentric Locking Collar      (LOCK COLLAR MOUNTED TO OUTSIDE OF SUPPORT)
15B. JD8544 [4]   Eccentric Locking Collar      (LOCK COLLAR MOUNTED TO INSIDE OF SUPPORT)
16A. AM108565 [4]   Bearing With Housing      (FLUSH MOUNT FLANGETTE/BEARING ASSEMBLY) (LOCK END MOUNTS TO OUTSIDE)
16B. AM108565 [4]   Bearing With Housing      (FLUSH MOUNT FLANGETTE/BEARING ASSEMBLY) (LOCK END MOUNTS TO INSIDE)
17. AM108546 [4]   Axle
18. 03M7191 [8]   Bolt      M10 X 25
19. 37M7464 [2]   Screw      M10 X 20
20. AM108556 [1]   Extension      RH
20. AM108557 [1]   Extension      LH
21. 24H1289 [10]   Washer      21/64" X 5/8" X 0.049"
22. ........ [1]   Lock
23. M95399 [1]   Plate
24. 37H24 [6]   Screw      1/4" X 3/4" NLA
25. 24H1287 [11]   Washer      9/32" X 5/8" X 0.065"
26. M96660 [1]   Panel      RH
26. M96661 [1]   Panel      LH
27. W40558 [1]   Fender      RH
27. W40535 [1]   Fender      LH
28. 19M7374 [4]   Cap Screw      M6 X 40
29. M96653 [2]   Pin
30. 14M7165 [5]   Lock Nut      M6
31. 34H314 [1]   Spring Pin      1/4" X 1-1/4"
32. AW26976 [1]   Lever
33. W39958 [1]   Linkage
34. AM108561 [1]   Lever
35. 19M7160 [1]   Cap Screw      M6 X 30
36. W39957 [1]   Bushing
37. 19M8425 [1]   Cap Screw      M6 X 16
38. R91570 [2]   Ring
39. H77698 [1]   Tie Band      4.7 X 360 MM (0.18" X 14.2")
39. R44302 [4]   Tie Band      4.6 X 171 MM (0.18" X 6.75")
40. AM108569 [2]   Chain Sprocket
41. MPXX108566 [1]   Kit
