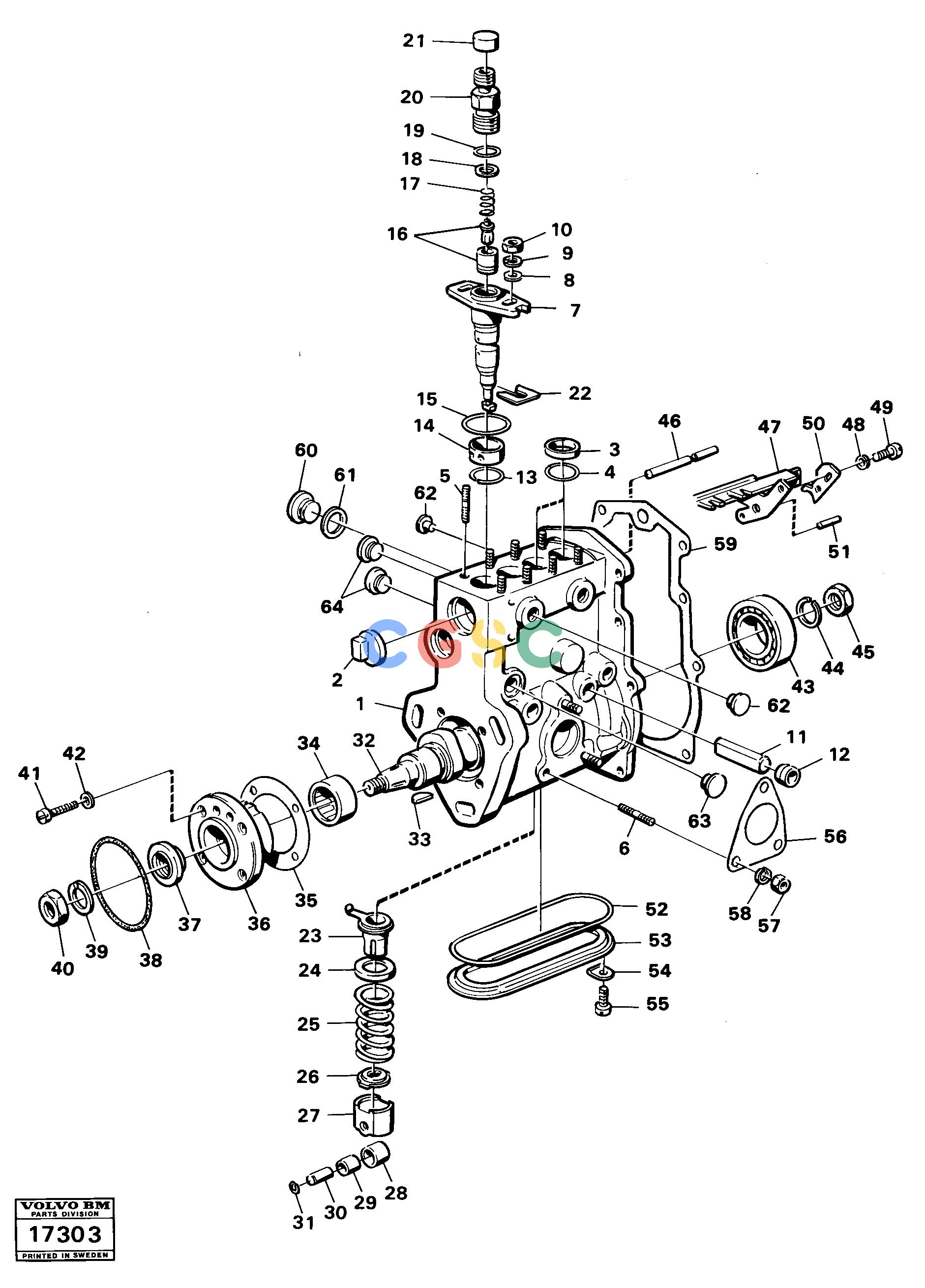

沃尔沃零件查询4300 Fuel injection pump prod no 163074300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE244500
|
[0004] |
O-ring
|
|
| 38. |
VOE1698556
|
[0001] |
O-ring
|
|
| 39. |
VOE941911
|
[0001] |
Spring washer
|
|
| 40. |
VOE955804
|
[0001] |
Hexagon nut
|
|
| 41. |
VOE956093
|
[0004] |
Cross recessed screw
|
|
| 42. |
|
[0004] |
Washer
|
|
| 43. |
VOE11998541
|
[0001] |
Ball bearing
|
|
| 44. |
VOE941915
|
[0001] |
Spring washer
|
|
| 45. |
VOE244527
|
[0001] |
Nut
|
|
| 46. |
VOE6213590
|
[0001] |
Pin
|
|
| 47. |
VOE6212649
|
[0001] |
Control rod
|
|
| 5. |
VOE11998540
|
[0008] |
Stud
|
|
| 48. |
VOE13941906
|
[0002] |
Washer
|
|
| 49. |
VOE956095
|
[0002] |
Cross recessed screw
|
|
| 50. |
VOE244512
|
[0001] |
Stop, Shoulder
|
|
| 51. |
VOE244513
|
[0001] |
Pin
|
|
| 52. |
VOE1698556
|
[0001] |
O-ring
|
|
| 53. |
VOE6213546
|
[0001] |
Cover
|
|
| 54. |
VOE11999936
|
[0004] |
Lock washer
|
|
| 55. |
VOE14014666
|
[0004] |
Screw
|
|
| 56. |
VOE863370
|
[0001] |
Gasket
|
|
| 57. |
VOE13955781
|
[0003] |
Nut
|
|
| 6. |
VOE130673
|
[0003] |
Stud
|
|
| 58. |
VOE13941906
|
[0003] |
Washer
|
|
| 59. |
|
[0001] |
Gasket
|
|
| 60. |
VOE244092
|
[0001] |
Plug
|
|
| 61. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| 62. |
|
[0003] |
Plug
|
|
| 63. |
|
[0001] |
Plug
|
|
| 64. |
|
[0002] |
Plug
|
|
| |
VOE6212665
|
[0001] |
Repair kit
|
|
| 7. |
VOE6213587
|
[0004] |
Pump element
|
|
| 8. |
VOE244060
|
[0008] |
Spacer ring
|
|
| |
|
|
Injcection pump
|
|
| 9. |
VOE13941907
|
[0008] |
Washer
|
|
| 10. |
VOE955782
|
[0008] |
Hexagon nut
|
|
| 11. |
VOE6212655
|
[0002] |
Pin
|
|
| 12. |
VOE11998400
|
[0002] |
Cap
|
|
| 13. |
VOE1698857
|
[0004] |
Lock ring
|
|
| 14. |
VOE6212662
|
[0004] |
Sleeve
|
|
| |
|
[0004] |
Cover
|
|
| 15. |
VOE11997534
|
[0004] |
O-ring
|
|
| 16. |
VOE6212660
|
[0004] |
Valve
|
|
| 17. |
VOE7238309
|
[0004] |
Spring
|
|
| 1. |
|
[0001] |
Housing
|
|
| 18. |
VOE6212663
|
[0004] |
Washer
|
|
| 19. |
VOE6212664
|
[0004] |
O-ring
|
|
| 20. |
VOE6212659
|
[0004] |
Retainer
|
|
| 21. |
|
[0004] |
Plug
|
|
| 22. |
VOE244080
|
[REQ] |
Plate
|
THICK=1.50
|
| |
VOE244081
|
[REQ] |
Plate
|
THICK=1.60
|
| |
VOE244082
|
[REQ] |
Plate
|
THICK=1.70
|
| |
VOE244083
|
[REQ] |
Plate
|
THICK=1.80
|
| |
VOE244084
|
[REQ] |
Plate
|
THICK=1.90
|
| |
VOE244085
|
[REQ] |
Plate
|
THICK=2,00
|
| 2. |
VOE244498
|
[0001] |
Cover
|
|
| |
VOE244086
|
[REQ] |
Plate
|
THICK=2.10
|
| |
VOE244087
|
[REQ] |
Plate
|
THICK=2.20
|
| |
VOE244088
|
[REQ] |
Plate
|
THICK=2.30
|
| |
VOE244089
|
[REQ] |
Plate
|
THICK=2.40
|
| |
VOE244090
|
[REQ] |
Plate
|
THICK=2.50
|
| 23. |
VOE1698693
|
[0004] |
Sleeve
|
|
| 24. |
VOE244514
|
[0004] |
Spring disc
|
|
| 25. |
VOE6213548
|
[0004] |
Spring
|
|
| 26. |
VOE244066
|
[0004] |
Spring disc
|
|
| 27. |
VOE11998507
|
[0004] |
Tappet
|
|
| 3. |
VOE244499
|
[0004] |
Spacer ring
|
|
| 28. |
|
[0004] |
Roller
|
|
| 29. |
|
[0004] |
Bushing
|
|
| 30. |
|
[0004] |
Pin
|
|
| 31. |
|
[0004] |
Lock ring
|
|
| 32. |
VOE6213198
|
[0001] |
Camshaft
|
|
| 33. |
VOE243734
|
[0001] |
Key
|
|
| 34. |
VOE6212651
|
[0001] |
Roller bearing
|
|
| 35. |
VOE863371
|
[0001] |
Gasket
|
|
| 36. |
VOE848736
|
[0001] |
Cover
|
|
| 37. |
VOE6212654
|
[0001] |
Sealing ring
|
|
