约翰迪尔零件查询600 - AMT CARGO BOXEPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览：次

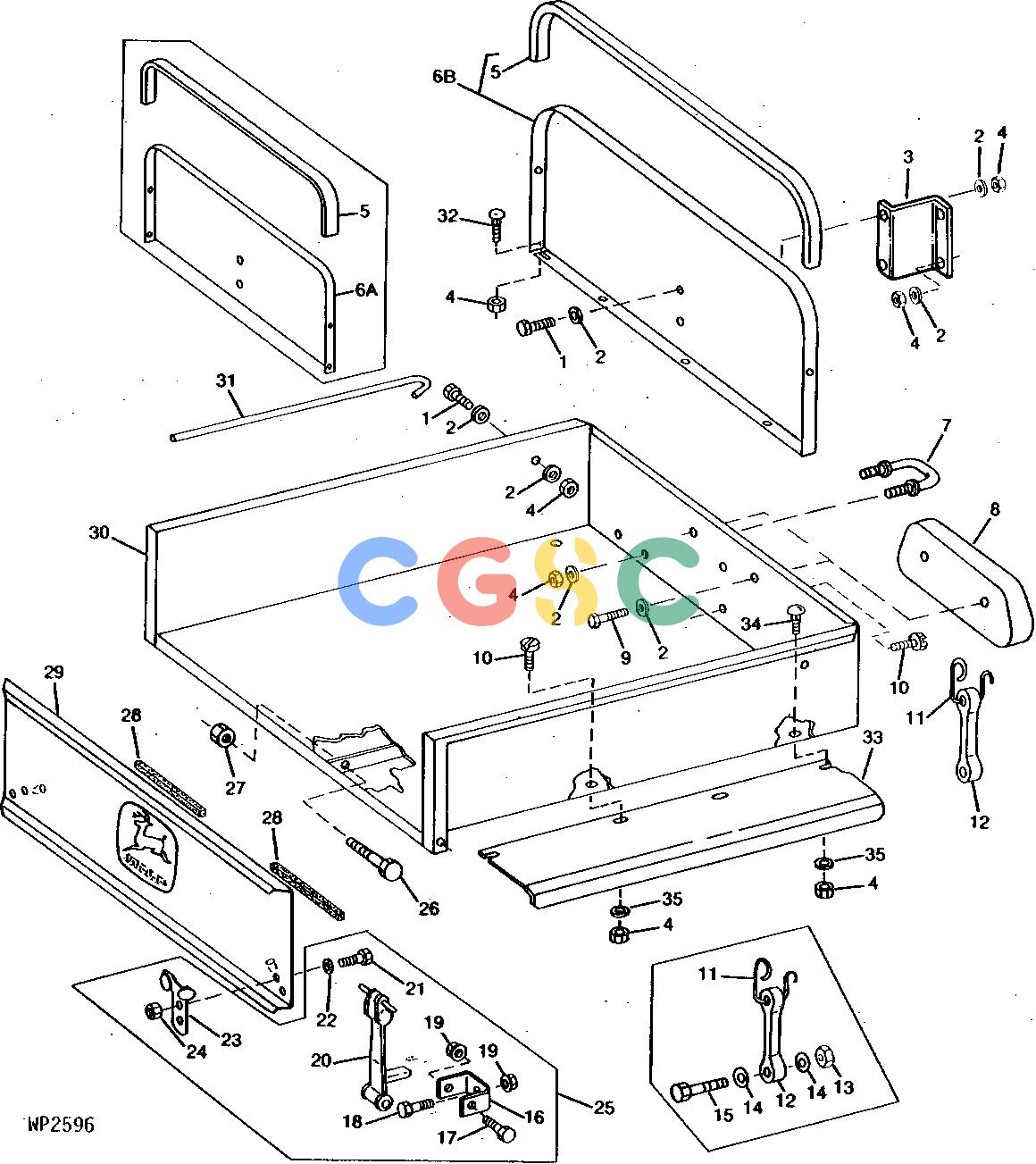

Pos. Part No Qty Parts name Comments
1. 19M7162 [4]   Cap Screw      M8 X 16
2. 24H1289 [16]   Washer      21/64" X 5/8" X 0.049"
3. R87512 [1]   Panel
4. 14M7166 [18]   Lock Nut      M8
5. R88613 [1]   Isolator
6A. R87511 [1]   Panel      (SUB AM108528)
6B. AW26810 [1]   Panel      (SUB AM108528)
6B. AM108528 [1]   Guard      (INCLUDES DECALS)
7. M88237 [1]   Handle      (SUB FOR R91329)
8. RE28061 [1]   Seat Back
9. 19M7881 [2]   Screw      M8 X 20
10. 21M7081 [2]   Screw      M8 X 15
10. 21M7081 [8]   Screw      (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) M8 X 15
11. M89955 [4]   Hook
11. M89955 [2]   Hook
12. R89501 [4]   Strap
12. R89501 [2]   Strap
13. 14M7165 [2]   Lock Nut      M6
14. 24H1287 [4]   Washer      9/32" X 5/8" X 0.065"
15. 19M7547 [2]   Cap Screw      M6 X 55
16. W40748 [1]   Clevis
17. 19M7269 [2]   Cap Screw      M8 X 50
18. 19M7323 [2]   Cap Screw      M8 X 40
19. 14M7166 [4]   Lock Nut      M8
20. AW26935 [2]   Strap
21. 19M7640 [4]   Cap Screw      M5 X 12
22. 24H1721 [4]   Washer      13/64" X 15/32" X 0.049"
23. W35462 [2]   Bracket
24. 14M7360 [4]   Lock Nut      M5
25. AW26961 [1]   Kit      (HEAVY DUTY STRAP KIT) (USE FOR MACHINES -018720 TO REDUCE TAIL GATE RATTLE) (KIT INCLUDES INSTALLATION INSTRUCTION AND PARTS FOR BOTH SIDES OF TAIL GATE)
26. 19M8197 [2]   Cap Screw      M10 X 85
26. 19M7347 [2]   Cap Screw      M10 X 120
27. 14M7167 [2]   Lock Nut      M10
28. ........ [AR]   Foam Pad      (TWO 3-INCH STRIPS CUT FROM RW23240)
29. R87513 [1]   Gate      (SUB AW26743)
29. AW26743 [1]   Gate      (INCLUDES DECALS)
30. RE27111 [1]   Box      (SUB AW27200) (ALSO ORDER (2) 19M7347)
30. AW26742 [1]   Box      (SUB AW27200) (ALSO ORDER (2) 19M7347)
30. AW27200 [1]   Box      (INCLUDES DECALS)
31. R89519 [1]   Rod      (SUB W40248)
31. W40248 [1]   Hook
32. 03M7185 [2]   Bolt      M8 X 25
33. M96642 [1]   Extension      (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) NLA; RH
33. M96643 [1]   Extension      (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) NLA; LH
34. 03M7183 [2]   Bolt      (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) M8 X 16
35. 24M7207 [8]   Washer      (AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) 8.400 X 24 X 2 MM
