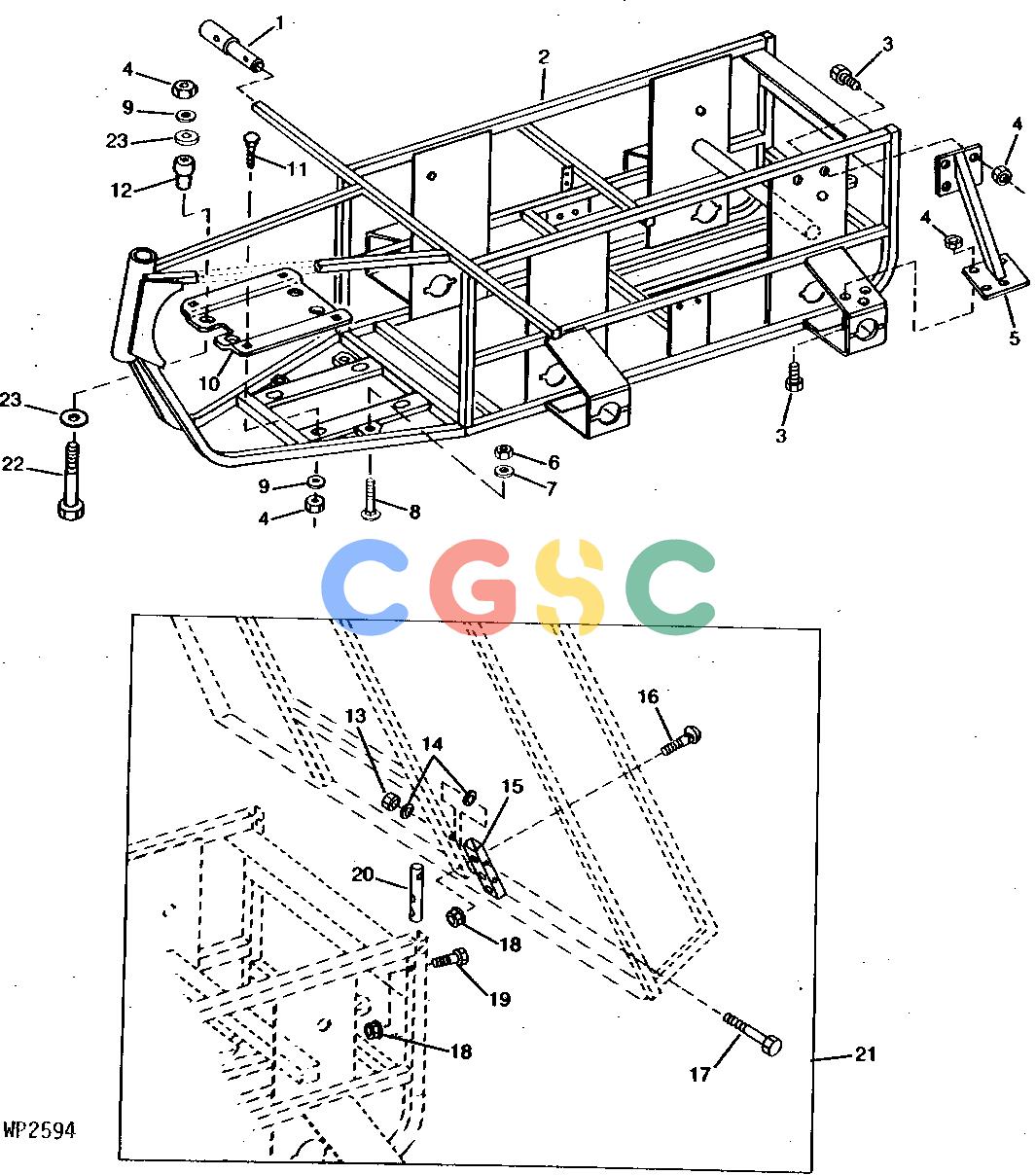

Pos.	Part No	Qty	Parts name	Comments
1.	M96653	[2]	Pin	(AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.)
2.	RE27199	[1]	Main Frame	(SUB AW26685) (ALSO ORDER (2) 19M8197, W39768, W39769 AND W39770)
2.	AW26585	[1]	Main Frame	(SUB AW26685) (ALSO ORDER (2) 19M8197, W39768, W39769 AND W39770)
2.	AW26685	[1]	Main Frame
3.	19M7167	[20]	Cap Screw	M10 X 25
4.	14M7167	[8]	Lock Nut	M10
4.	14M7167	[28]	Lock Nut	(AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.) M10
5.	AM108564	[4]	Support	(AMT WITH 1290 MM (51") CENTER TO CENTER TREAD WIDTH.)
6.	14M7166	[3]	Lock Nut	M8
7.	24H1621	[3]	Washer	11/32" X 1" X 0.220"
8.	03M7184	[3]	Bolt	M8 X 20
9.	24H1884	[8]	Washer	13/32" X 13/16" X 0.120"
10.	RE30447	[1]	Support
11.	03M7191	[4]	Bolt	M10 X 25
12.	R90974	[4]	Isolator
13.	14M7167	[2]	Lock Nut	M10
14.	24M7028	[4]	Washer	10.500 X 20 X 2 MM
15.	........	[2]	Structural Tubing
16.	21M7126	[4]	Bolt	M8 X 35
17.	19M7347	[2]	Cap Screw	M10 X 120
18.	14M7166	[8]	Lock Nut	M8
19.	19M7323	[4]	Cap Screw	M8 X 40
20.	........	[2]	Pin
21.	AM108541	[1]	Kit	(CARGO BOX TO FRAME PIVOT REPAIR)
22.	19M7875	[4]	Cap Screw	M10 X 70
23.	24H1259	[8]	Washer	7/16" X 1-1/2" X 0.065"
