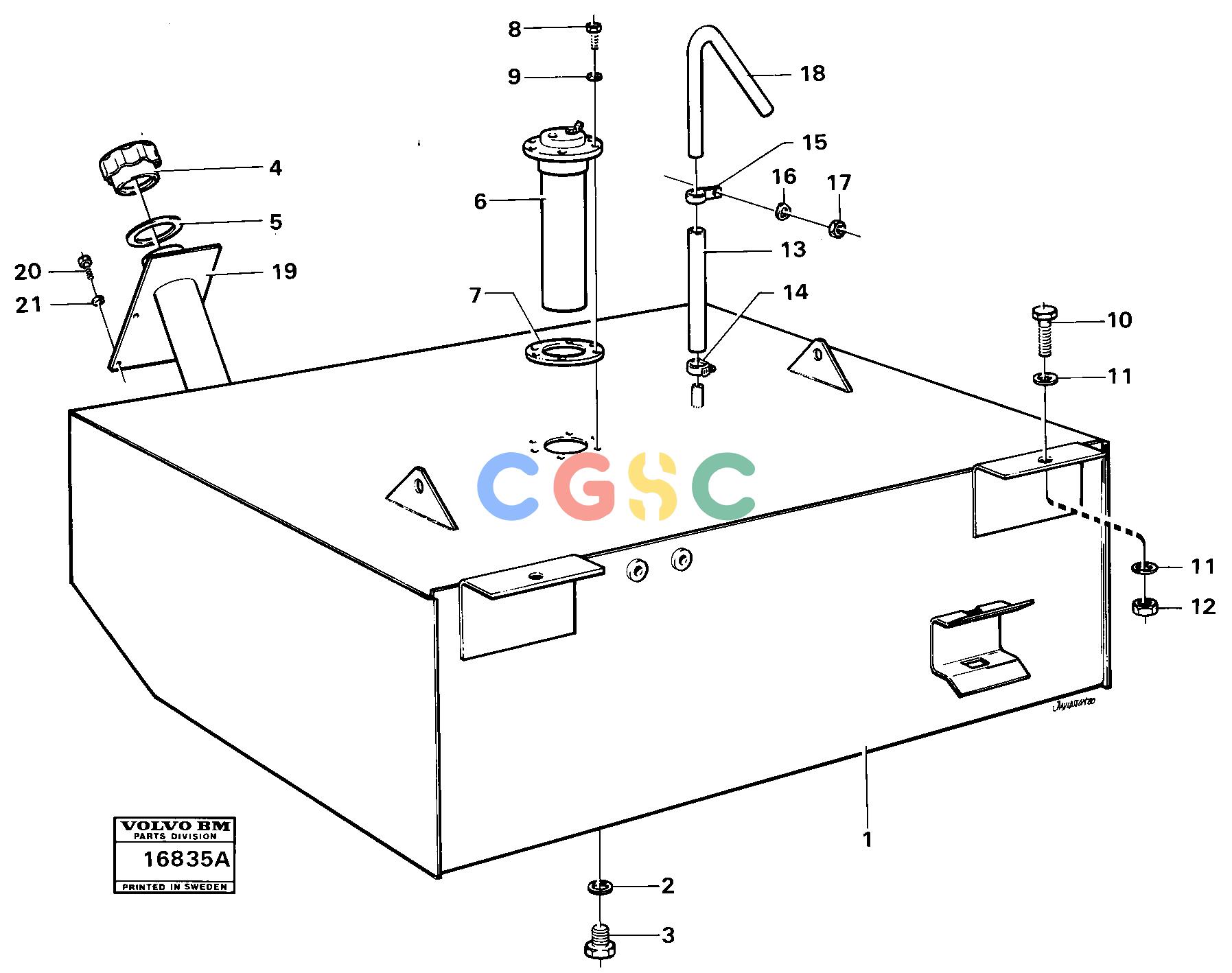

沃尔沃零件查询4300 Fuel tank prod no 33106, 331074300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE1275379
|
[1] |
Gasket
|
|
| 6. |
VOE4740537
|
[1] |
Tank unit
|
|
| 7. |
VOE4708245
|
[1] |
Gasket
|
|
| 8. |
VOE956094
|
[6] |
Cross recessed screw
|
|
| 9. |
VOE957170
|
[6] |
Gasket
|
|
| 1. |
VOE4932280
|
[1] |
Fuel tank
|
|
| 10. |
VOE13970973
|
[4] |
Hexagon screw
|
|
| 11. |
VOE13960145
|
[8] |
Washer
|
|
| 12. |
VOE13971090
|
[4] |
Lock nut
|
|
| 13. |
VOE941507
|
[REQ] |
Hose
|
|
| 14. |
VOE943470
|
[1] |
Hose clamp
|
|
| 15. |
VOE952629
|
[2] |
Clamp
|
|
| 16. |
VOE13941906
|
[2] |
Washer
|
|
| 17. |
VOE13955781
|
[2] |
Nut
|
|
| 18. |
VOE4709589
|
[1] |
Air vent pipe
|
|
| 19. |
VOE4932281
|
[1] |
Rubber cloth
|
|
| 2. |
VOE914392
|
[1] |
Plug
|
|
| 20. |
VOE943617
|
[4] |
Cross recessed screw
|
|
| 21. |
VOE13940090
|
[4] |
Washer
|
|
| 3. |
VOE957184
|
[1] |
Gasket
|
|
| 4. |
VOE421753
|
[1] |
Filler cap
|
|
