约翰迪尔零件查询600 - AMT TRANSAXLE SHAFTSEPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览：次

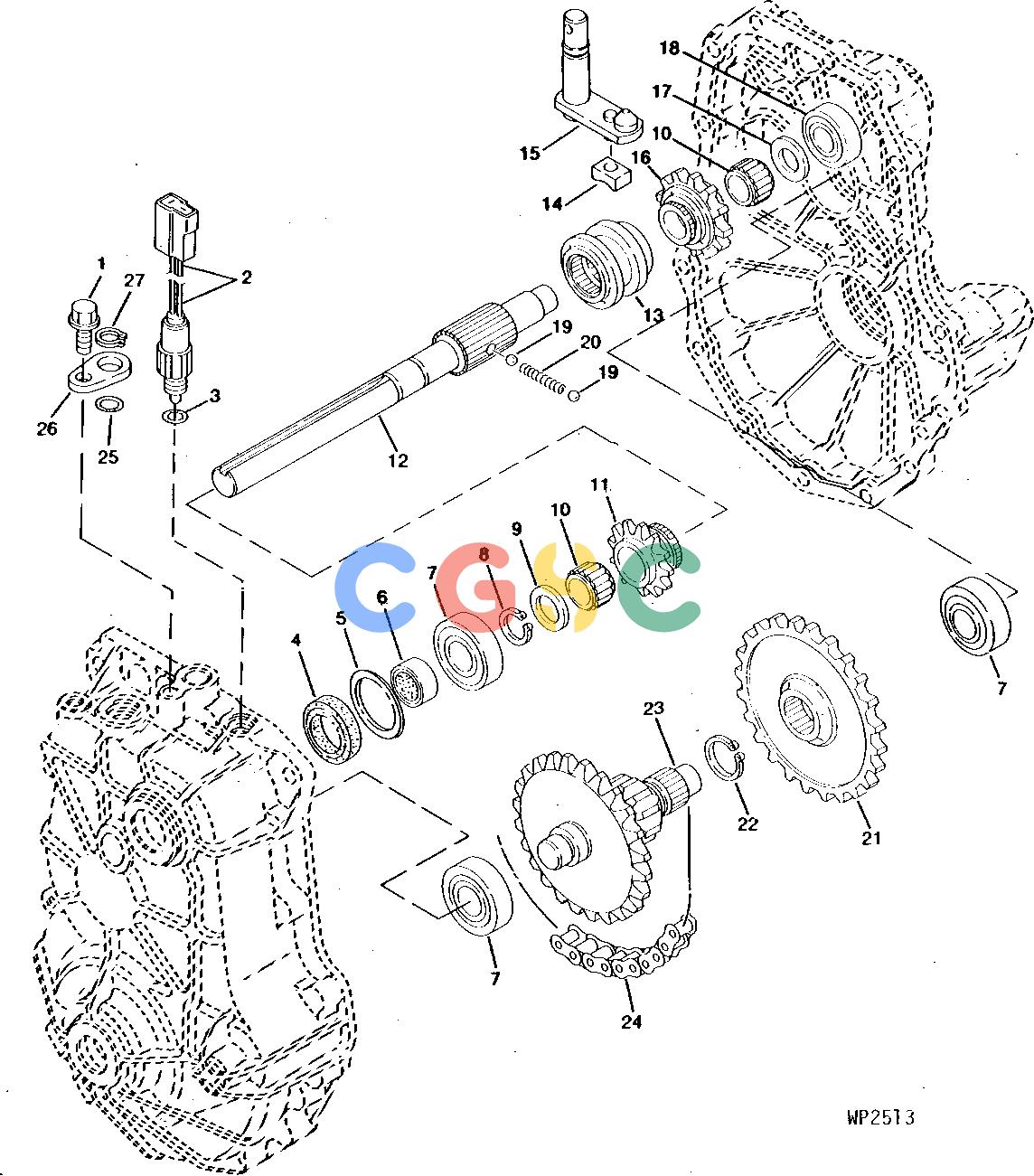

Pos.	Part No	Qty	Parts name	Comments
1.	R91144	[1]	Screw
2.	AM877735	[1]	Switch	(SUB FOR RE28083)
3.	CH14926	[1]	Packing
4.	R92287	[1]	Seal
5.	R92210	[1]	Thrust Washer
6.	R92288	[1]	Sleeve
7.	CH13508	[3]	Ball Bearing
8.	CH16769	[1]	Snap Ring	NLA
9.	M800588	[1]	Washer
10.	R91138	[2]	Needle Bearing
11.	W39685	[1]	Gear	(SUB FOR R91134)
12.	R91132	[1]	Shaft	NLA
13.	R91135	[1]	Bracket
14.	M800565	[1]	Shift Collar
15.	R91142	[1]	Arm	(SUB W39726 AND CH15441)
15.	W39726	[1]	Bracket
16.	W39684	[1]	Gear	(SUB FOR R91133)
17.	M800593	[1]	Washer
18.	M800496	[1]	Ball Bearing	(SUB FOR CH14829)
19.	400R	[2]	Ball	(SUB FOR CH14955)
20.	R91136	[1]	Spring
21.	R91140	[1]	Gear	Z = 49
22.	R91141	[1]	Ring
23.	R91139	[1]	Shaft	Z = 27
24.	RE30527	[1]	Link Chain
25.	CH14926	[1]	Packing
26.	R91143	[1]	Plate
27.	CH15441	[1]	Retainer
...	AM108491	[1]	Transmission	COMPLETE, (SUB FOR RE28536)
