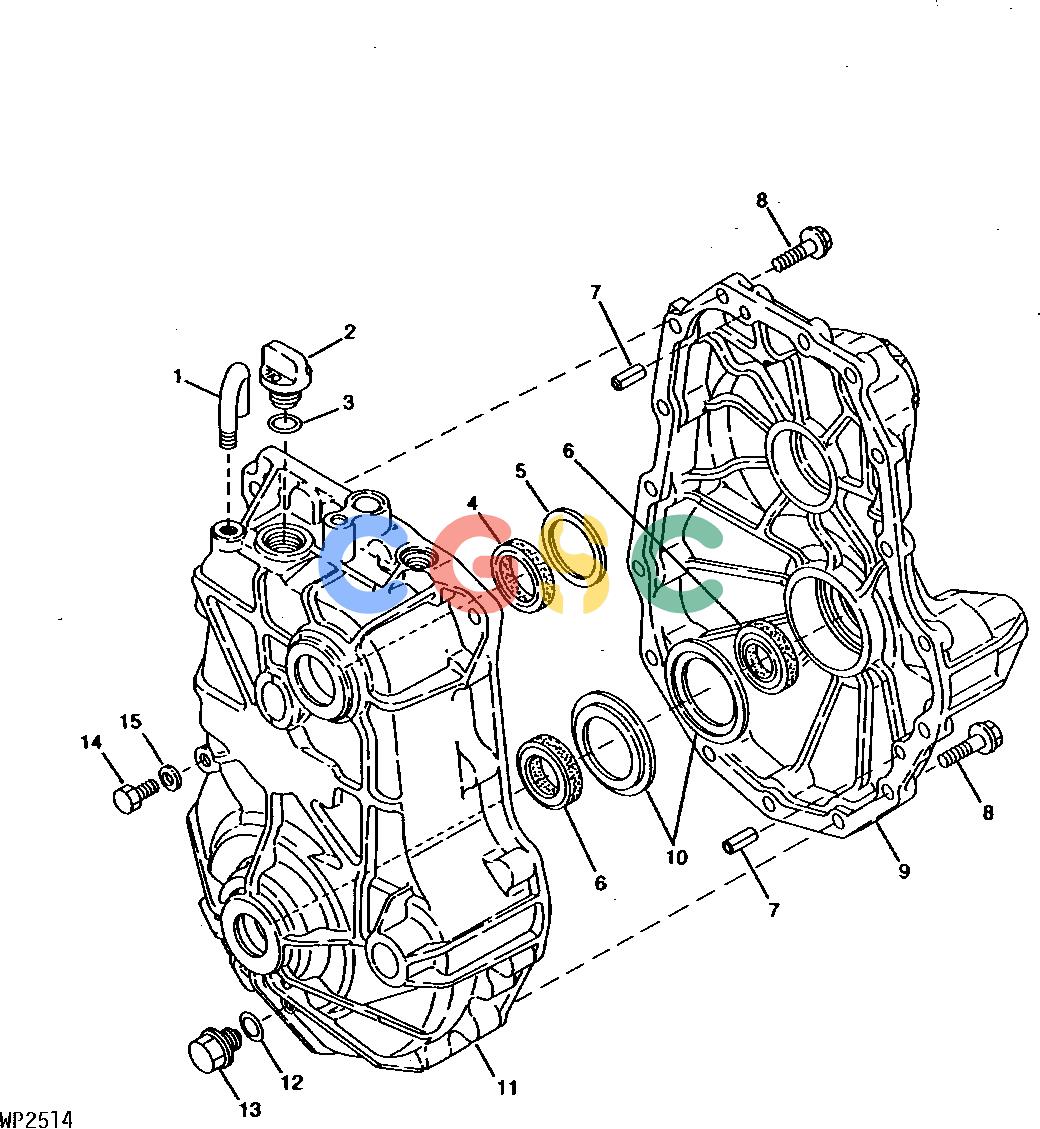

约翰迪尔零件查询600 - AMT TRANSAXLE HOUSINGEPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览：次

Pos.	Part No	Qty	Parts name	Comments
1.	R92209	[1]	Pipe
2.	R91129	[1]	Fitting Plug
3.	CH14634	[1]	O-Ring
4.	R92287	[1]	Seal	25 X 40 X 8 MM
5.	R92210	[1]	Thrust Washer
6.	R91130	[2]	Seal	25 X 42 X 8 MM
7.	CH14656	[2]	Spring Pin
8.	R91159	[16]	Bolt
9.	W40171	[1]	Housing	RH, (SUB FOR R91127) (SUB FOR R92831)
10.	R92211	[2]	Thrust Washer
11.	AM878499	[1]	Housing	LH, (SUB FOR R91126 OR R92830)
12.	CH10570	[1]	O-Ring
13.	CH11414	[1]	Plug
14.	19M7162	[1]	Cap Screw	M8 X 16
15.	M803523	[1]	Washer
...	W40361	[1]	Plug	(USE WITH AM878499)
...	CH11562	[1]	O-Ring	(USE WITH AM878499)
...	TY6299	[1]	Sealant	(UNITED STATES)
...	TY6337	[1]	Sealant	(CANADA)
...	AM108491	[1]	Transmission	COMPLETE, (SUB FOR RE28536)
