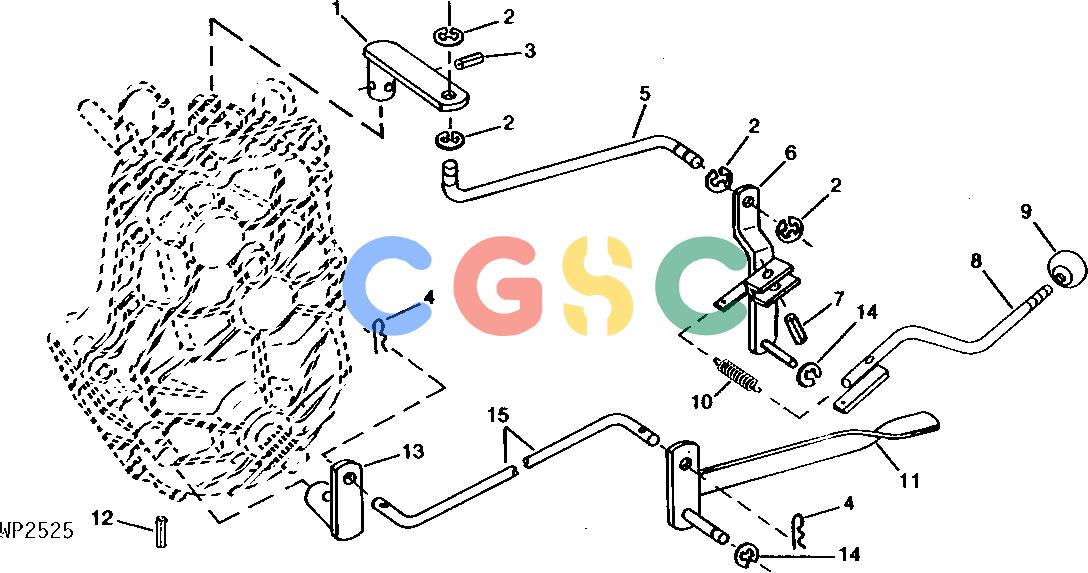

Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
1. | AW26976 | [1] | Lever | (SUB FOR RE28480) |
2. | R72654 | [4] | Snap Ring | |
3. | 34H314 | [1] | Spring Pin | 1/4" X 1-1/4" |
4. | 11M7082 | [2] | Cotter Pin | 2.500 X 25 MM |
5. | R89263 | [1] | Linkage | (SUB AW26976, W39957, W39958 AND 19M7560) |
6. | RE28479 | [1] | Arm | |
7. | 34H314 | [1] | Spring Pin | 1/4" X 1-1/4" |
8. | RE29080 | [1] | Lever | NLA |
9. | AL58296 | [1] | Knob | |
10. | T17443 | [1] | Spring | |
11. | RE28872 | [1] | Pedal | |
12. | 34H331 | [1] | Spring Pin | 5/16" X 1-1/2" |
13. | AW27184 | [1] | Arm | (SUB FOR RE29059 OR AW26788) |
14. | R30437 | [1] | Snap Ring | |
15. | R89684 | [1] | Linkage |
