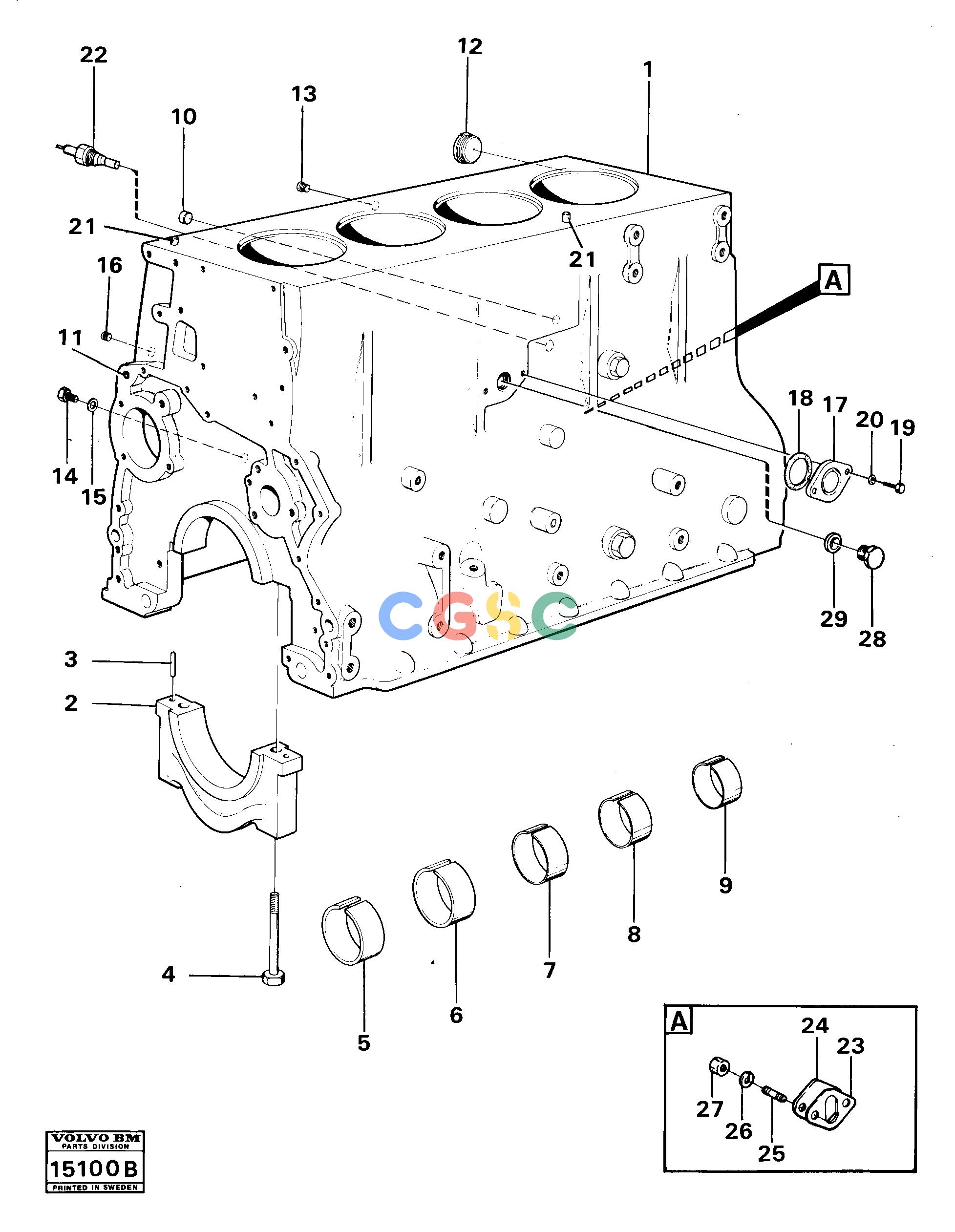

沃尔沃零件查询4300 Cylinder block430016300-16305VOE16300NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE421153
|
[10] |
Screw
|
|
| 5. |
VOE785515
|
[1] |
Bushing
|
|
| 6. |
VOE11000014
|
[1] |
Bushing
|
|
| 7. |
VOE422080
|
[1] |
Bushing
|
|
| 8. |
VOE422081
|
[1] |
Bushing
|
|
| 1. |
VOE787438
|
[1] |
Cylinder Block
|
4, 11) MO - 59882
|
| 9. |
VOE785443
|
[1] |
Bushing
|
|
| 10. |
VOE13967853
|
[5] |
Cap plug
|
MO-59882
|
| |
VOE422369
|
|
Plug
|
MO 59883-
|
| 11. |
VOE955082
|
[3] |
Cap plug
|
|
| 12. |
VOE7070792
|
[3] |
Cap plug
|
|
| 13. |
VOE952358
|
[0001] |
Plug
|
MO-59882
|
| 14. |
VOE7016318
|
[0001] |
Plug
|
|
| 15. |
VOE957173
|
[0001] |
Gasket
|
|
| 16. |
VOE13961130
|
[0001] |
Plug
|
|
| 17. |
VOE785739
|
[0001] |
Cap
|
MO-59882
|
| |
VOE4804591
|
|
Cylinder block
|
MO 59883-
|
| 18. |
VOE11030021
|
[0001] |
Gasket
|
MO-59882
|
| 19. |
VOE955512
|
[0002] |
Hexagon screw
|
MO-59882
|
| 20. |
VOE925737
|
[0002] |
Washer
|
MO-59882
|
| 21. |
VOE785800
|
[0002] |
Pin
|
|
| 22. |
|
[0001] |
Pressure sensor
|
|
| 23. |
VOE11030028
|
[0001] |
Gasket
|
MO 48198-59882
|
| 24. |
VOE7363575
|
[0001] |
Plate
|
MO 48/98-59882
|
| 25. |
VOE953235
|
[0002] |
Stud
|
MO 48198-59882
|
| 26. |
VOE13941907
|
[0002] |
Washer
|
MO 48198-59882
|
| 27. |
VOE955826
|
[0002] |
Hexagon nut
|
MO 48198-59882
|
| 2. |
|
[5] |
Bearing carrier
|
|
| 28. |
VOE4804641
|
|
Plug
|
MO 59883-
|
| 29. |
VOE957193
|
|
Gasket
|
MO 59883-
|
| 3. |
VOE950564
|
[1] |
Pin
|
|
![]()
