纽荷兰零件查询(D45) - DRIVE AXLE, PCG (1/88-) (005) - OSCILLATING AXLE MOUNTING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：次

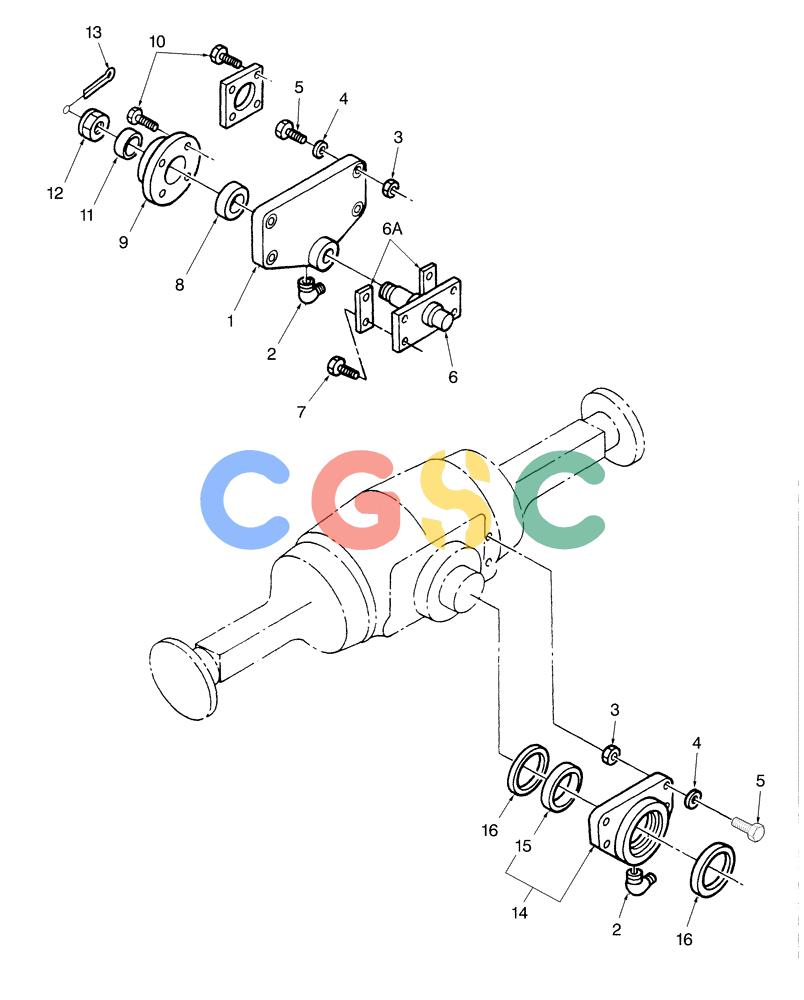

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | D3NN4N147A29Z | [1] | SUPPORT | FORPivot Rear Superseded by part number: 81834052 |
| 2. | 86512947 | [2] | 90 ELBOW,90º, 7/16"-20, 37º x 1/8"-27, NPTF | BHB |
| 3. | 280375 | [8] | NUT,3/4"-10, GC | WINNut, Lock, GC, 3/4"-10 |
| 4. | 86512328 | [8] | WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk | NH |
| 5. | 280128 | [8] | BOLT,Hex, 3/4" - 10 x 3", Gr 8 | FORScrew, Cap, HH, G8, 3/4"-10 x 3" |
| 6. | D8NN4N138AA | [1] | COTTER PIN | FORPin Assy. |
| 6A. | D5NN4N207A | [2] | LOCKING TAB | FORTab, Pivot Pin Bolt Lock |
| 7. | 88725 | [4] | BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd | WIN |
| 8. | D3NN4N132A | [1] | THRUST BEARING,44.45mm ID x 71.44mm OD x 38.89mm W | FORBearing, Thrust |
| 9. | D3NN4N137A29Z | [1] | CAP | FORRear Bearing Superseded by part number: 81834047 |
| 10. | 87670 | [4] | BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5 | NH |
| 11. | D8NN4947AA | [1] | SPACER | FOR Superseded by part number: 83912754 |
| 12. | 385602S2 | [1] | NUT | FOR1-1/2 - 18 |
| 13. | 72153S8 | [1] | PIN | FORSplit Cotter, 7/32" x 2-5/8" |
| 14. | D3NN4N142A29Z | [1] | SUPPORT | FORAssy., Includes: Support & Ref. 15 Superseded by part number: 81834050 |
| 15. | D3NN4N133A | [1] | BRONZE BUSHING,203.35mm ID x 210.59mm OD x 38.3mm L | FORBushing |
| 16. | D3NN4N141B | [2] | SEAL | FORPivot |
