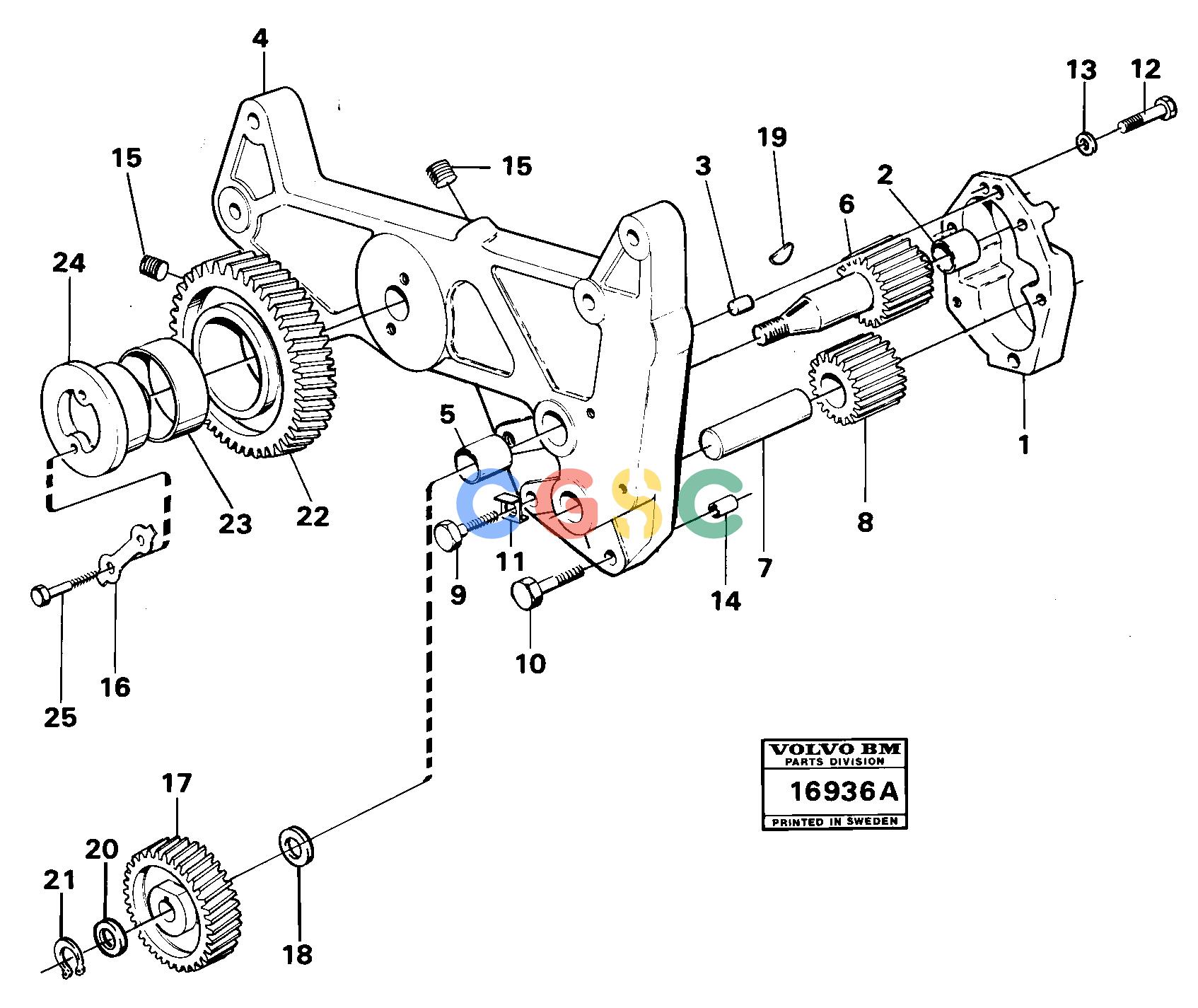

沃尔沃零件查询4200B Oil pump4200B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025,浏览:次

Pos. |
Part No |
Qty |
Parts name |
Comments |
4. |
VOE787598
|
[0001] |
Bracket
|
|
5. |
VOE470234
|
[0002] |
Bushing
|
|
6. |
VOE4804199
|
[0001] |
Axle shaft
|
|
7. |
VOE4804200
|
[0001] |
Shaft
|
|
8. |
|
[0001] |
Gear
|
|
|
VOE4804203
|
[0001] |
Lubricating oil pump
|
|
9. |
VOE955514
|
[0001] |
Hexagon screw
|
|
10. |
VOE955515
|
[0001] |
Hexagon screw
|
|
11. |
VOE921206
|
[0001] |
Lock washer
|
|
12. |
VOE955516
|
[0004] |
Hexagon screw
|
|
13. |
VOE13941906
|
[0004] |
Washer
|
|
14. |
VOE787235
|
[0001] |
Spring pin
|
|
15. |
VOE191142
|
[0002] |
Plug
|
|
16. |
VOE7015024
|
[0001] |
Lock washer
|
|
17. |
VOE4804202
|
[0001] |
Drive Gear
|
|
18. |
VOE424133
|
[0001] |
Thrust washer
|
|
1. |
VOE4804196
|
[0001] |
Oil pump housing
|
|
19. |
VOE910115
|
[0001] |
Woodruff key
|
|
20. |
VOE926147
|
[0001] |
Support washer
|
|
21. |
VOE914450
|
[0001] |
Snap ring
|
|
22. |
VOE787297
|
[0001] |
Idler gear
|
|
23. |
VOE785775
|
[0001] |
Bushing
|
|
24. |
VOE785519
|
[0001] |
Pivot pin
|
|
25. |
VOE940161
|
[0002] |
Hexagon screw
|
|
2. |
VOE470234
|
[0002] |
Bushing
|
|
3. |
VOE918145
|
[0001] |
Pin
|
|
