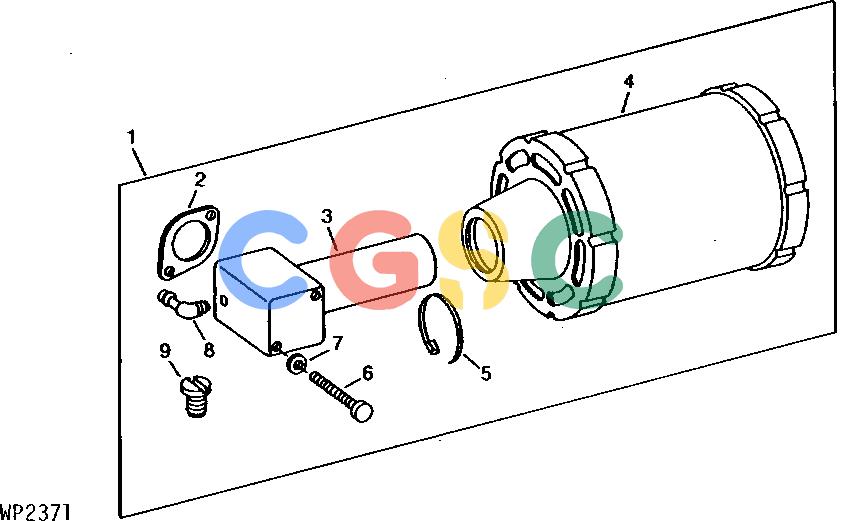

Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
1. | AW26811 | [1] | Air Cleaner Kit | (SUB AW27239) |
2. | M121559 | [1] | Gasket | (SUB FOR W40247) |
3. | AW26850 | [1] | Air Intake | |
4. | AW26796 | [1] | Air Cleaner | |
5. | TY22467 | [1] | Clamp | (SUB FOR AR21839) |
6. | 19M7547 | [2] | Cap Screw | M6 X 55 |
7. | 24M7054 | [2] | Washer | 6.400 X 12 X 1.600 MM |
8. | E48497 | [1] | Hose Fitting | |
9. | M95364 | [1] | Jet | (HEAVY DUTY AIR CLEANER REQUIRES REPLACING MAIN JET IN CARBURETOR) (SUB FOR R92704) |
9. | W40588 | [1] | Jet | (FOR MACHINES OPERATED ABOVE 7500 FT. ELEVATION) (NOT INCLUDED IN KIT, ORDER SEPARATELY) |
