约翰迪尔零件查询600 - AMT CARBURETOREPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览：次

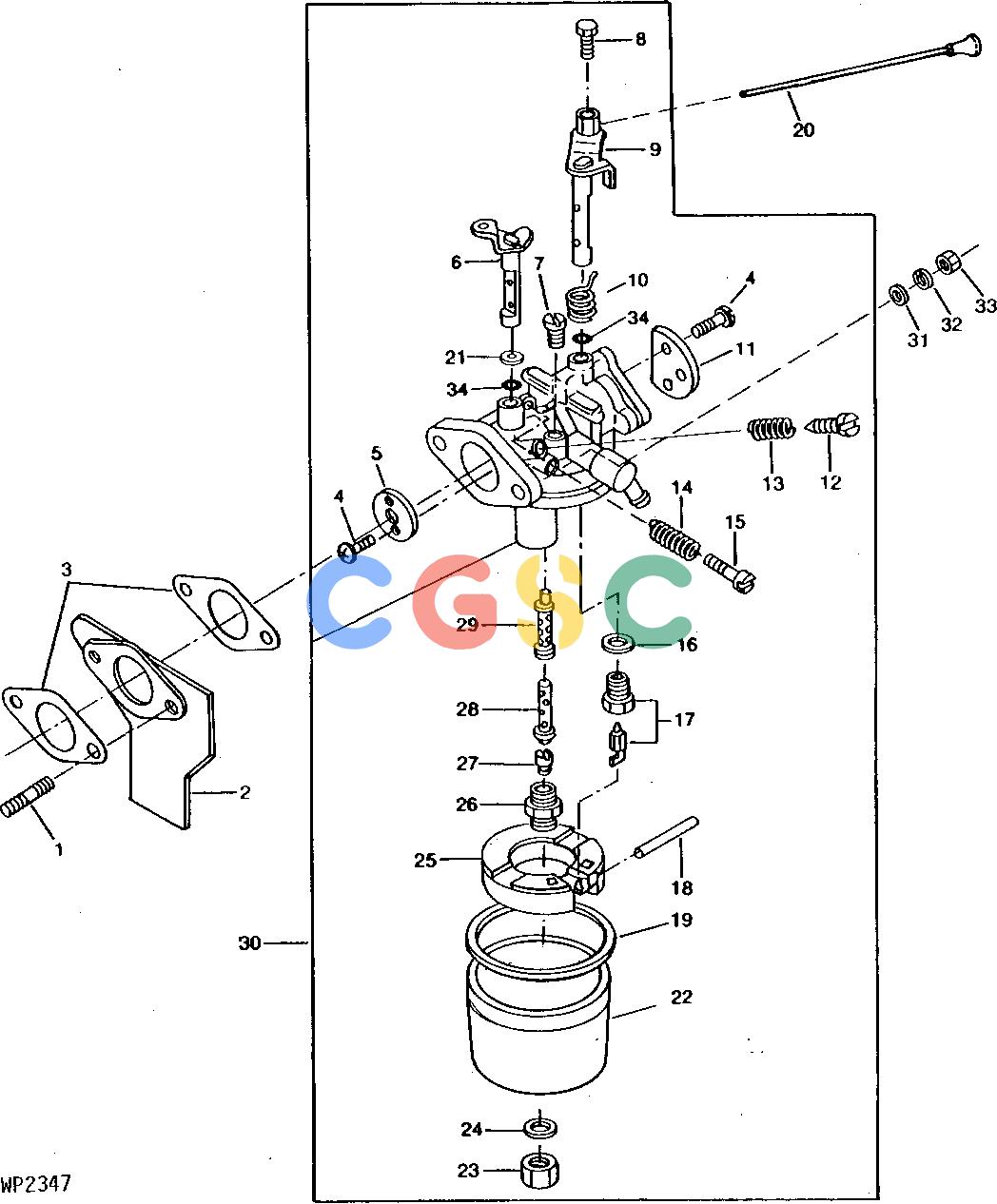

Pos.	Part No	Qty	Parts name	Comments
1.	PT13880	[2]	Stud
2.	PT14024	[1]	Insulator	NLA
3.	M121549	[2]	Gasket	(SUB FOR PT14025)
4.	21M7268	[4]	Screw	M3 X 6
5.	PT12127	[1]	Valve	THROTTLE
6.	PT14022	[1]	Shaft	THROTTLE
7.	M126416	[1]	Jet	PILOT, (SUB FOR PT12009)
8.	PT14034	[1]	Bolt
9.	M95150	[1]	Shaft	CHOKE, (SUB FOR R91262)
10.	R91264	[1]	Spring
11.	PT14018	[1]	Valve	CHOKE
12.	M71955	[1]	Screw	IDLE
13.	M88544	[1]	Compression Spring
14.	M88544	[1]	Compression Spring
15.	21M7250	[1]	Screw	M4 X 12 SPEED ADJUSTING
16.	PT14038	[1]	Gasket
17.	R91441	[1]	Valve	(ORDER AM108381)
18.	PT14039	[1]	Pin
19.	PT14040	[1]	Gasket	NLA; ORDER AM108381
20.	RE30389	[1]	Choke
21.	M88551	[1]	Seal
22.	PT14021	[1]	Chamber
23.	M78962	[1]	Nut	(SUB FOR PT14027)
24.	PT13890	[1]	Gasket	(NLA)
25.	PT14020	[1]	Float
26.	PT14023	[1]	Holder
27.	R91267	[1]	Jet	(TO 3500 FT.) MAIN (NO. 92.5)
27.	R92704	[1]	Jet	(3500-7500 FT.) MAIN (NO. 90) (USED WITH HEAVY DUTY AIR CLEANER) (SUB M95364)
27.	PT13906	[1]	Jet	(ABOVE 7500 FT.) MAIN (NO. 87.5)
27.	W40588	[1]	Jet	MAIN (USED WITH HEAVY DUTY AIR CLEANER ATTACHMENT ABOVE 7500 FT.)
28.	PT9970	[1]	Pipe	NLA; ORDER AM108381
29.	PT14030	[1]	Nozzle
30.	AM108381	[1]	Carburetor	(CARBURETOR IDENTIFICATION NUMBER IS STAMPED BETWEEN THROTTLE SHAFT AND MOUNTING FLANGE.) SUB FOR RE30566 AND PT12127
31.	24M7088	[2]	Washer	6.600 X 12 X 1.600 MM
32.	12H302	[2]	Lock Washer	1/4"
33.	14M7272	[2]	Nut	M6
34.	M95149	[2]	Seal	(CARBURETOR IDENTIFICATION NUMBER IS STAMPED BETWEEN THROTTLE SHAFT AND MOUNTING FLANGE.) (USE WITH AM108381)
