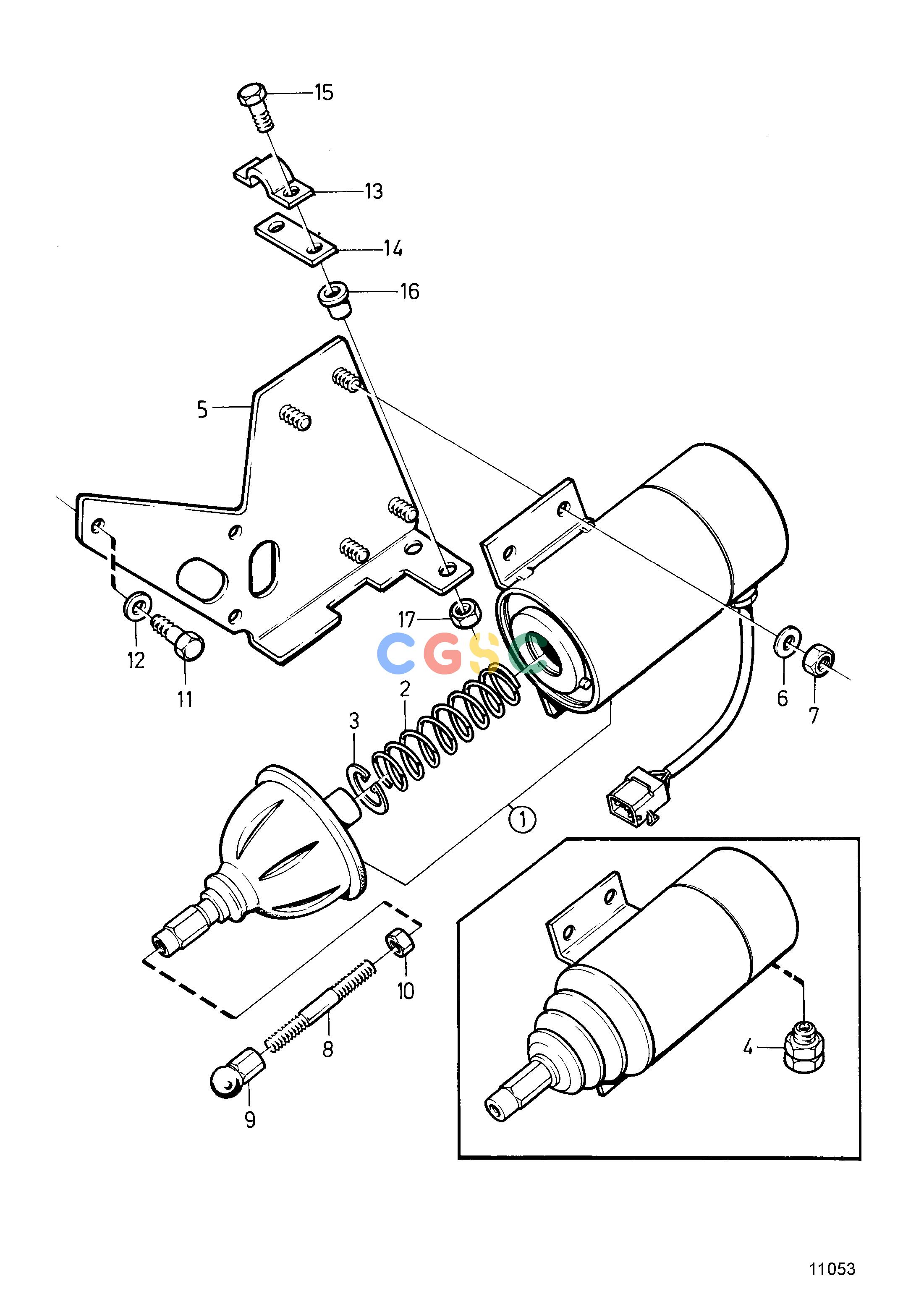

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TControlsStop Solenoid: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025,浏览:次

Pos. |
Part No |
Qty |
Parts name |
Comments |
1. |
|
|
|
24V, earlier prod,
|
1. |
888468
|
[1] |
Actuator solenoid
|
24V (876276)
|
2. |
847009
|
[1] |
Return spring
|
|
4. |
881191
|
[1] |
Grommet
|
Early type
|
5. |
858466
|
[1] |
Bracket
|
|
6. |
955892
|
[4] |
Washer
|
|
7. |
955781
|
[4] |
Hexagon nut
|
|
8. |
949640
|
[1] |
Control rod
|
|
9. |
959090
|
[1] |
Ball socket
|
|
10. |
955782
|
[1] |
Hexagon nut
|
|
11. |
955273
|
[3] |
Hexagon screw
|
|
12. |
949607
|
[3] |
Spring washer
|
|
13. |
21471054
|
[1] |
Bracket
|
|
14. |
819068
|
[1] |
Washer
|
|
15. |
956081
|
[2] |
Cross recessed screw
|
|
16. |
843108
|
[2] |
Bushing
|
|
17. |
949874
|
[2] |
Flange lock nut
|
|
