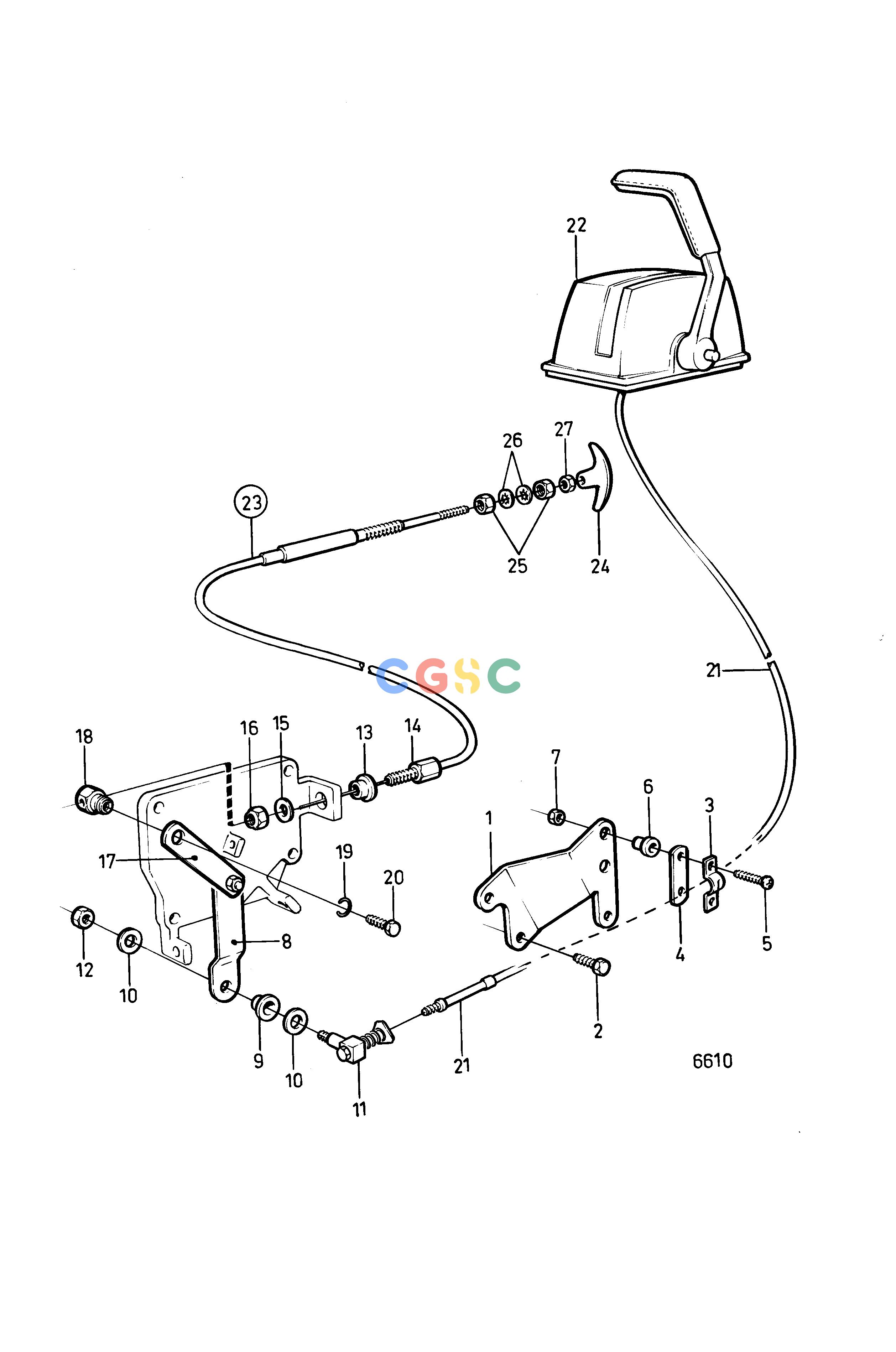

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TControlsEngine Speed Control and Stop ControlEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
840479
|
[1] |
Bracket
|
|
| 2. |
970945
|
[2] |
Hexagon screw
|
(955315) see group 2A
|
| 3. |
21471054
|
[1] |
Bracket
|
|
| 4. |
819068
|
[1] |
Washer
|
|
| 5. |
956081
|
[2] |
Cross recessed screw
|
|
| 6. |
843108
|
[2] |
Bushing
|
|
| 7. |
949874
|
[2] |
Flange lock nut
|
|
| 8. |
840666
|
[1] |
Intermediate lever
|
|
| 9. |
843109
|
[1] |
Bushing
|
|
| 10. |
843105
|
[2] |
Spacer washer
|
|
| 11. |
840692
|
[1] |
Cube
|
|
| 12. |
949874
|
[1] |
Flange lock nut
|
|
| 13. |
843109
|
[1] |
Bushing
|
|
| 14. |
829070
|
[1] |
Cable lock
|
|
| 15. |
955894
|
[1] |
Washer
|
|
| 16. |
950353
|
[1] |
Lock nut
|
|
| 17. |
840667
|
[1] |
Intermediate lever
|
|
| 18. |
840473
|
[1] |
Nipple
|
|
| 19. |
951669
|
[1] |
E-circlip
|
|
| 20. |
969405
|
[1] |
Six point socket scr
|
|
| 21. |
|
|
|
See group 9
|
| 22. |
|
|
|
See group 9
|
| 23. |
818478
|
[1] |
Push pull control
|
Alt, L=3300mm
|
| 23. |
818470
|
[1] |
Push pull control
|
Alt, L=6900mm
|
| 24. |
829241
|
[1] |
Handle
|
|
| 25. |
955857
|
[2] |
Hexagon nut
|
|
| 26. |
955950
|
[2] |
Toothed washer
|
|
| 27. |
955844
|
[1] |
Hexagon nut
|
|
