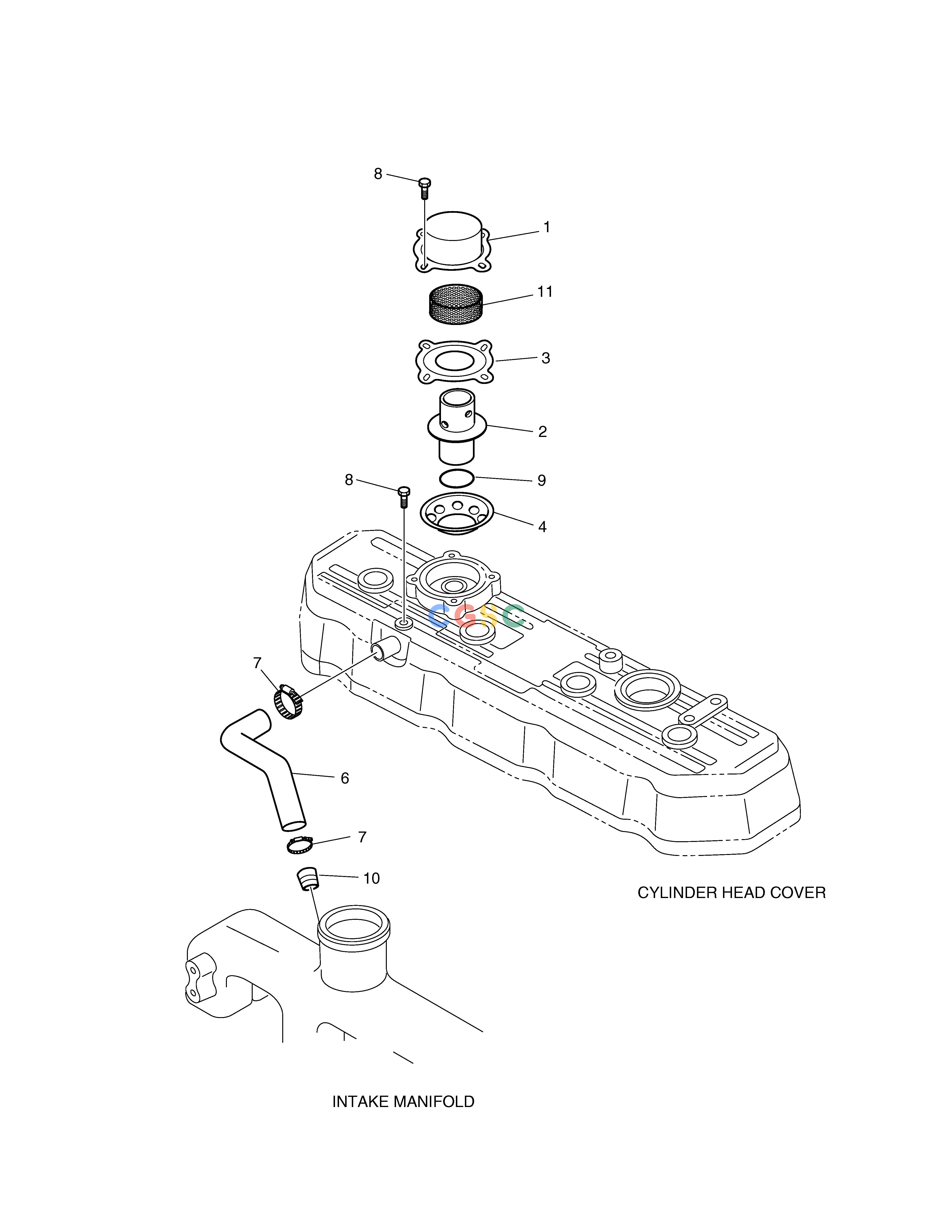

Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
-. | K1019157 | [-] | BREATHER ASS'Y | |
1. | K1019158 | [1] | COVER;BREATHER | |
10. | K1019166 | [2] | TUBE;BREATHER | |
11. | K1019167 | [1] | BAFFLE;BREATHER | |
2. | K1019159 | [1] | VALVE;PRESSURE RELIEF | |
3. | K1019160 | [1] | GASKET;BREATHER | |
4. | K1019161 | [1] | PLATE;VALVE GASKET | |
6. | K1019162 | [1] | HOSE | |
7. | K1019163 | [2] | CLAMP | |
8. | K1019164 | [4] | SCREW | |
9. | K1019165 | [1] | SEAL;O-RING |
